TYC FPPC 300/9 Milling Machine

Show in original language

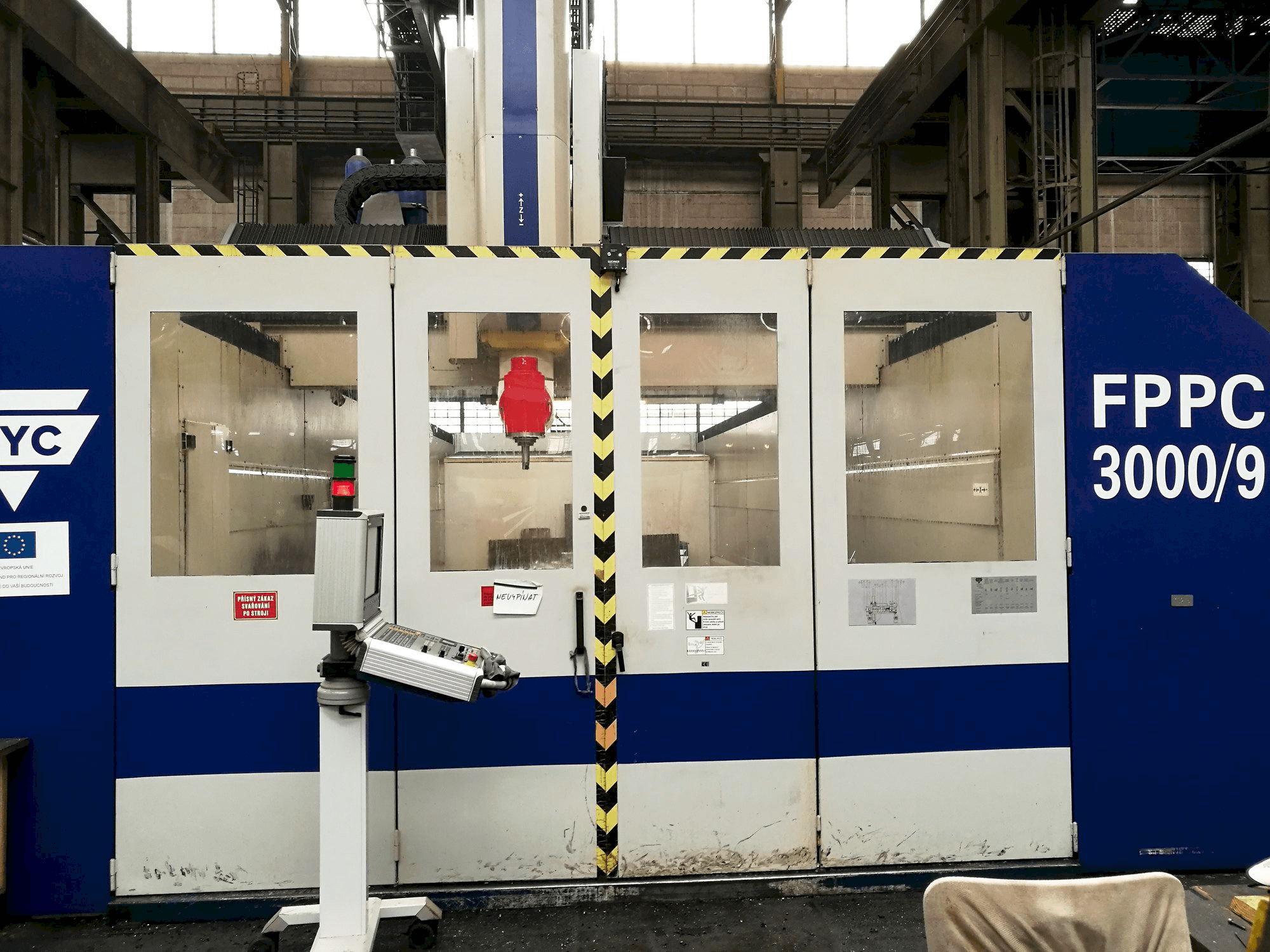

This TYC FPPC 300/9 Milling Machine was manufactured in Czech Republic in the year 2009 and completely retrofitted in 2020. It is equipped with a Heidenhain iTNC 530 HSCI control unit. This machine can operate with a spindle speed up to 5000 rpm. It includes several additional equipment upon request. This machine comes with a 6 months warranty.

Overview

brand: TYC
year: 2009
MODEL: FPPC 3000/9
application type: Other Plastic Processing Machinery
Location: Czech Republic
machine type: Compression Moulding Press
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - TYC FPPC 3000/9

Control Unit

Model: iTNC 530 HSCI
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 5000 1/MIN
Spindle motor power: 30 kW

Movement

X-AXIS Movement: 9000 mm
Y-AXIS Movement: 3000 mm
Z-AXIS Movement: 1500 mm

Table

Outer length: 9300 mm
Outer width: 3200 mm

Tools

Slots in storage: 60
Type of tool holder: ISO 50

Additional Equipment

- Tool touch probe Renishaw TS 27R
- Component touch probe Renishaw RMP 60
- AUTOMATIC HEAD EXCHANGE (IF REQUESTED, extra charge)
- NEW CONTROL HEIDENHAIN TNC 640 (if requested, extra charge)
- NEW HEAD HFE-16/130 (CONTINUOS CONTROLLED WITH ELECTRO SPINDLE: 16000 OT/MIN, 35 KW, 130 NM, TAPER HSK-A63 (if requested, extra charge)
- NEW ATC WITH 40 POSITIONS HSK-A63 (if requested, extra charge)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Indexing milling head hfm-5/800
- - Cooling through spindle axis 20 bar
Qualitative Machine Benefits:
- - Retrofitted machine in 2020 - completely new electrics, all mechanical parts checked, worn-out parts replaced.
- - Warranty 6 months
- - Can be equipped with automatic head exchange if requested
- - Can be equipped with new control heidenhain tnc 640
- - Can be equipped with new head hfe-16/130 (continuos controlled with electro spindle: 16000 ot/min, 35 kw, 130 nm, taper hsk-a63
- - Can be equipped with new atc with 40 positions hsk-a63

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
