Products
Plastics Processing Machinery

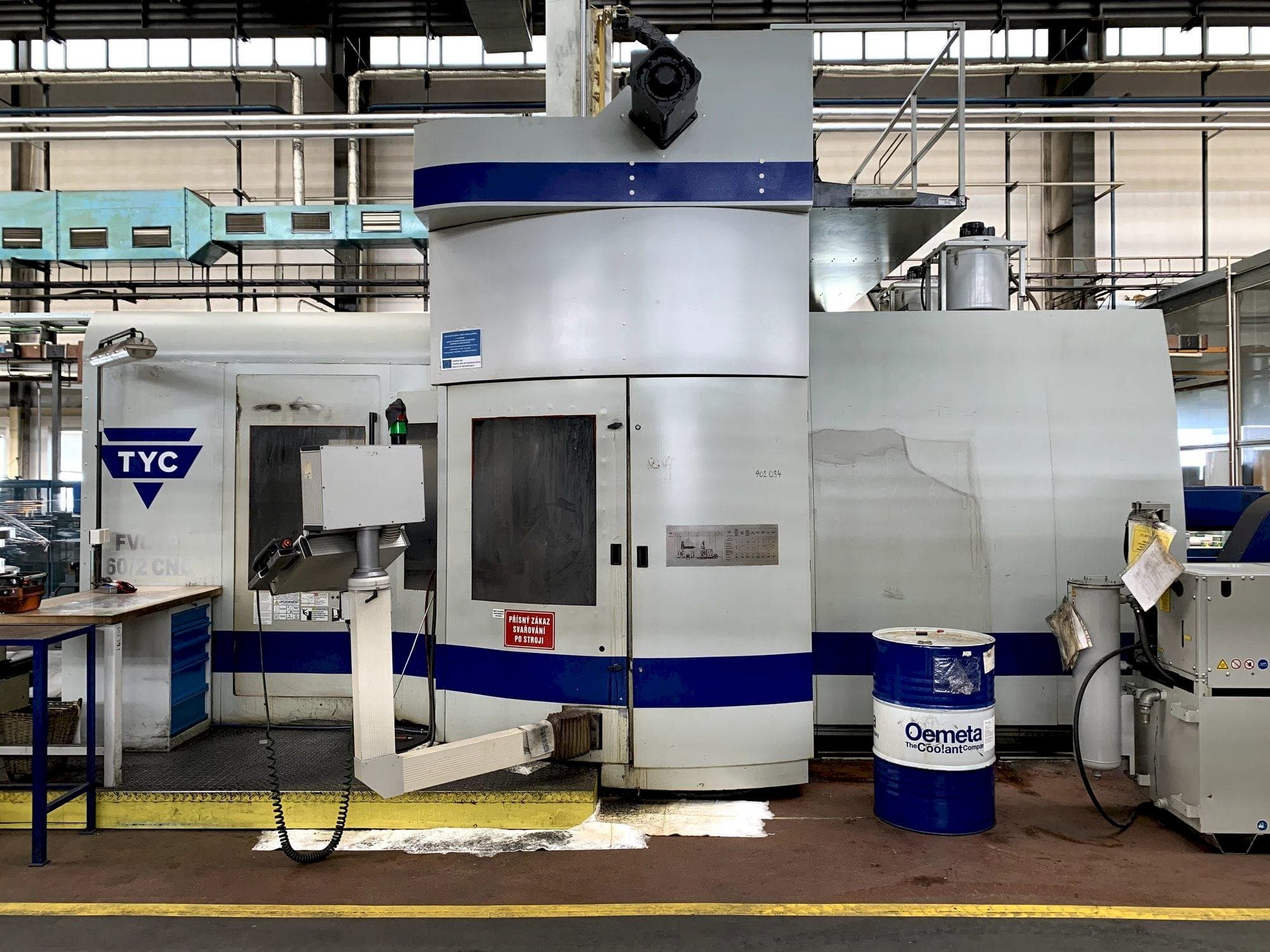

TYC FVCTP 160/2 Measuring Machine

Show in original language

This TYC FVCTP 160/2 Measuring Machine was manufactured in the Czech Republic in the year 2013. It is equipped with a SIEMENS Sinumerik 840D control unit. This 5-axis machine can operate with a spindle speed up to 10000 rpm. It includes the machine manual and it is in very good condition.

Overview

brand: TYC
year: 2013
MODEL: FVCTP 160/2
application type: Injection Moulding
Location: Czech Republic
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TYC FVCTP 160/2

General Data

Measurements width: 10000 mm
Measurements depth: 5500 mm
Measurements height: 6000 mm
Machine weight: 38000 kg

Control Unit

Model: Sinumerik 840D
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 2425 mm
Z-AXIS Movement: 1000 mm

Workpiece

Workpiece weight: 3000 kg

Tools

Slots in storage: 100
Max weight: 20 kg
Max tool diameter: 240/125 mm
Max tool length: 350 mm
Type of tool holder: HSK-T100

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table diameter 1200 mm
- - Table rotation 400 rpm
- - Spindle motor power 40 kw, torque 175 nm
- - Work feed (x,y,z) 15. 000 mm/min
- - Fast feed (x/y/z) 15/20/20 m/min
- - Includes machine manual
- - Cooling through spindle
- - C axis (head)
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
