Supertec G25P-500CNC Grinding machine

Show in original language

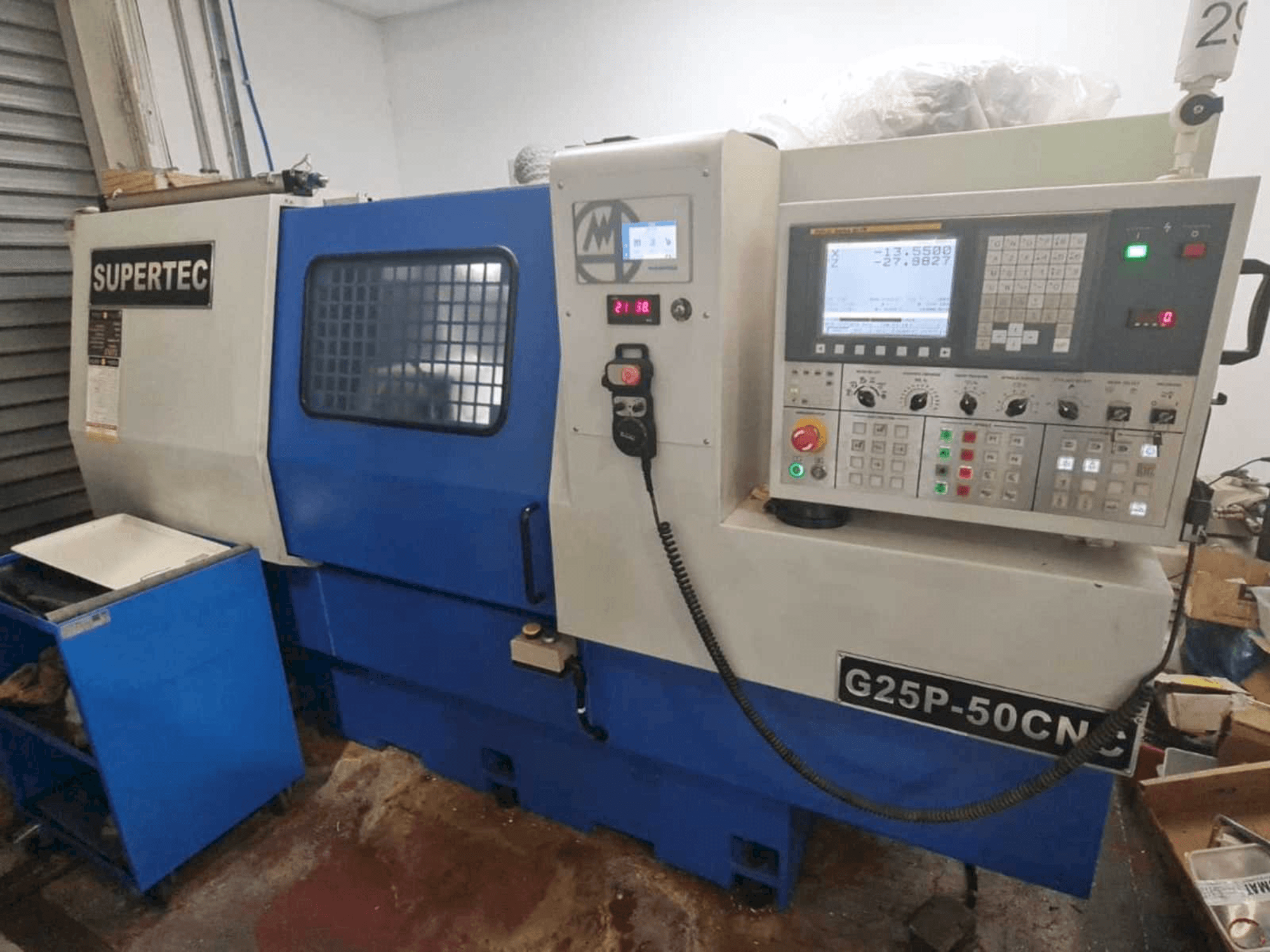

This Supertec G25P-500CNC Grinding machine was manufactured in the year 2017 in Taiwan. It is equipped with a Fanuc CNC Controller 0i-TF control unit. The machine has a spindle speed of 50 to 500 rpm. CE conformity.

Overview

brand: Supertec
year: 2017
MODEL: G25P-500CNC
application type: Grinding
Location: Israel
machine type: Cylindrical Grinding Machine
availability: Sold
control unit brand: FANUC

Technical Information - Supertec G25P-500CNC

General Data

Measurements width: 2250 mm
Measurements depth: 2970 mm
Measurements height: 2250 mm
Machine weight: 3500 kg

Control Unit

Model: CNC Controller 0i-TF
Brand: FANUC

Main drive

Spindle speed range: 50-500 1/MIN

Additional Equipment

- CE conformity
- pneumatic putter included

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over table: 250 mm
- - Distance between centers: 500 mm
- - Max. Grinding diameter: 250 mm
- - Diameter x width x bore: 405x50x127 mm
- - Max. Increment speed : 4 (m/min)
- - Spindle type: fixed and rotatory
- - Wheel (x-axis) motor kw(fanuc : 1. 2 kw
- - Wheel (z-axis) motor kw(fanuc):
- - Wheel extractor
- - Automatic wheel speed changed (multiple steps)
Qualitative Machine Benefits:
- - Infinite variable speed workhead (mt#3)
- - Hydraulic tailstock (mt#3)
- - Semi-enclosure splash guard
- - Roller type balancing stand w/arbor
- - Diamond dresser and stand
- - Coolant system w/magnetic separator & paper filter (60l/min,140l) • carbide tip center (mt#3 x 2)
- - Electricity cabinet w/heat exchanger
- - Leveling bolts and blocks
- - Tools & tool box + working lamp

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
