VOLLMER - CP 200PL-GRI-VOL-2013-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used VOLLMER CP 200 For Sale | gindumac.com

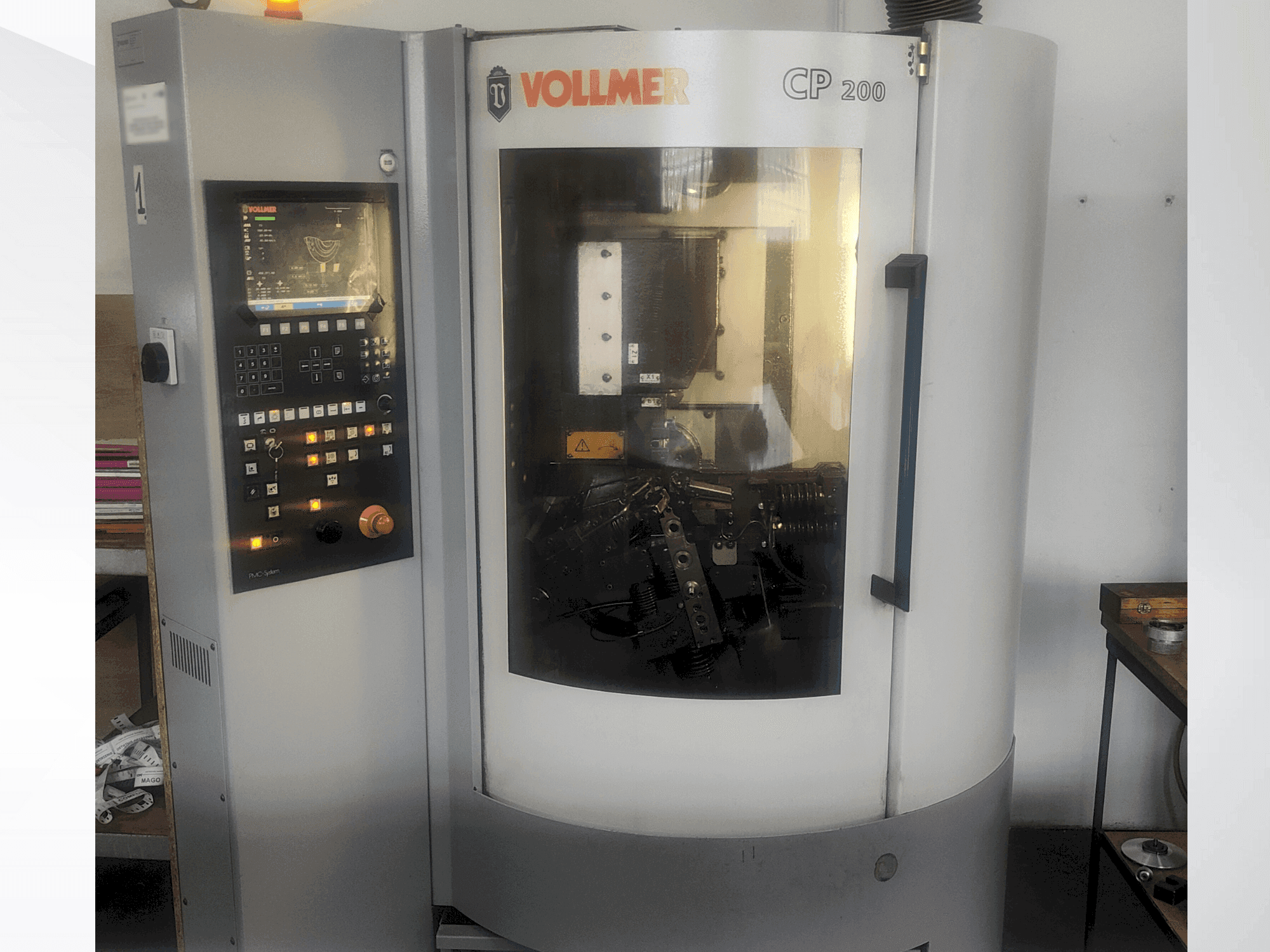

This grinding machine was manufactured in 2013. It is designed for face and top grinding of TCT circular saw blades, accommodating blade diameters from 80 to 650 mm and tooth pitches from 6 to 100 mm. Features include adjustable hook angles from -10° to +30° and clearance angles from 5° to 25°. It supports a grinding wheel diameter of 125 mm and operates at speeds up to 20 teeth/min. For more information about this grinding machine, please reach out to us.
Overview
- brand: VOLLMER
- year: 2013
- MODEL: CP 200
- production hours: 14044
- application type: Grinding
- Location: Poland
- machine type: Grinding Machine
- availability: Immeditely
Technical Information - VOLLMER CP 200
General Data
- Measurements width: 960 MM
- Measurements depth: 1502 MM
- Measurements height: 1900 MM
- Machine weight: 850 KG
Additional Equipment
- - Coolant System: Coolant tank capacity: approx. 125 liters
Additional Information
- Technical Machine Benefits:
- - Bevel grinding:tooth top angle: up to 45°
- - Tooth face angle: up to 15°
- - Tooth height difference: as required
- - Grinding wheel:outside diameter: 125 mm
- - Bore diameter: from 32 mm
- - Peripheral speed: approx. 27 m/s
- - Grinding speed: 0. 1 mm/s to 20 mm/s
- - Working speed: up to 20 teeth/min
- - Circular Sawblade: Outside diameter: 80 to 650 mm Bore diameter: from 10 mm Blade thickness: < 5 mm Tooth pitch: 6 to 100 mm Grinding path length: < 20 mm Hook angle: -10° to +30° Clearance angle: 5° to 25°
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
