- Used Erosion machine SODICK AQ 600L (2012) for sale | GINDUMAC.COM

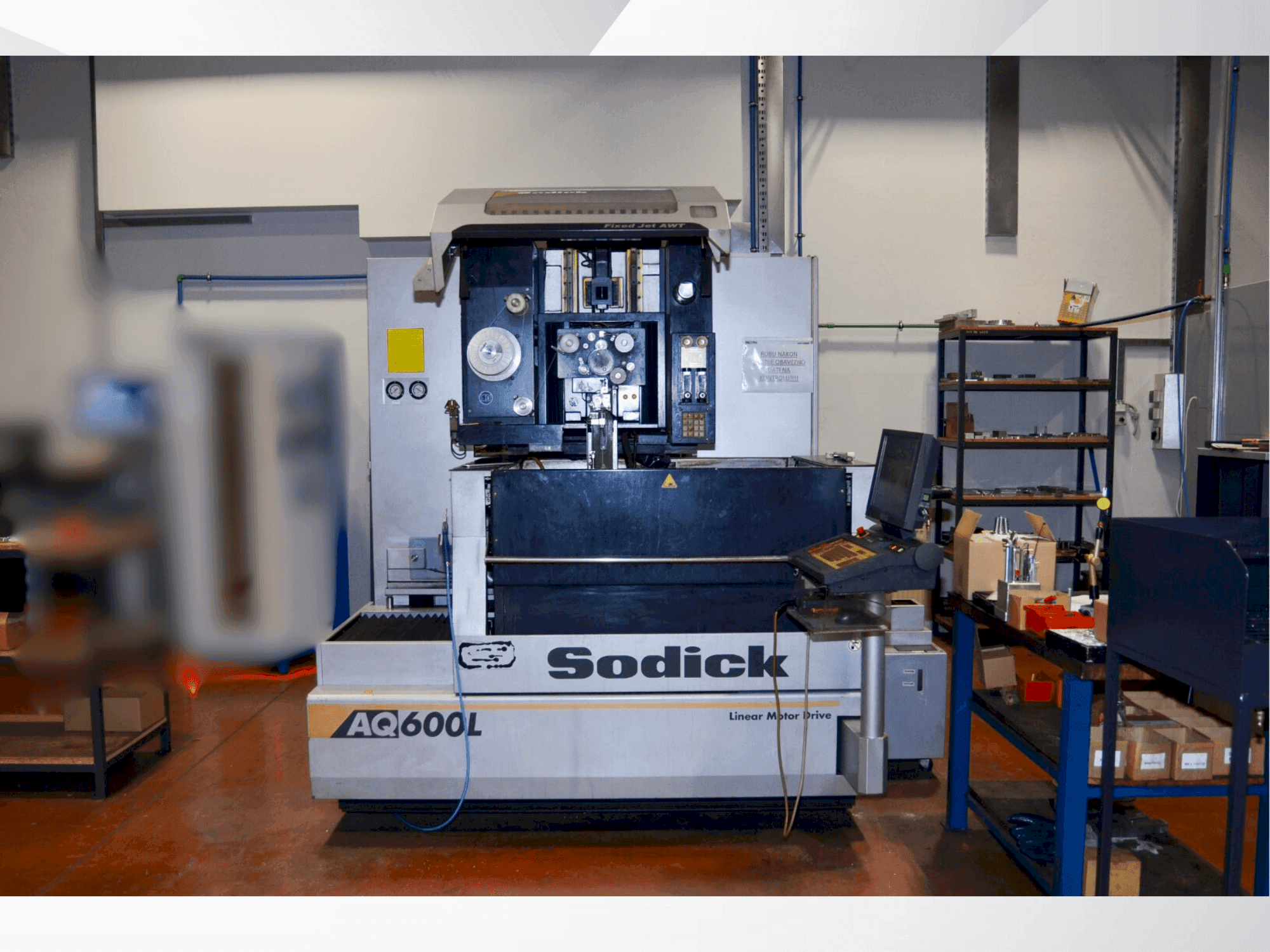

This SODICK AQ 600L Erosion machine was manufactured in 2012. It has axis travel of 600 x 400 x 300 mm and is equipped with linear guides and scales on all axes. It features wire diameters ranging from 0.1 to 0.3 mm and a maximum wire feed of 420 mm/s. Contact us anytime for further information.
Overview
- brand: Sodick
- year: 2012
- MODEL: AQ 600L
- production hours: 8720
- application type: EDM
- Location: Croatia
- machine type: Erosion Machine
- availability: Immediately
Technical Information - Sodick AQ 600L
General Data
- Measurements width: 2400 MM
- Measurements depth: 2930 MM
- Measurements height: 2185 MM
- Machine weight: 4830 KG
Movement
- X-AXIS Movement: 600 MM
- Y-AXIS Movement: 400 MM
- Z-AXIS Movement: 300 MM
Workpiece
- Workpiece x: 790 MM
- Workpiece y: 550 MM
- Workpiece z: 250 MM
- Workpiece weight: 790 KG
Additional Information
- Technical Machine Benefits:
- - Tank dimensions 1135 x 890 mm
- - Maximum cutting taper +/-20 at depth 80 mm
- - Wire diameter 0. 1 to 0. 3 mm
- - Maximum wire feed 420 mm/s
- - Reservoir capacity 8401
- - Dielectric fluid
- - Linear guides and scales on all axes
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
