➤ Used +GF+ Agie Charmilles CUT 30P | Wire EDM For Sale

Show in original language

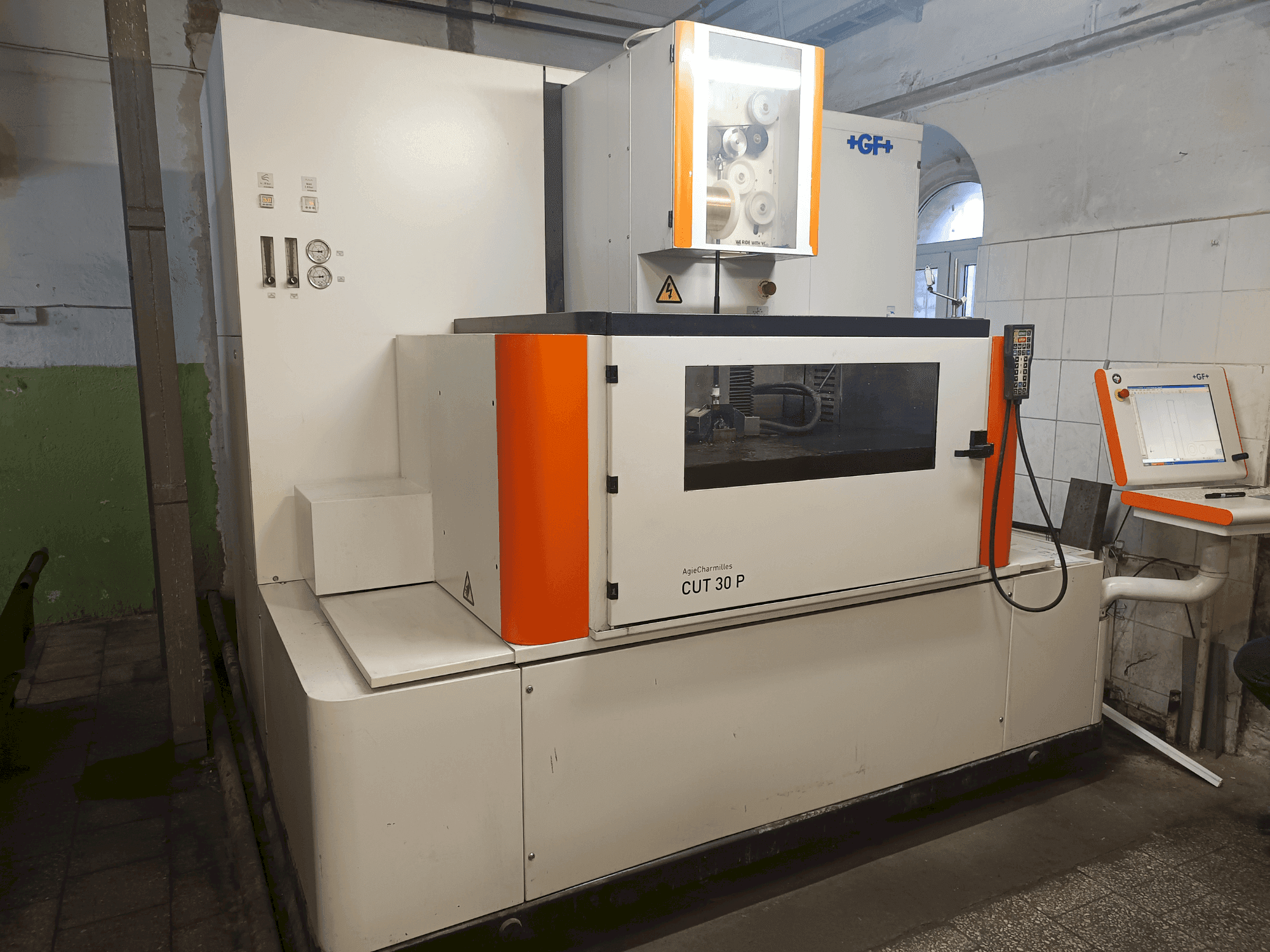

This 5-axis +GF+ Agie Charmilles CUT 30P wire EDM machine was manufactured in 2016. Ideal for precision cutting, it offers advanced control features and robust construction. Consider the opportunity to buy this +GF+ Agie Charmilles CUT 30P wire EDM machine. Contact us for more information.

Overview

brand: +GF+
year: 2016
MODEL: Agie Charmilles CUT 30P
application type: Cutting
Location: Poland
machine type: Wire EDM Machine
availability: Immediately

Technical Information - +GF+ Agie Charmilles CUT 30P

General Data

Machine weight: 4690 kg

Main drive

Number of axis: 5

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 350 mm
V-Axis Movement: ± 50 mm
U-Axis Movement: ± 50 mm

Workpiece

Workpiece weight: 1000 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Measurement device: glass scales (xy) / encoder (uvz)
- - Measurement resolution: 0. 1 µm
- - Max. Taper angle: ± 10° (57 mm height)
- - Max. Workpiece size: 1030 × 800 × 350 mm
- - Table size: 950 × 630 mm
- - Distance between table surface and floor: 1060 mm
- - Wire guide diameter: 0. 10 / 0. 15 / 0. 20 / 0. 25 / 0. 30 mm
- - Automatic wire threading diameter: 0. 15 / 0. 20 / 0. 25 / 0. 30 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
