SCANTECH - Trackscan Sharp49DE-MEA-TRA-2023-00001

Additional Equipment

• - Operating Temperature Range: 0°C to 45°C
• - Operating Humidity Range: 10% to 90%

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Software tviewer
  • - Interface: usb 3. 0
  • - Weight: i-tracker in transport case (including accessories): 37 kg
  • - Weight: i-scanner in transport case (including accessories): 21 kg
  • - Weight: i-tracker (without case): 6. 8 kg
  • - Weight: i-scanner (without case): 1. 75 kg
• Qualitative Machine Benefits:

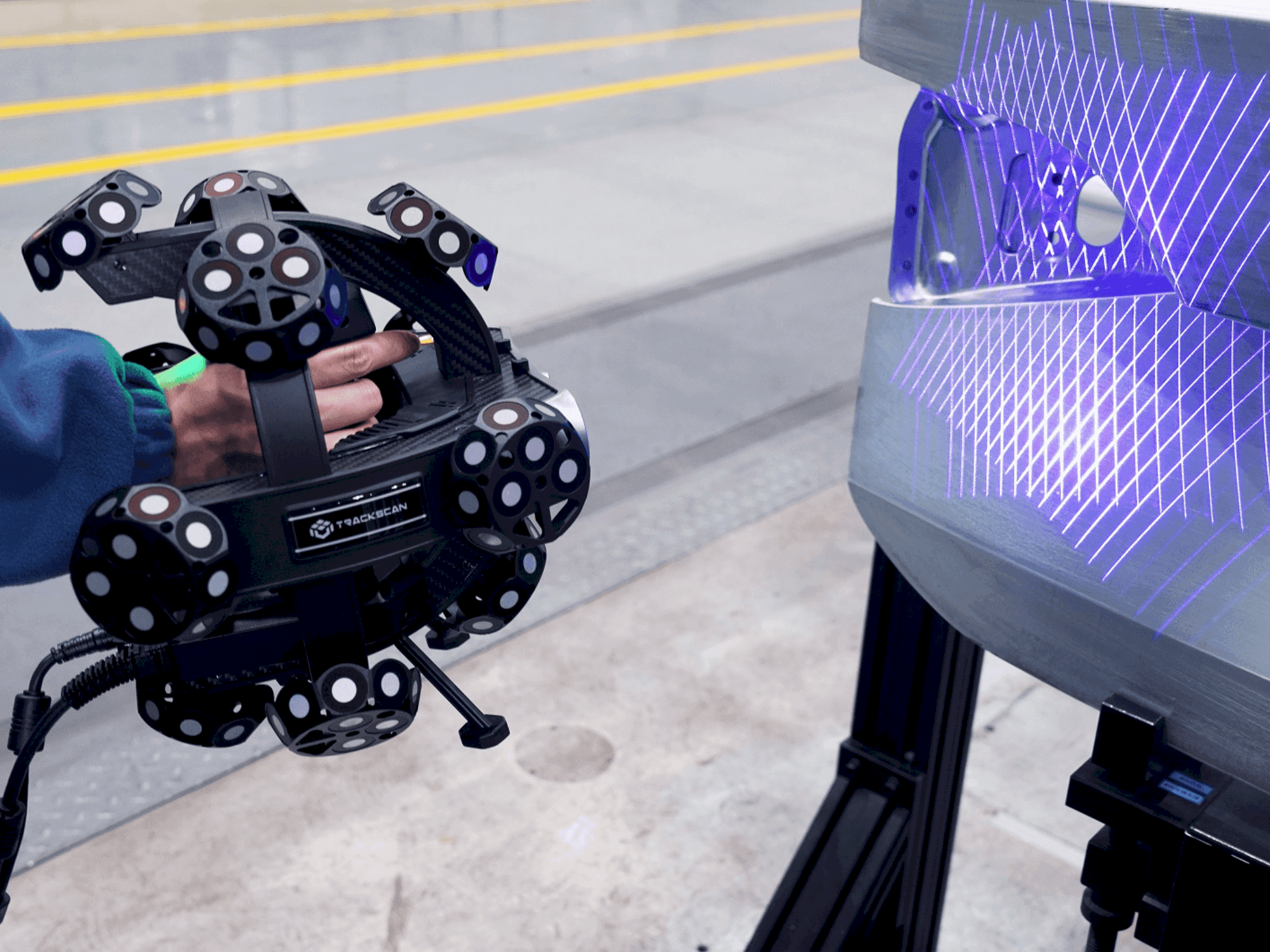

  • - The trackscan sharp49 is a tracker-based 3d laser scanner. With its scan volume of 49 cubic metres, you can digitise large objects such as cars or trucks with high precision. It is very easy to use. Thanks to its camera beam, which records the position of the scanner, no reference marks need to be applied to the object to be scanned. This technology allows for extremely fast digitisation and therefore makes it possible, for example, to make a quality statement about a component in the shortest possible time.

Extra information

• - Scan Modes: Ultra-fast Scanning: 21 blue laser crosses Hyperfine Scanning: 7 parallel blue laser lines Deep Hole Scanning: 1 additional blue laser line Scan Rate: Up to 2600000 measurements per second Scan Area: Up to 500 mm × 600 mm Laser Class: Class II (eye-safe) Resolution: Up to 0.020 mm Volumetric Accuracy: 10.4 m³ (Tracker distance 3.5 m): Up to 0.049 mm 28.6 m³ (Tracker distance 5.0 m): Up to 0.067 mm 49.0 m³ (Tracker distance 6.0 m): Up to 0.089 mm Tracking Distance with i-Tracker: 6000 mm Camera Resolution (i-Tracker): 25 Megapixels Working Distance: 300 mm Depth Range: 400 mm Recommended Part Size: 0.1 m – 12 m
