- ➤ Used MAHR MarSurf CD 140 - CMM For Sale | gindumac.com

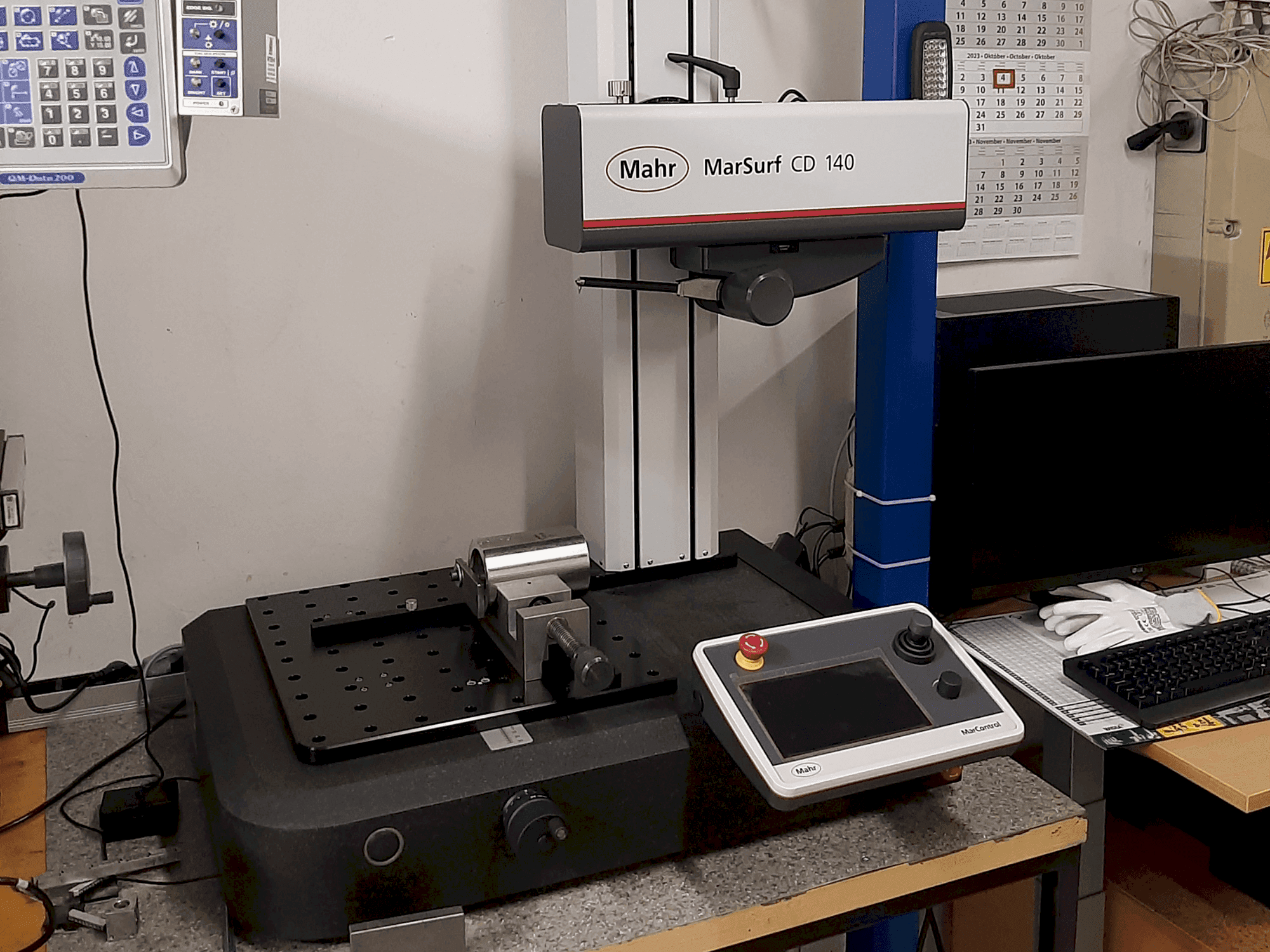

This 3-axis MAHR MarSurf CD 140 CMM machine was manufactured in 2022. It features a contour probe system with a resolution of up to 6 nm and a traversing length from 0.1 mm to 140 mm. The machine supports a workpiece weight of up to 90 kg and offers adjustable measuring forces from 4 mN to 30 mN. If you are looking to get high-quality contour measuring capabilities, consider the MAHR MarSurf CD 140 machine we have for sale. Contact us for more information.
Overview
- brand: MAHR
- year: 2022
- MODEL: MarSurf CD 140
- application type: Measuring
- Location: Hungary
- machine type: Coordinate Measuring Machine (CMM)
- availability: Immediately
Technical Information - MAHR MarSurf CD 140
General Data
- Machine weight: 200 kg
Main drive
- Number of axis: 3
Workpiece
- Workpiece weight: 90 kg
Additional Information
- Technical Machine Benefits:
- - X-axis: start of traversing length 0. 1 mm, end of traversing length 140. 0 mm positioning speed x-axis: 0. 02 - 200 mm/s
- - Z-axis: positioning speed z-axis: 0. 02 - 50 mm/s
- - Resolution max. 6 nm (with 210 mm probe arm)
- - Guide deviation 0. 35 μm / 60 mm, 0. 40 μm / 140 mm
- - Measuring force (n) 4 mn to 30 mn, adjustable via software
- - Measuring speed 0. 02 mm/s to 10 mm/s
- - Probe contour probe system
- - Probe arm length 210 mm; 350 mm; 490 mm
- - Measuring range mm 70 mm with probe arm 350 mm long, max. 100 mm with 490 mm long probe arm
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
