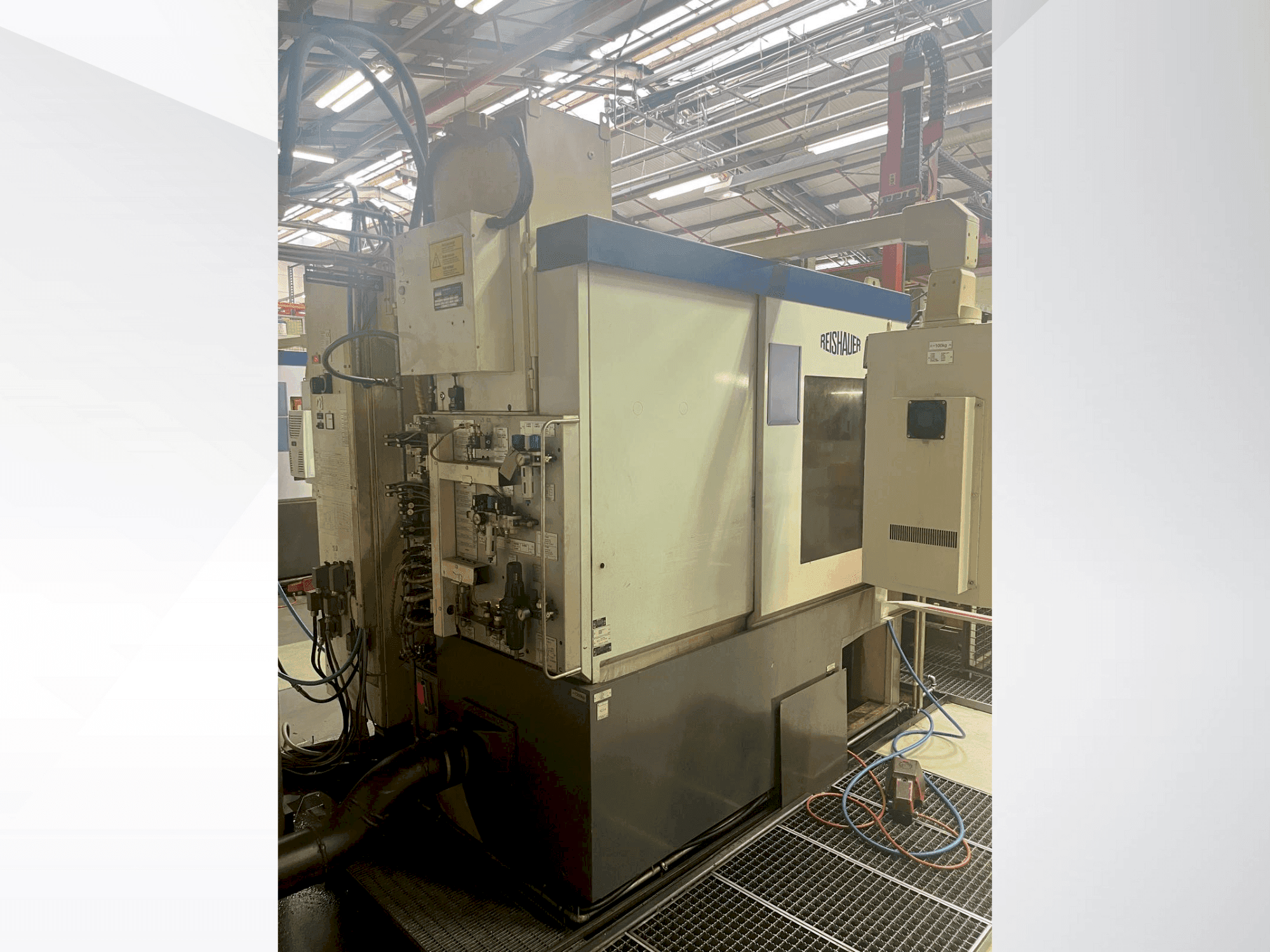

This Reishauer RZ 150 grinding machine was manufactured in 2007. It features a maximum wheel diameter of 150 mm, wheel width of 100 mm, and can handle workpieces up to 2 kg. The machine offers a grinding stroke of 100 mm and a clamping length up to 350 mm. It supports spindle speeds from 0 to 5200 1/min and includes Rice robot handling. For more information about this grinding machine, please reach out to us.
Overview
- brand: Reishauer
- year: 2007
- MODEL: RZ 150
- application type: Grinding
- Location: Germany
- machine type: Grinding Machine
- availability: Immediately
- control unit brand: SIEMENS
Technical Information - Reishauer RZ 150
General Data
- Measurements width: 3500 MM
- Measurements depth: 4800 MM
- Measurements height: 3200 MM
- Machine weight: 8500 KG
Control Unit
- Model: 840 D
- Brand: SIEMENS
Main drive
- Spindle speed range: 0 - 5200 1/MIN
Workpiece
- Workpiece weight: 25-30kg
Additional Equipment
- - Shift axis (Y) / Pivot axis (A) / Feed axis (X) / Feed axis (Z)
- - Controlled dressing device (C4)
- - Grinding oil nozzle (P-axis)
- - RP 120 grinding worm profiling device
- - Hydraulic equipment: Tank capacity approx. 40 litres
- - Automatic CO2 extinguishing system FB 704
- - Tailstock nc-controlled
- - Pressure booster system
- - Control cabinet with Siemens S7-300 controller, pump capacity 160l/min at 20 bar,
Additional Information
- Technical Machine Benefits:
- - Wheel diameter: 150 mm
- - Max wheel width: 100 mm
- - Module: 1 - 3
- - Number of teeth: 5 - 150
- - Max helix angle: +- 40 degrees
- - Top circle diameter: 10 - 145 mm
- - Base circle diameter: 10 - 145 mm
- - Grinding stroke: 100 mm
- - Clamping length: 350 mm
- - Workpiece turret (c3) / workpiece spindle (c1 and c2)
- Qualitative Machine Benefits:
- - Rice robot handling
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
