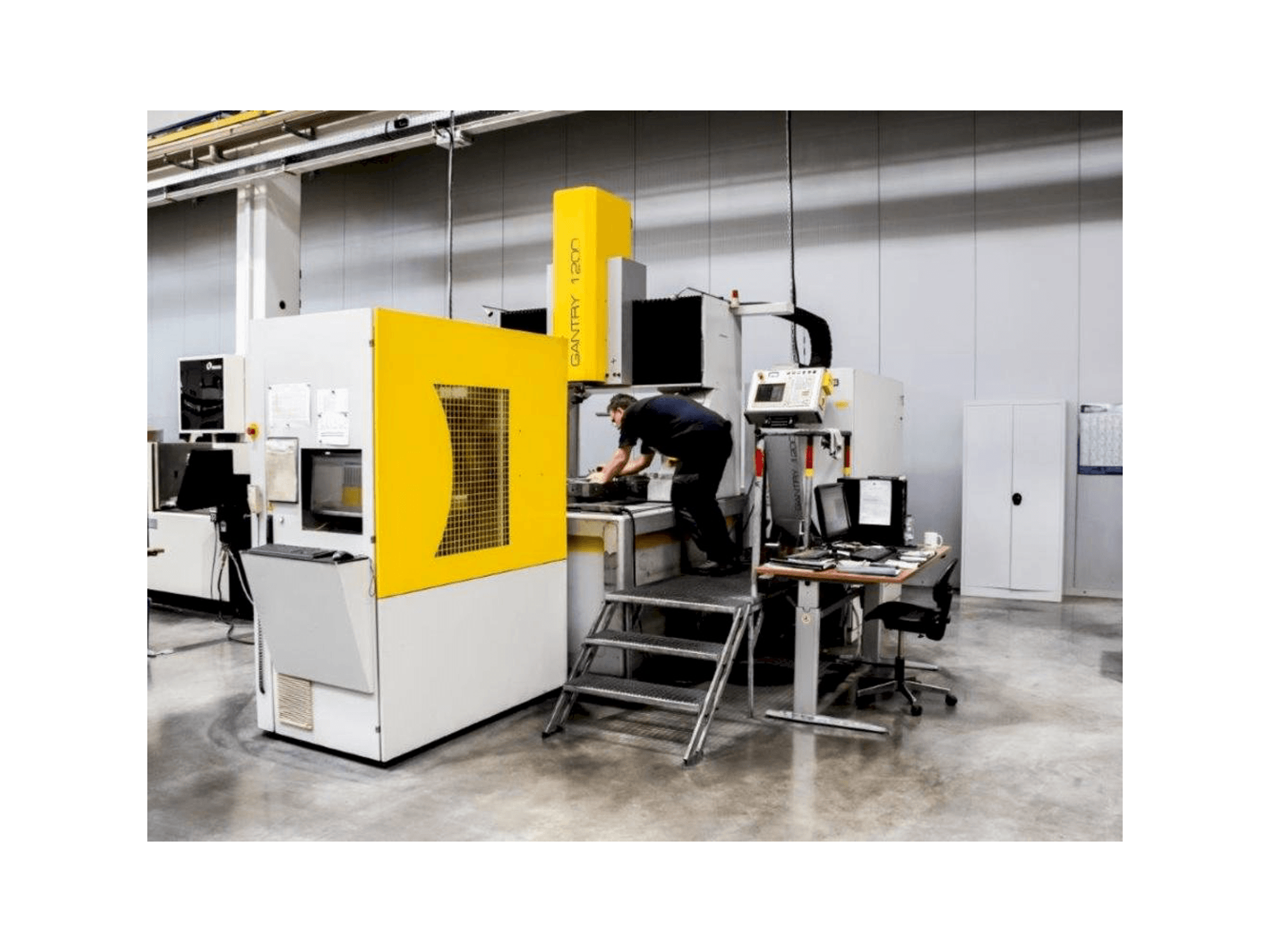

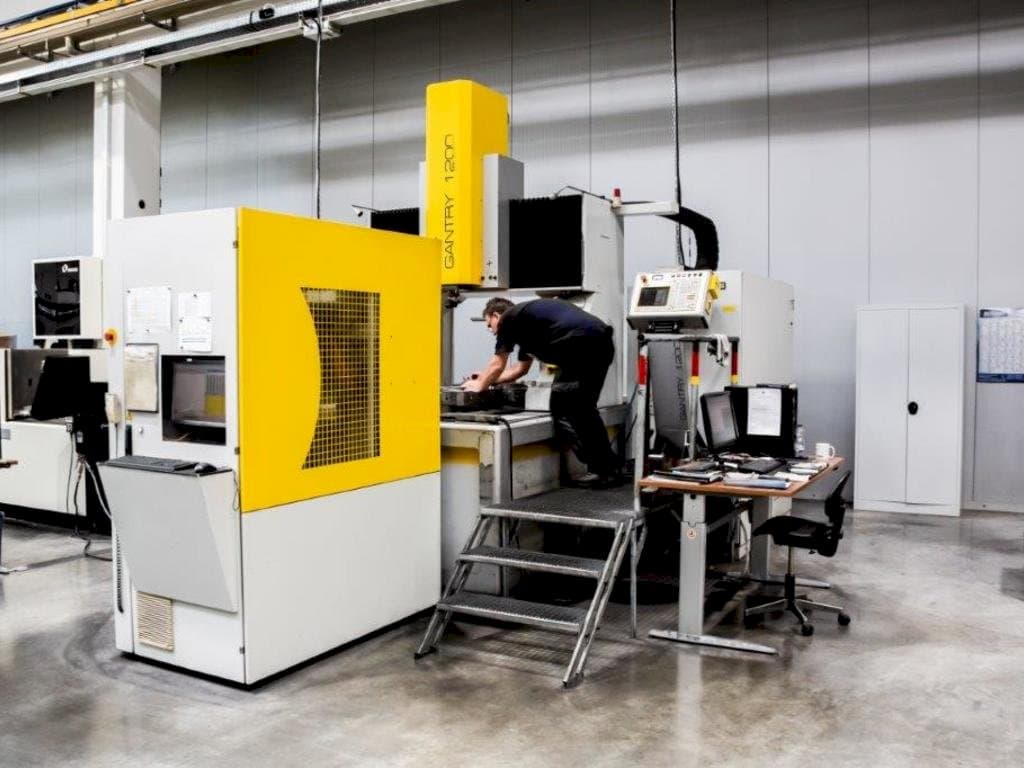

This OPS Ingersoll Gantry 1200 erosion machine was built in the year 2006 in Germany. It is equipped with a Mitsubishi - 64 bit CNC control unit and has 4 axis. The machine has a gantry elevation by 250 mm.
Overview
- brand: OPS INGERSOLL
- year: 2006
- MODEL: Gantry 1200
- application type: EDM
- Location: Germany
- machine type: Die-Sinking EDM Machine
- availability: Sold
- control unit brand: Mitsubishi
Technical Information - OPS INGERSOLL Gantry 1200
General Data
- Measurements width: 2950 mm
- Measurements depth: 3900 mm
- Measurements height: 3430 mm
- Machine weight: 12000 kg
Control Unit
- Brand: Mitsubishi
- Model: 64 bit CNC
Main drive
- Number of axis: 4
Movement
- X-AXIS Movement: 1000 mm
- Y-AXIS Movement: 1510 mm
- Z-AXIS Movement: 650 mm
Table
- Outer length: 1640 mm
- Outer width: 1140 mm
- Table load: 7500 kg
Additional Equipment
- - IMC3 automation 60-fold electrode changer
- - Accessories: CO2 fire extinguishing system
Additional Information
- Technical Machine Benefits:
- - Generator output: 70 amps - multi pulse
- - Traverse paths (x, y, z): 1000 x 1500 x 650 mm (875 x 1350 x 650 mm)
- - Gantry elevation by 250 mm
- - Electrode changer: imc-3 60-fold
- - Work bowl (w x d x h): 1770 x 1270 x 680 mm
- - Workpiece clamping table (w x d): 1640 x 1140 mm
- - 60-position changer.
- - Digital display: 0,001 mm
- - Changer total load: 150 kg
- - Atc
- Qualitative Machine Benefits:
- - Max. Top load: 400 kg
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
