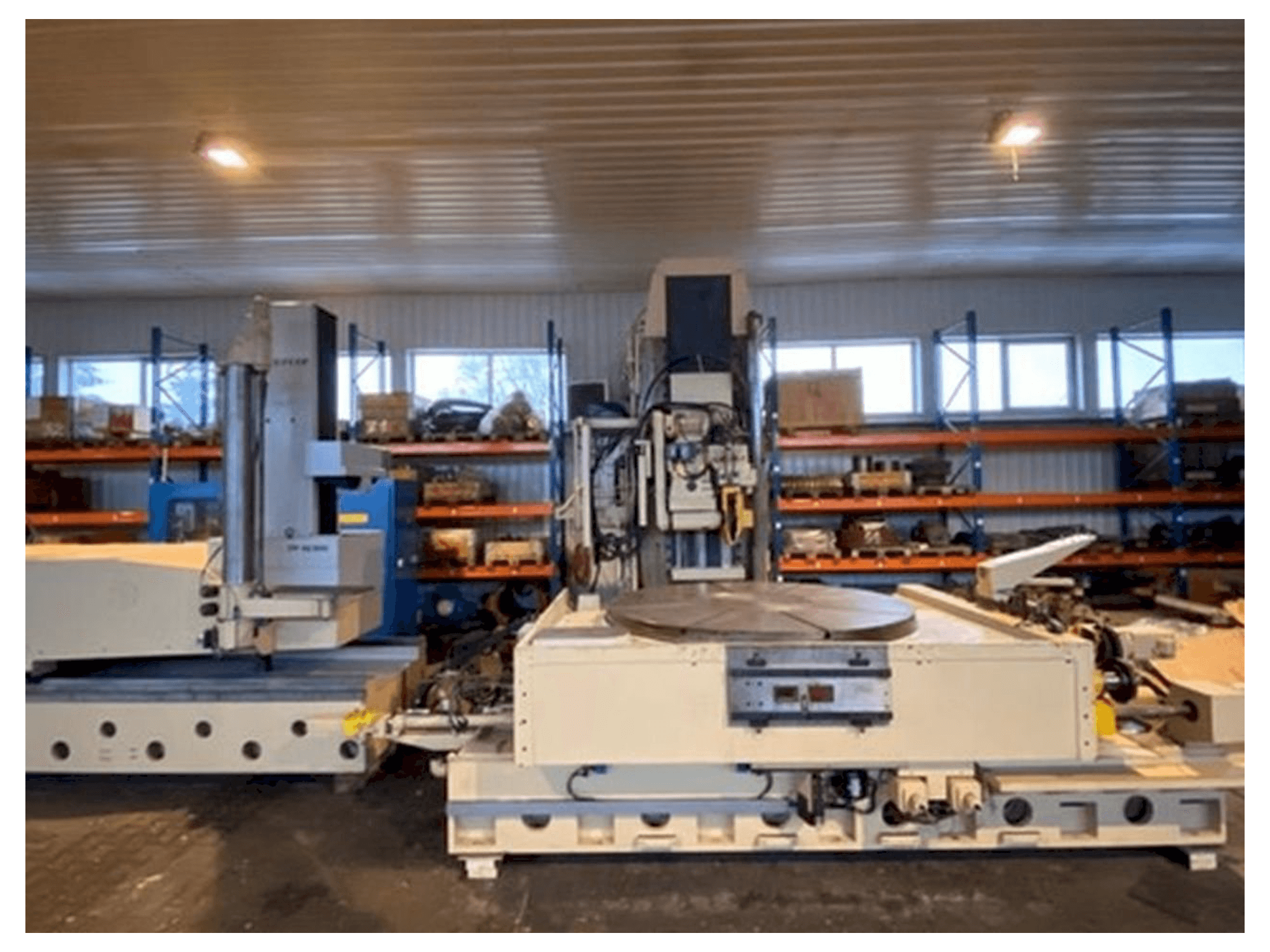

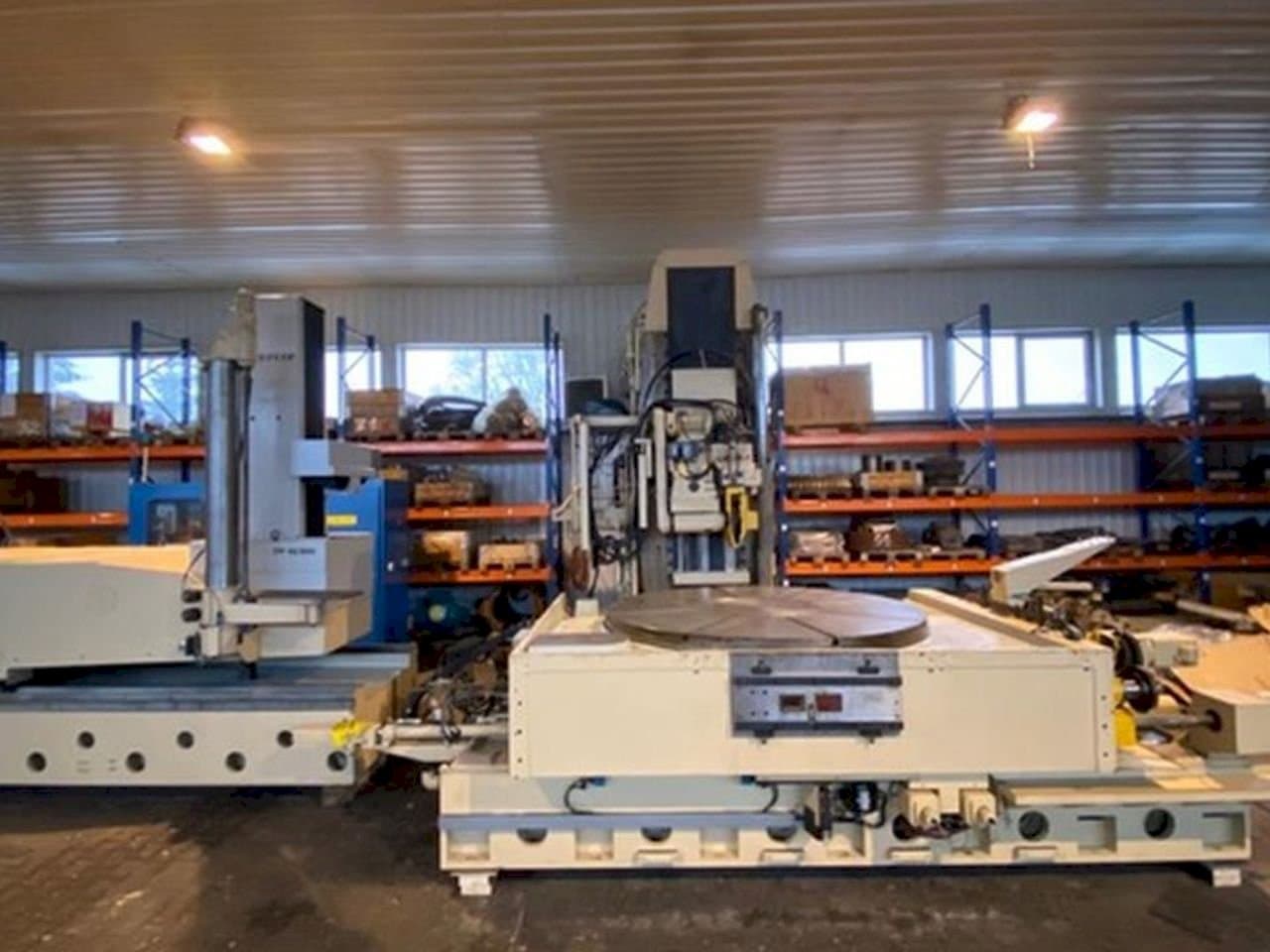

This NILES ZSTZ 35 Grinding Machine was built in Germany in the year 1994 and mechanically renovated in 2005. It is equipped with a HEIDENHAIN control unit. This machine can operate with a grinding spindle speed range 120 - 6300 rpm. It includes an air conditioned cabinet, a geometric control center HOFLER TPF 40/1000 for certifications and a mechanical rolling with sets of gears. This machine is working and from the beginning of April 2021 is ready for tests.

Overview

brand: NILES
year: 1994
MODEL: ZSTZ 35
application type: Grinding
Location: Poland
machine type: Grinding Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - NILES ZSTZ 35

General Data

Measurements width: 10200 MM
Measurements depth: 7600 MM
Measurements height: 4500 mm
Machine weight: 57300 KG

Control Unit

Brand: HEIDENHAIN

Table

Table load: 30000 KG

Media

Main electronic connection: 400 v 50 Hz
Power consumption: 45 kW

Additional Equipment

- air conditioned cabinet
- Geometric control center: HOFLER TPF 40/1000 for certifications
- Mechanical rolling with sets of gears

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max wheel diameter: 3. 500 mm
- - Gear width: 710 mm
- - Max module: 34 / min module: 4
- - Min root circle dia. : 350 mm
- - Number of teeth: 16-600
- - Max. Helix angle: 35 deg
- - Table diameter: 2000 mm / table bore diameter: 450 mm
- - Max. Ram stroke: 250 mm / min. Ram stroke: 100 mm / ram strokes: 20-120 hub/min
- - Grinding wheel diameter: 300-400 mm / grinding spindle speed: 120 - 6300 u/min
- - Max. Width of grinding wheel: 32/40/50 (63) mm / grinding wheel hole diameter: 127
Qualitative Machine Benefits:
- - The machine was mechanically renovated in 2005.
- - The machine is working and from the beginning of april 2021 ready for tests

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
