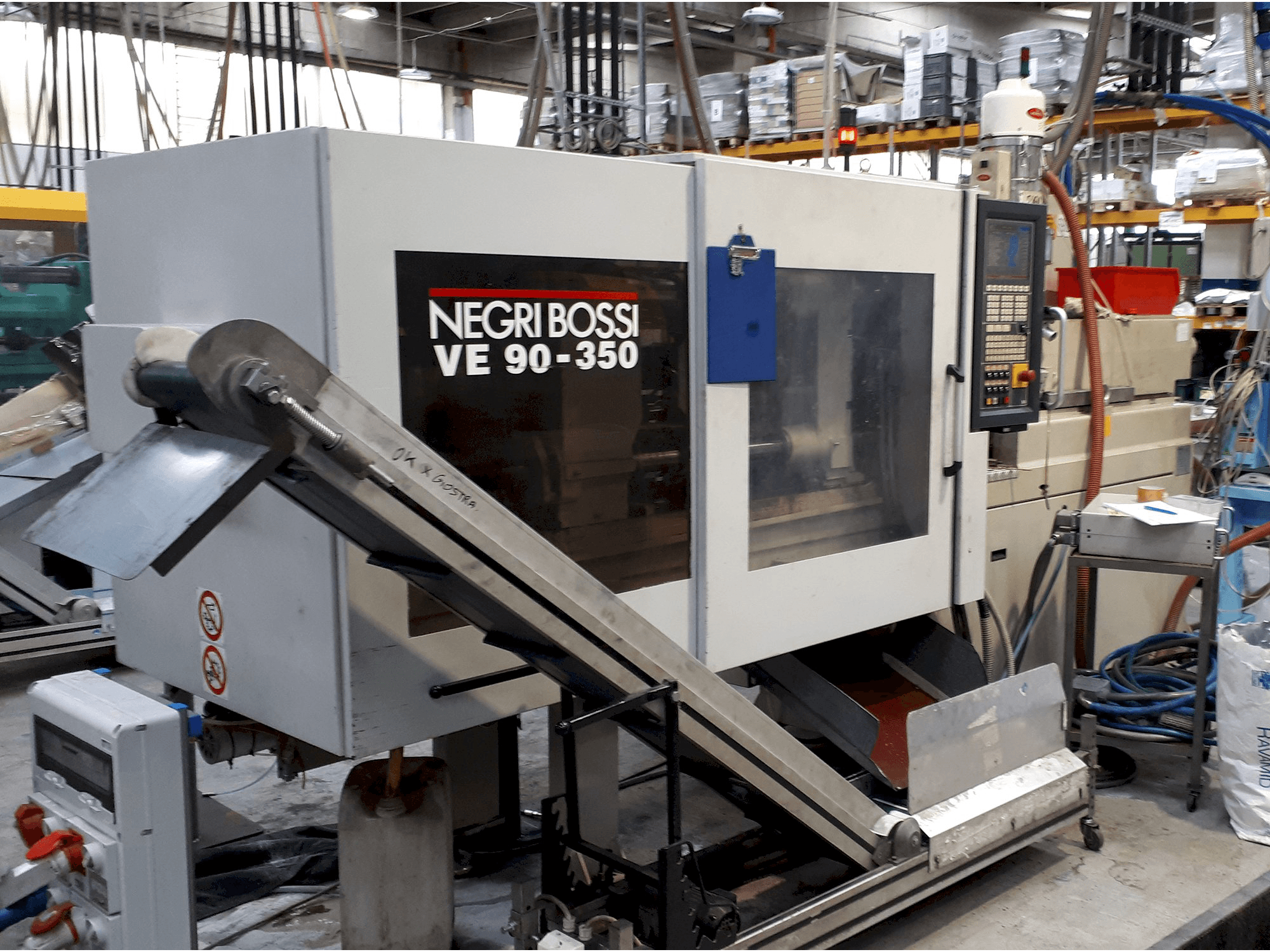

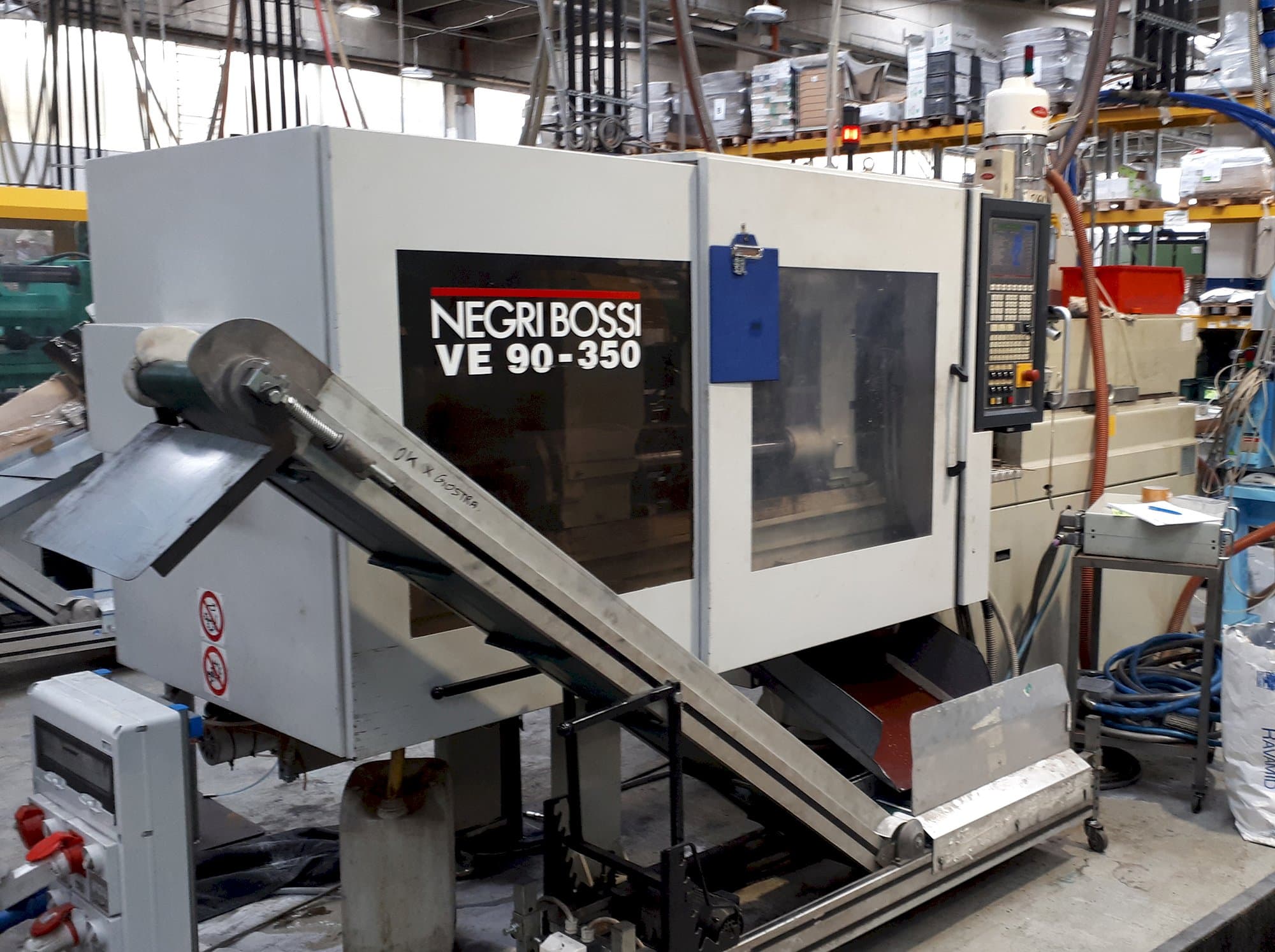

Negri Bossi VE 90-350 Injection Moulding Machine

Show in original language

This Negri Bossi VE 90-350 Injection Moulding Machine from 2005 was made in Italy and has a production record of 46300 hours. Equipped with a B&R DIMI EL2 Plus Control unit, this model incorporates a clamping force of 900 kN. This machine includes a new print board for regulation ejector.

Overview

brand: Negri Bossi
year: 2005
MODEL: VE 90-350
production hours: 46300
application type: Injection Moulding
Location: Italy
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Negri Bossi VE 90-350

General Data

Measurements width: 4850 mm
Measurements depth: 4850 mm
Measurements height: 2070 mm
Machine weight: 4000 kg

Control Unit

Model: DIMI EL2 Plus

Injection Unit

Screw diameter: 35 mm
Shot weight: 160 g/PS
Stroke volume: 175 cm³
Injection pressure: 2000 bar
Screw speed: 440 rpm
Heating capacity: 7.5 kW
Adjustable heating zones: 3
Nozzle pressure: 400 kN

Clamping unit

Clamping force: 900 kN
Opening stroke: 360 mm
Distance between bars: 400X360 mm
Mould height min: 150 mm
Mould height max: 450 mm
Size of mold platens: 590X570 mm
Ejector stroke: 120 mm
Ejector force for / back: 30 kN

Media

Main electronic connection: 400 V

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
