Arburg - ALLROUNDER 1200 t 1000 - 400NL-INJ-ARB-2018-00001

Name: Arburg ALLROUNDER 1200 t 1000 - 400
Brand: Arburg
SKU: NL-INJ-ARB-2018-00001
Price: 110000 EUR
Availability: InStock

110,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery

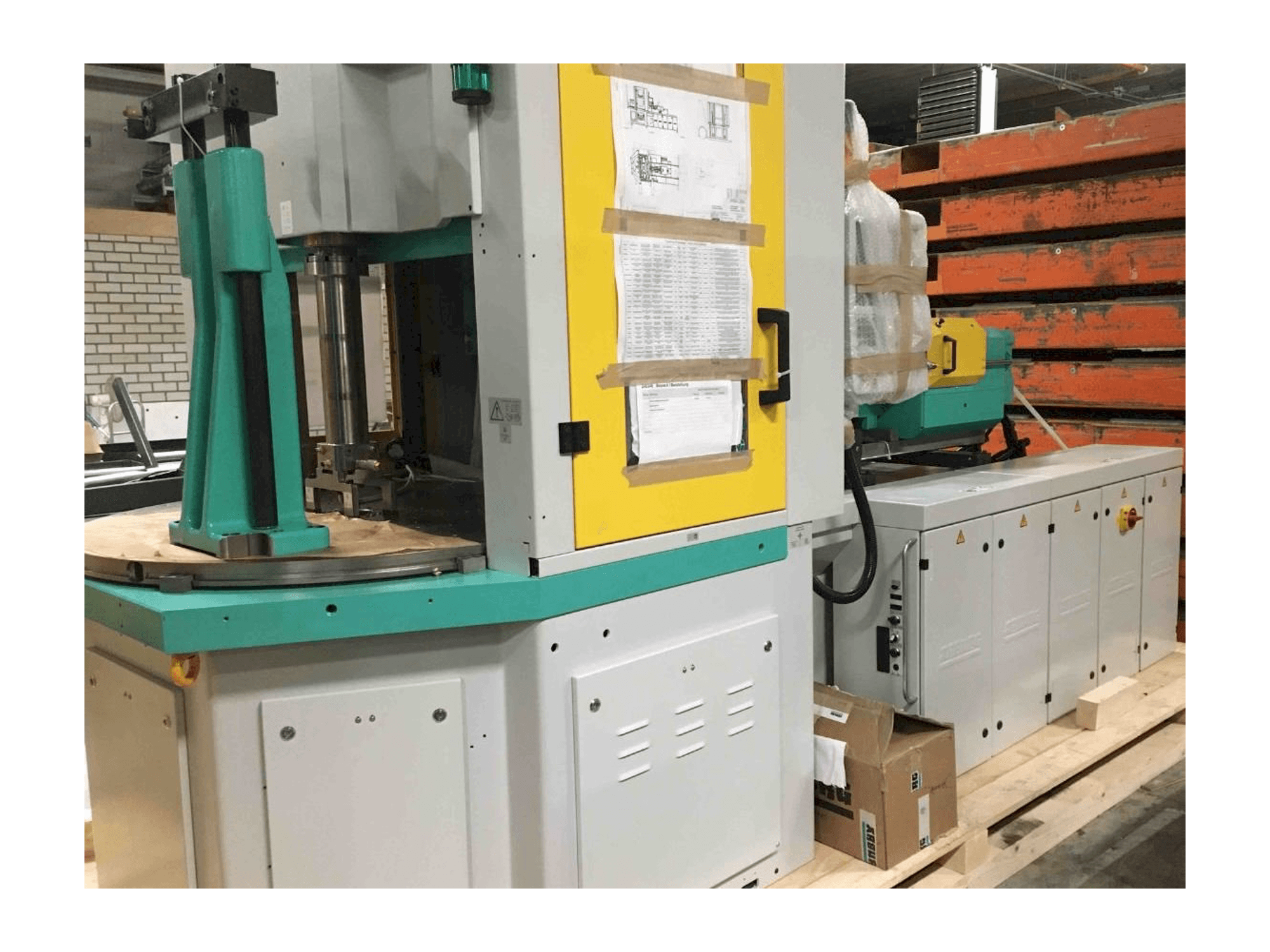

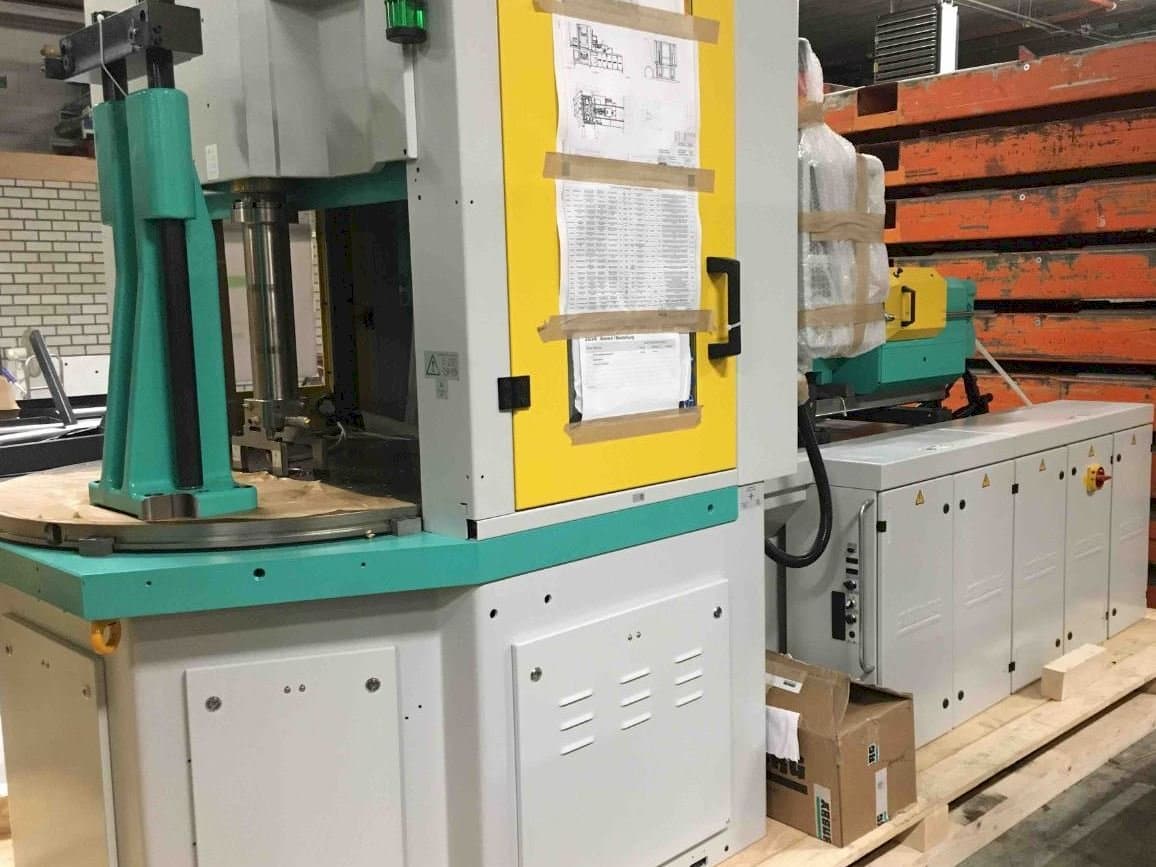

Arburg ALLROUNDER 1200 t 1000 - 400 Injection moulding machine

Show in original language

This Arburg ALLROUNDER 1200 t 1000 - 400 Injection moulding machine was manufactured in the year 2018 in Germany. It has 58 production hours. The machine has a clamping force of 1000 kN, machine like new, used only for testing. Machine needs to be CE certified by the customer, we have a quote from a third party starting at 2.000€.

Overview

brand: Arburg
year: 2018
MODEL: ALLROUNDER 1200 t 1000 - 400
production hours: 58
application type: Injection Moulding
Location: Netherlands
machine type: Hydraulic Injection Moulding Machine
availability: Immediately

Technical Information - Arburg ALLROUNDER 1200 t 1000 - 400

General Data

Measurements width: 4360 mm
Measurements depth: 1718 mm
Measurements height: 3910 mm
Machine weight: 7600 kg

Injection Unit

Screw diameter: 35 mm
Injection pressure: 2500 bar

Clamping unit

Clamping force: 1000 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Hubvolume [cm^3]: 154
- - L/d ratio screw: 23
- - Max. Mold width [mm]: rotating table diam. 1200mm
- - Max. Mold height [mm]: 400 (combination with mouldstroke)
- - Diameter locating ring(s) [mm]: 125
- - Nose radius: r40
- - Number of cooling circuits: injection: 1, turning table: 3

Extra information

- The machine was part of a production cell and would need to be CE certified by the customer. We have received target prices for certifiying by a consultancy who could do this starting from 2.000€.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
