➤ Used Mitsubishi FA 20 SM For Sale | gindumac.com

Show in original language

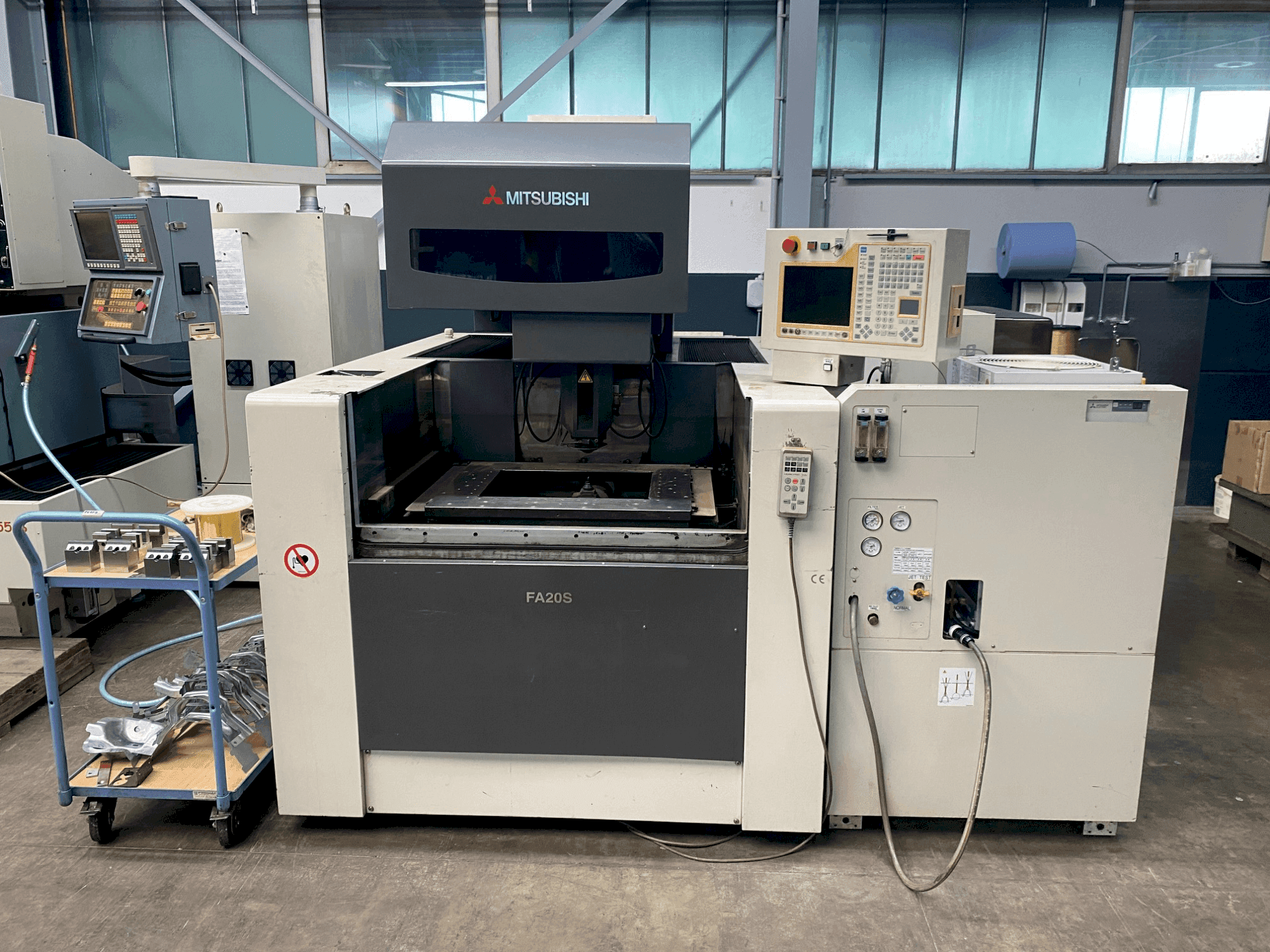

This 5-axis Mitsubishi FA 20 SM wire EDM machine was manufactured in 2006. It features a travel path of 500 x 350 x 300 mm, a conic angle capacity for a 260 mm workpiece height, and can handle workpieces up to 1500 kg. It supports wire diameters from 0.1 to 0.36 mm and includes automatic water beam threading and a wire chopper. If you are looking to get high-quality EDM capabilities, consider the Mitsubishi FA 20 SM machine we have for sale. Contact us for more information.

Overview

brand: Mitsubishi
year: 2006
MODEL: FA 20 SM
application type: EDM
Location: Germany
machine type: Wire EDM Machine
availability: Immediately

Technical Information - Mitsubishi FA 20 SM

General Data

Measurements width: 2710 MM
Measurements depth: 2420 MM
Measurements height: 2150 MM
Machine weight: 3500 KG

Main drive

Number of axis: 5

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 350 mm
Z-AXIS Movement: 300 mm
V-Axis Movement: +/- 75 mm
U-Axis Movement: +/- 75 mm

Workpiece

Workpiece x: 1050 mm
Workpiece y: 800 mm
Workpiece z: 295 mm
Workpiece weight: 1500 kg

Table

Outer length: 780 mm
Outer width: 630 mm

Additional Equipment

- Automatic Water Beam Threading
- Wire Chopper

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Possible wire diameters: 0. 1 - 0. 36 mm
- - Wire spool reception: 10 kg
- - Max. Advance (xy): 1300 mm/min
- - Tank capacity: 740 liters
- - Filler fineness: 1-2 µm
- - Filler elements: 2
- - Temperature control: dielectric cooler
- - Weight unfilled: 350 kg

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
