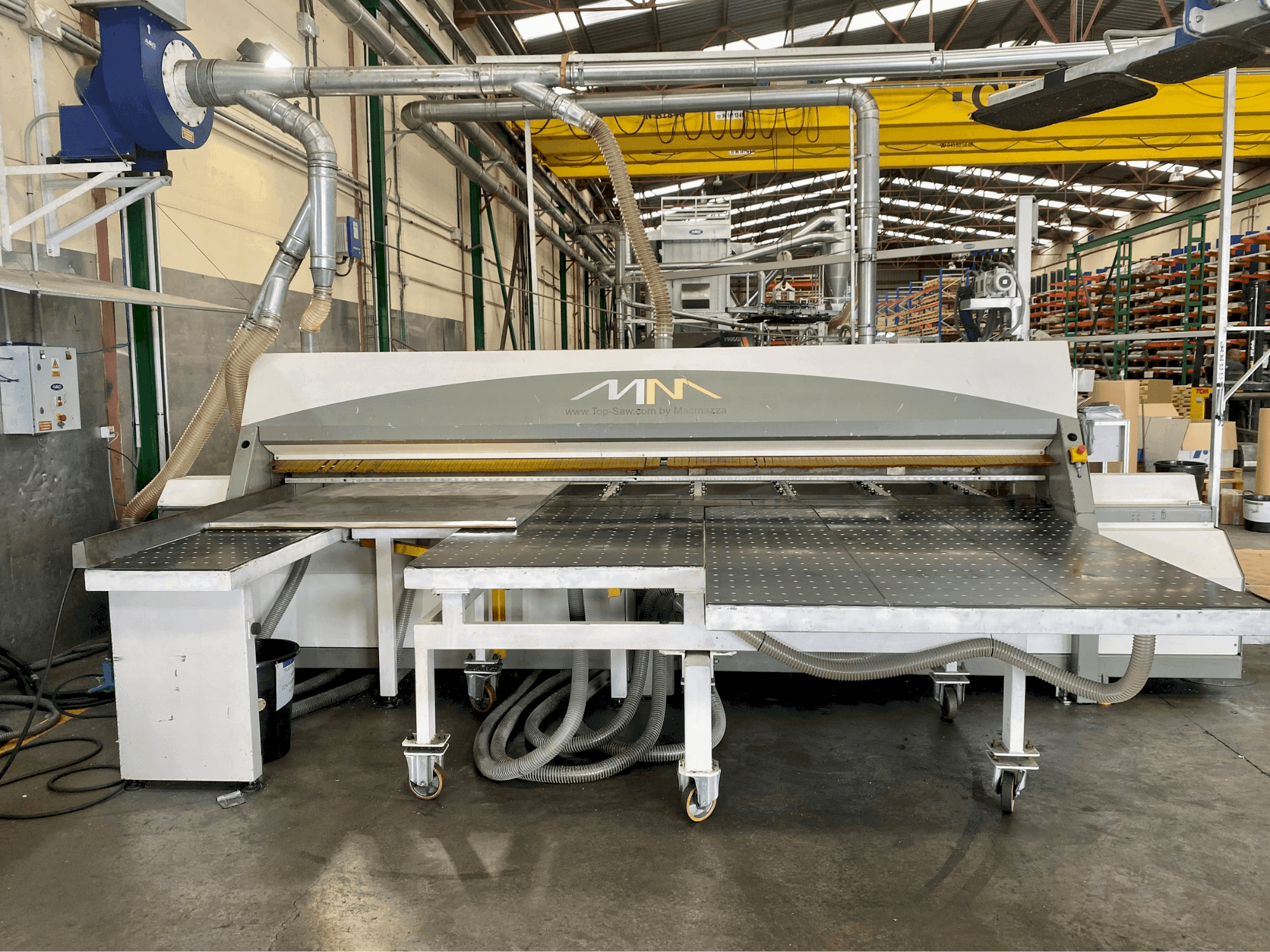

MACMAZZA - Top SawES-SAW-MAC-2018-00001

Additional Equipment

• - Main Cutting Disc Motor Power (kW): Max 23 kW
• - Number of Pneumatic Clamps on Pusher: Max. 9
• - Patented Rotating Support Table

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Maximum total length 7920 to 8970 mm (with loading platform), maximum total width 5860 mm (+6360 mm postforming), maximum total height 1760 mm
  • - Weight (kg): 6000-9000 kg (optional platform)
  • - Power supply voltage (v): 400 / frequency (hz): 50 / maximum absorbed power (kw): 17. 9 / 25. 2
  • - Cutting length (mm): 4300 / main cutting disc motor power (kw): 13 kw (15 kw on request) / main cutting disc rotation speed (rpm): 4300 / main cutting disc diameter (mm): max-400 / scoring disc rotation speed (rpm): 5800 / scoring disc diameter (mm): 160
  • - Disc carriage forward speed (m/min): 3 - 70 / disc carriage return speed (m/min): 60 - 130 / disc carriage motor power (kw): 1. 5 kw
  • - Pusher-positioner speed (m/min): 0. 1 - 25 / pusher return speed (m/min): 40 - 80 / pusher-positioner motor power (kw): 2 / number of pneumatic clamps on pusher: 6
  • - Phenolic resin support tables: 1 (2200x600), 2 (1700x600)
  • - Operating pressure (bar): 6 - 7 / compressed air consumption (nl/h): 4000
  • - Number of extraction ports: 2 (d. 120mm), 2 (d. 100mm) / required dust extraction flow (m3/h): 4000 / dust extraction system depression (pascal): 1500
  • - Acoustic pressure level (db): <85 db / working temperature (°c): 0 - 40 / relative humidity: 40%
