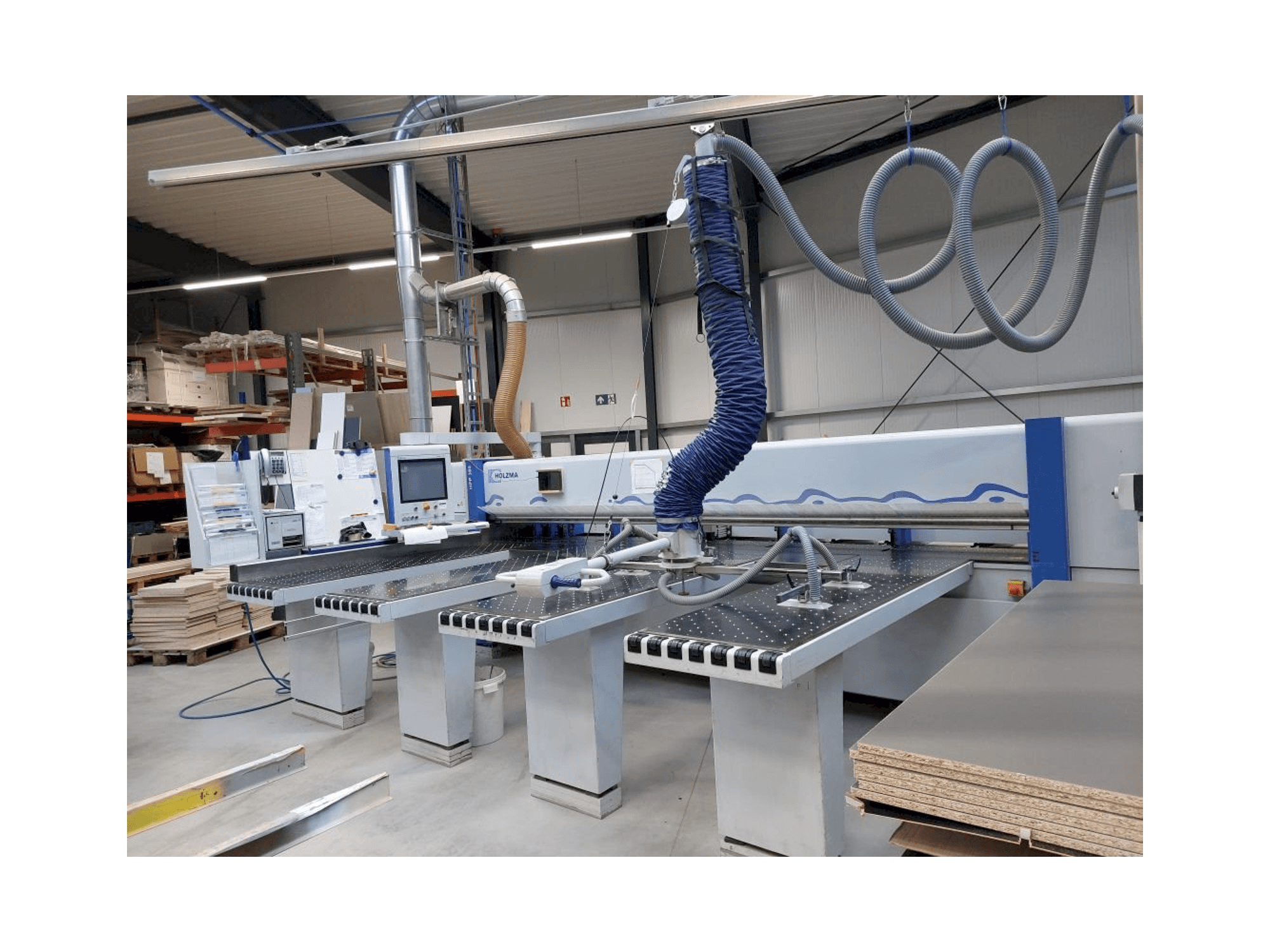

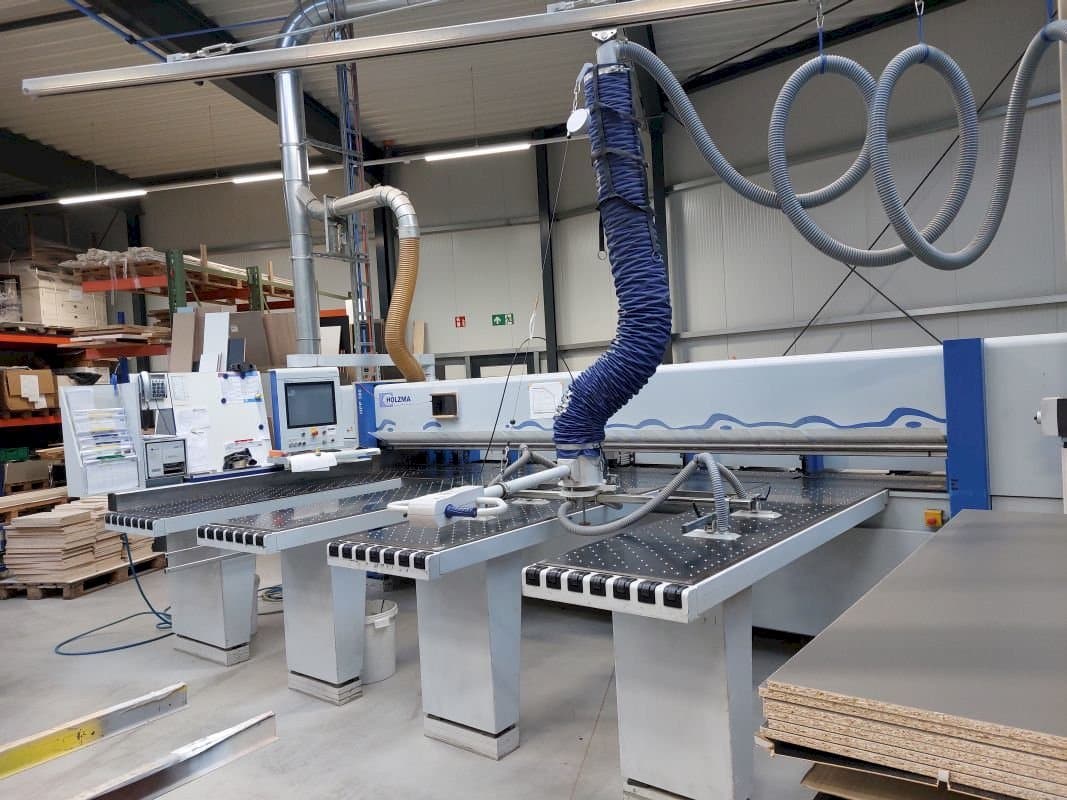

HOLZMA - HPP 380DE-SAW-HOL-2007-00001

Additional Equipment

• - Air cushion table with roller element 2160 x 650 mm: 4 pieces
• - Central blower: 1 piece

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Pre-cut saw motor: 2. 2 kw
  • - Operating voltage: 400 v / 50 hz
  • - Electrical connection value at hs motor: 18. 0 kw = 24 kw, 21. 0 kw = 27 kw
  • - Positioning accuracy: +/- 0. 1 mm/m
  • - Surface-friendly material transport, lifetime positioning accuracy, no lubrication required, high program slider speed, maintenance-free, full stability of the steel table maintained, easy, cost-effective replacement of phenolic resin plates, minimal wear of the cylinders, uniform pressure application, minimal cutting = scratch cut, significant cycle time savings, top cutting quality, minimal setup times, reduction of cycle time, pressure strength electrically adjustable
  • - Cutting length: 4300 mm
  • - Cutting width (program slider travel): 4250 mm
  • - Roller track (element 10-track): 1 piece
  • - Roller track (element 2-track): 5 pieces
  • - Clamping collets: 7 pieces (first 3 pieces two-fingered, all others one-fingered)
• Qualitative Machine Benefits:
  • - Ce-certified, gs-certified, fph wood dust certified
  • - Division: 75/275/475/1050/1850/2650/3450 mm measured from the angle rule to the center of the clamping collet
  • - 2 additional two-fingered clamping collets possible
  • - 4 manual trimming rakes at clamping collets
  • - 1 additional one-fingered clamping collet possible
  • - Jet spacing of air cushion tables: 70 x 70 mm

Extra information

• - Machine still under power

Payment Terms

• Payment in advance

• Asset Financing
