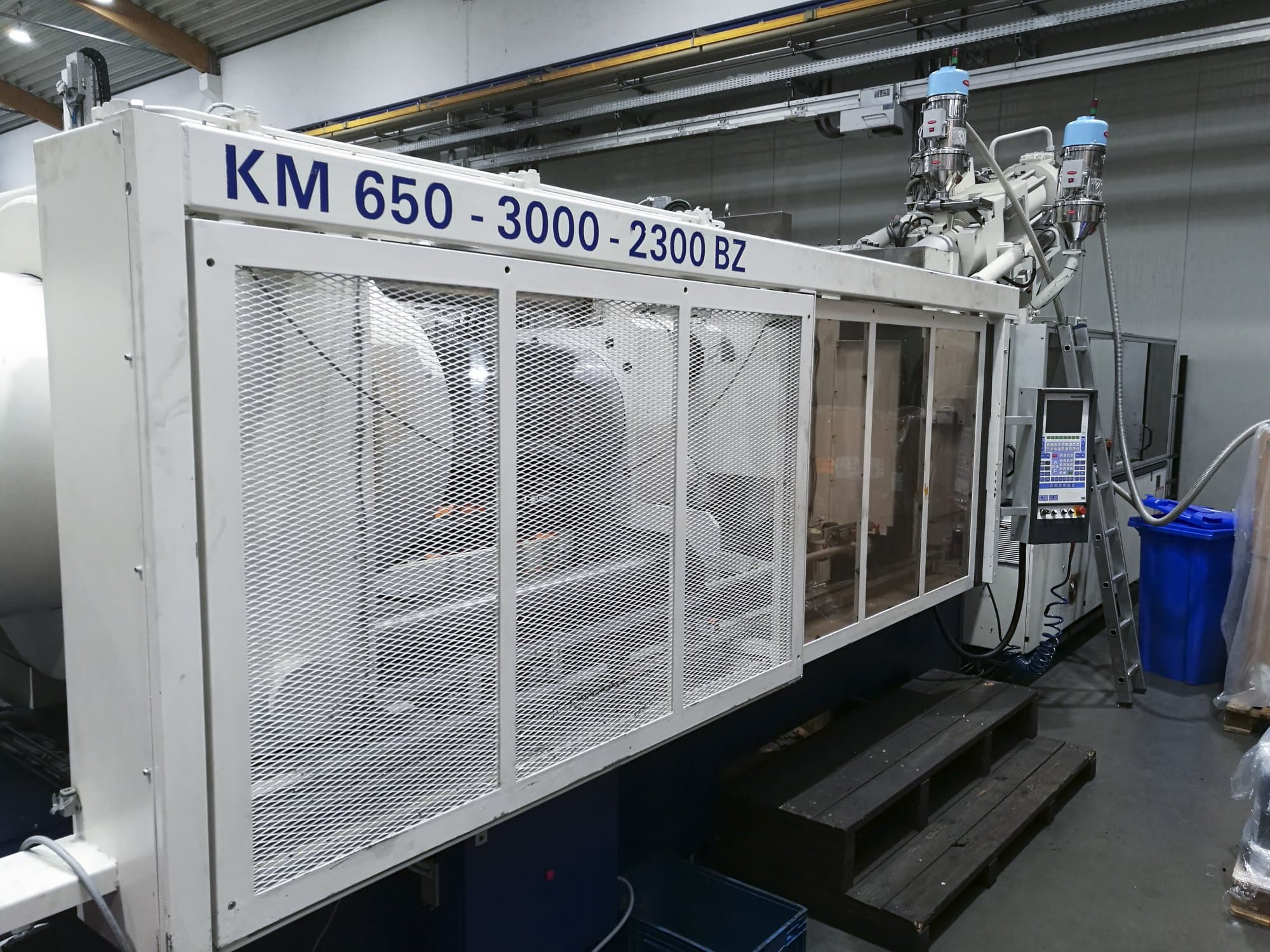

Krauss Maffei 650-3000-2300 BZ Injection Moulding Machine

Show in original language

This Krauss Maffei 650-3000-2300 BZ Injection Moulding Machine from 1996 was manufactured in Germany and has a working record of 23471 production hours. This machine was equipped with a Krauss Maffei MC4 Control unit in 2010 and stands out due to its two injection units, four core pull cylinders as well as the Kuka robot. During the past, this model has produced parts for the automotive industry.

Overview

brand: Krauss Maffei
year: 1996
MODEL: 650-3000-2300 BZ
production hours: 23471
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 650-3000-2300 BZ

General Data

Measurements width: 11000 mm
Measurements depth: 2800 mm
Measurements height: 4600 mm
Machine weight: 45000 kg

Control Unit

Brand: KRAUSS MAFFEI
Model: MC3F

Injection Unit

Screw diameter: 100/70 mm
Stroke volume: 1096/2411 cm³
Injection pressure: 1254 bar

Clamping unit

Clamping force: 6500 kN
Opening stroke: 1750 mm
Ejector stroke: 250 mm

Media

Main electronic connection: 400 V
Internal cooling: Yes

Additional Equipment

- 2x Injection unit
- KUKA robot

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
