Krauss Maffei 1300/8100 MX injection moulding

Show in original language

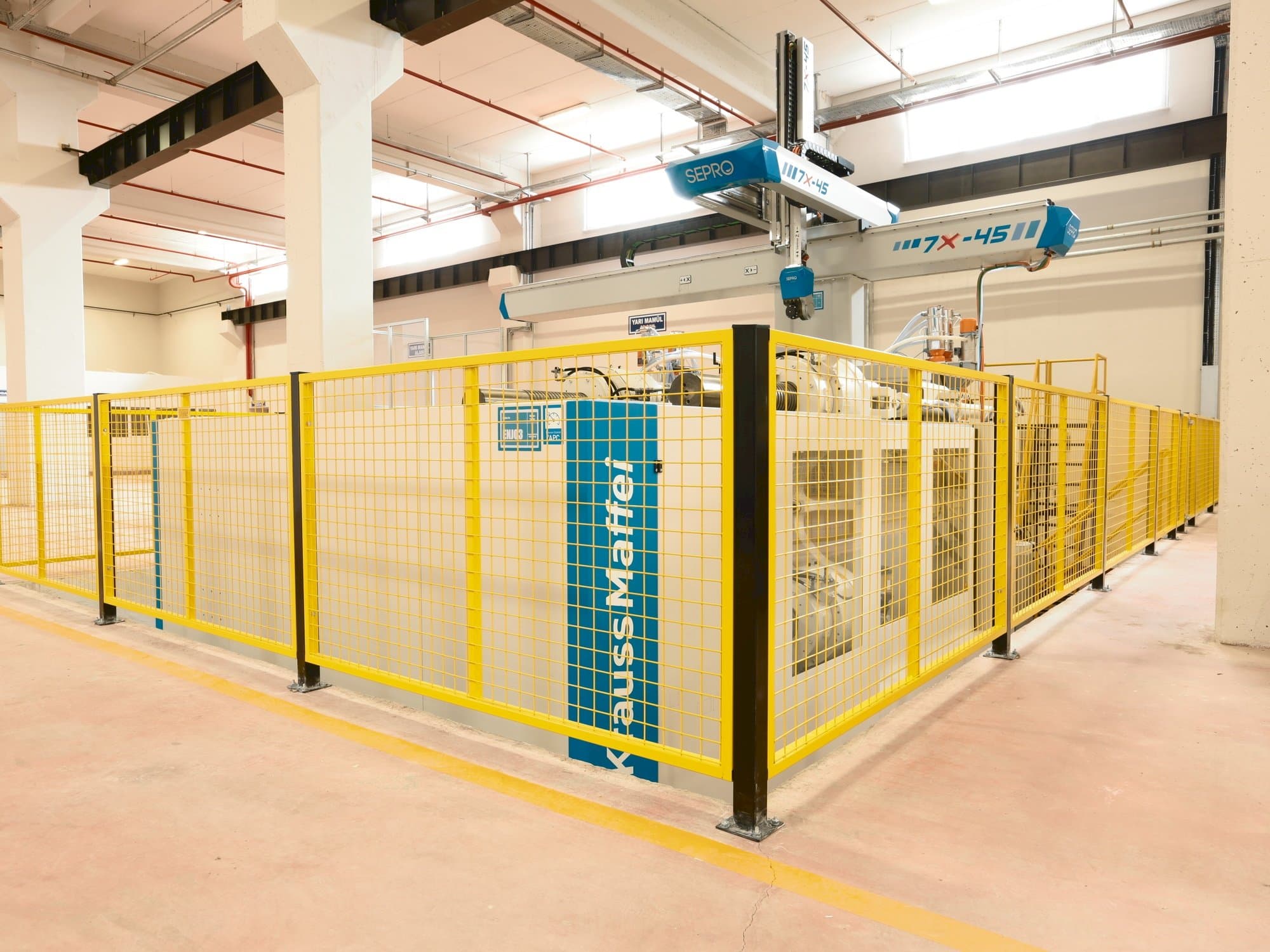

This Krauss Maffei 1300/8100 MX injection moulding machine was manufactured in 2017. The machine has a total of 800 production hours. It has a clamping force of 13000 kN, and a screw diameter 115 mm. The machine comes with a Sepro Robot.

Overview

brand: Krauss Maffei
year: 2017
MODEL: 1300/8100 MX
production hours: 800
application type: Injection Moulding
Location: Turkey
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Krauss Maffei 1300/8100 MX

General Data

Measurements width: 3650 mm
Measurements depth: 2680 mm
Measurements height: 12110 mm
Machine weight: 64000 kg

Injection Unit

Screw diameter: 115 mm
Shot weight: 3872
Stroke volume: 5453 CM³
Injection pressure: 1482 bar
Plasticizing rate max.: 171 g/s
Screw speed: 150 rpm
Nozzle pressure: 166 kN

Clamping unit

Clamping force: 13000 kN
Opening stroke: 2350 mm
Max open daylight: 3050 mm
Distance between bars: 1570 x 1270 mm
Mould height min: 700 mm
Mould height max: 1400 mm
Size of mold platens: 2210 x 1910 mm
Ejector stroke: 350 mm
Ejector force for / back: 250 / 125 kN

Additional Equipment

- Sepro Robot

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum mold weight: 29. 000kg
- - Oil reservoir capacity: 1. 500 dm3
- - Nozzle pressure: 166 kn
- - Adjustable barrel heating zones: 7
- - Installed heating capacity: 64 kw
- - Injection speed: 93 mm/s
- - Injection rate: 966 cm3/s
- - Working capacity: 8085
- - Ls/d ratio: 23 cm3
- - Mold opening stroke: 2350 mm
Qualitative Machine Benefits:
- - Mold opening force: 910 kn

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
