JUNKER Quickpoint 5002/20 Cylindrical Grinding Machine

Show in original language

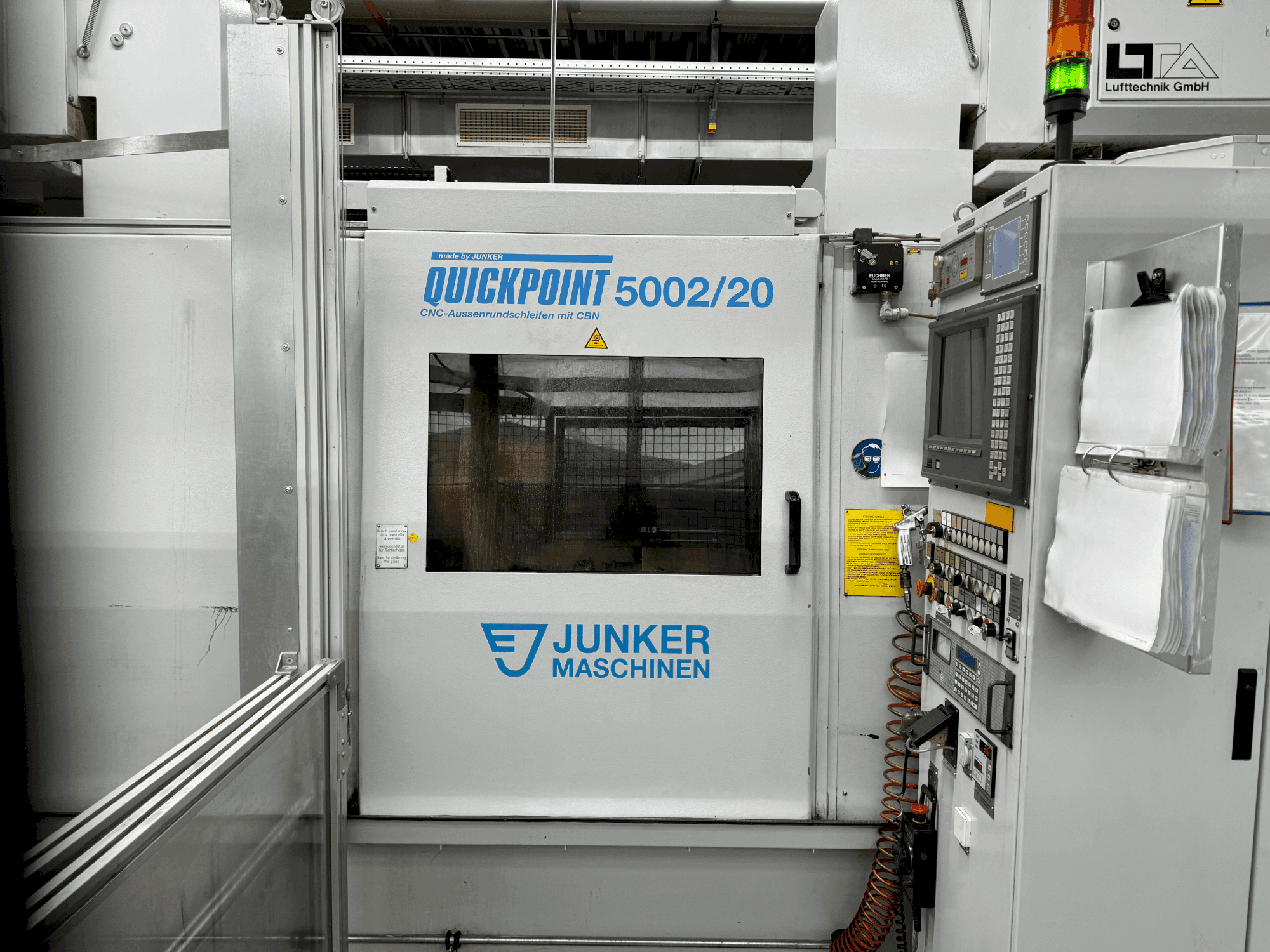

This JUNKER Quickpoint 5002/20 Cylindrical Grinding Machine was manufactured in the year 2000 in Germany. It has a grinding diameter of 280 mm and a grinding length of 900 mm. Equipped with a travel z-axis of 900 mm it can handle a max. workpiece weight of 30 kg. As control unit it has a FANUC 15-TB control. It comes with 2x extraction units (made by LTA) and an oil filter system (built in-house). The machine is currently used as part of a robot line and will be sold because of replacement by a new machine. See photo and video gallery for more impressions.

Overview

brand: JUNKER
year: 2000
MODEL: Quickpoint 5002/20
application type: Grinding
Location: Germany
machine type: Cylindrical Grinding Machine
availability: Sold
control unit brand: FANUC

Technical Information - JUNKER Quickpoint 5002/20

General Data

Measurements width: approx. 5000 mm
Measurements depth: approx. 5000 mm
Measurements height: approx. 2500 mm
Machine weight: approx. 15000 kg

Control Unit

Model: 15-TB
Brand: FANUC

Main drive

Number of axis: 3

Movement

Z-AXIS Movement: 900 mm

Workpiece

Workpiece drm: 250 mm
Workpiece z: 900 mm
Workpiece weight: max. 30 kg

Tail Stock

Pinol diameter: 100 x 430 mm

Additional Equipment

- 2x extraction units (made by LTA)
- Oil filter system largely self-built in collecting tray, system with magnetic separator (probably only conditionally reusable, but currently functional), currently built in a cold split design with internal cooler and external condenser
- Replacement grinding wheels can be handed over if still available at dismantling date
- Further accessories, such as tips, driver systems, measuring probes etc. would also be available and could be given away

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Loading system: manual
- - Workhead: fixed
- - Workpiece spindle // dimension: 100 x 400 mm, permanent grease lubrication, bearing protection by compressed air, drive by servo-motos (c-axis), cone and special fixture mk4 or junker standard collar ⌀ 75mm
- - Tailstock // manually via chain wheel, chucking pressure adjustable via hydraulic
- - Tailstock sleeve // ⌀ 100 x 430 mm, mk 4 resp. Junker standard collar ⌀ 75 mm
- - Grinding table // z-axis (cnc-controlled)
- - Wheelhead // infeed: x-axis (cnc-controlled), horizontal: -6° to + 15°, b-axis (cnc-controlled), vertical: -0. 5°, 0° and +0. 5° (op swivelling)
- - Grinding spindle // ⌀ 180 x 400 mm, flange: ⌀ 190 mm, standard collar: ⌀ 127 mm, driving power: 24 kw
- - Grinding wheel // borazon (cbn) or diamond, diameter: ⌀ 400 mm, bore: ⌀ 127 mm, coating width: 5mm
Qualitative Machine Benefits:
- - Machine always very well maintained
- - Solid and reliable production line
- - Quickpoint machines can be used for a wide range of applications, and at the same time boast impressive productivity
- - Versatility and excellent workpiece quality
- - 3 axes (x, z and b)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
