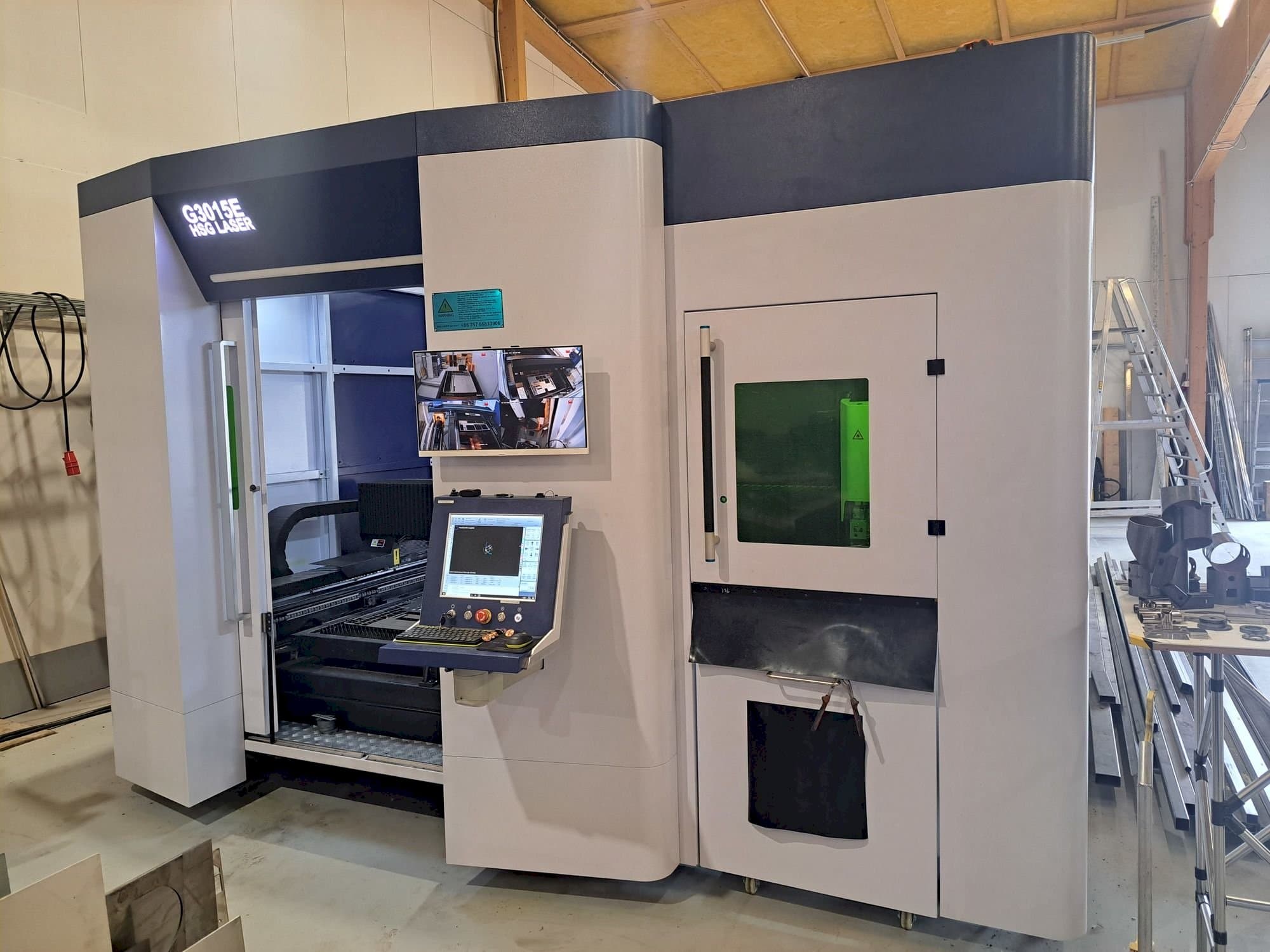

HSG G3015E-22EQ FIBER Laser and Tube Cutting machine

Show in original language

This HSG G3015E-22EQ FIBER Laser and Tube Cutting machine was manufactured in the year 2020 in China and has 15 cutting hours. The machine has a laser power of 4,0 kW. It comes with IPG laser and PRECITEC cutting head.

Overview

brand: HSG
year: 2020
MODEL: G3015E-22EQ
production hours: 15
application type: Cutting
Location: Finland
machine type: Fiber Laser Cutting Machine
availability: Sold

Technical Information - HSG G3015E-22EQ

General Data

Measurements width: 3900 mm
Measurements depth: 10200 mm
Measurements height: 2650 mm
Machine weight: 9900 kg

Main drive

Laserpower: 4,0 kW

Movement

X-AXIS Movement: 1525 mm
Y-AXIS Movement: 3025 mm
Z-AXIS Movement: 270 mm

Table

Outer length: 3000 mm
Outer width: 1500 mm

Additional Equipment

- IPG laser
- PRECITEC cutting head

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tubes diam. 20-220mm/6000mm.
- - Panasonic servo system, cypcut control/nesting software
- - Incl. Offline nesting for tubes and sheets for pc
- - Showroom machine
- - Cooling unit, dust collector
- - Actual working cutting data installed
- - Cuts carbon steel, stainless steel, aluminium, copper, brass titan etc
- - Ipg laser and precitec cutting head
Qualitative Machine Benefits:
- - High efficient production capacity with fiber laser

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
