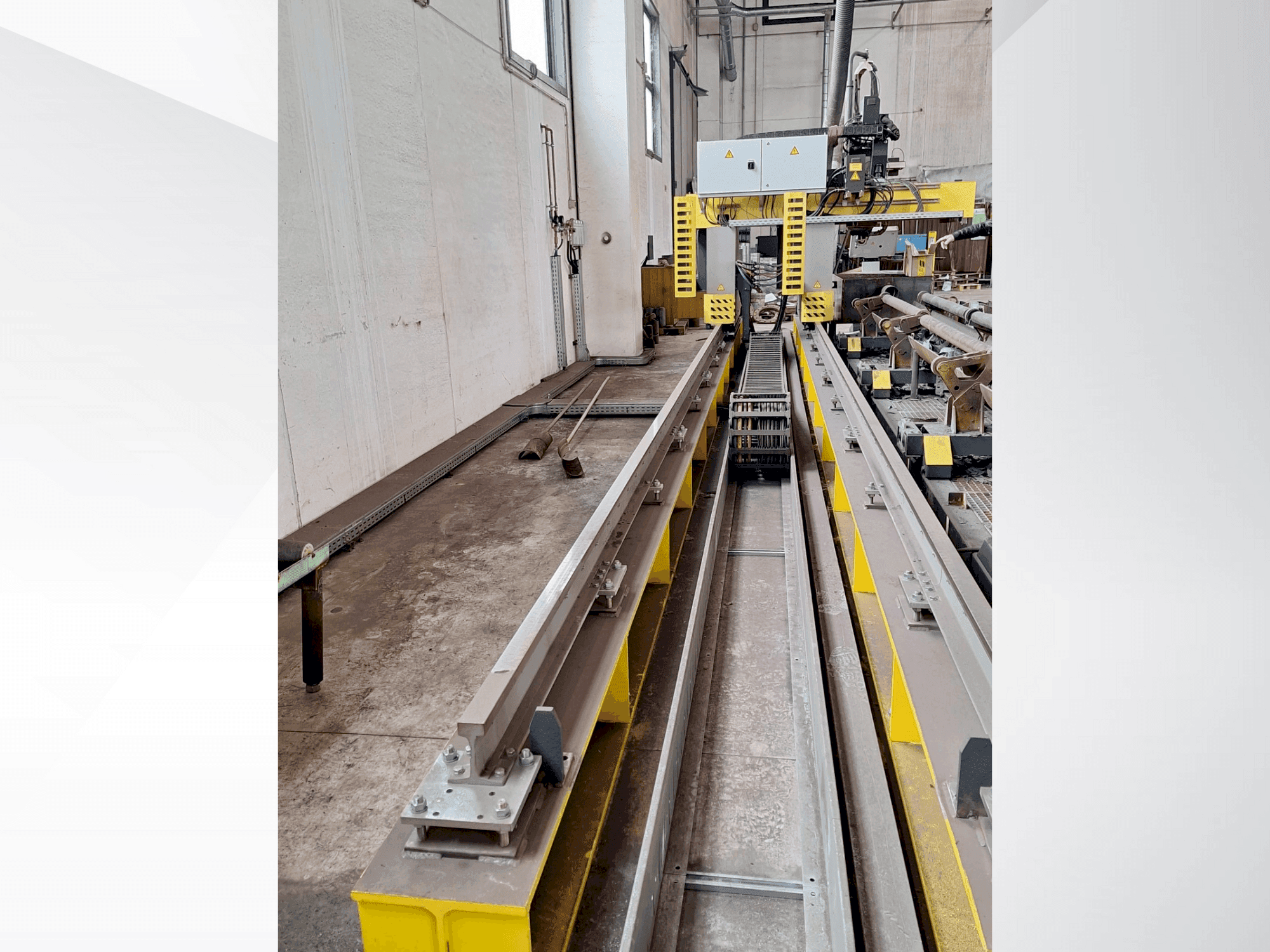

Front view of ESAB SUPRAREX 3100  machine

ESAB - SUPRAREX 3100IT-CUT-ESA-2020-00001

120,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This plasma cutting machine was manufactured in 2020. It features a robust ESAB iSeries300 plasma generator with a 300A output and a VBA WRIST bevel cutting unit capable of intricate bevel and tilt cuts. The ESAB VISION T5 CNC enhances usability with its 18.5" touch screen. Ideal for handling tube lengths up to 8000 mm and diameters from 100 mm to 750 mm. Consider the opportunity to buy this ESAB SUPRAREX 3100 plasma cutting machine. Contact us for more information.

Overview

  • brand: ESAB
  • year: 2020
  • MODEL: SUPRAREX 3100
  • application type: Cutting
  • Location: Italy
  • machine type: Plasma Cutting Machine
  • availability: Immediately
  • control unit brand: ESAB

Technical Information - ESAB SUPRAREX 3100

Control Unit

  • Brand: ESAB
  • Model: VISION T5 CNC

    Additional Equipment

    • - Cutting with Bevel and V and Y Bevels
    • - X-axis with a guide length of 11,000 mm and dual motorization
    • - 1 synchronized axis spindle for tube cutting1 synchronized axis spindle for tube cutting
    • - 3 tube support carriages manually positioned via trapezoidal screw
    • - 1 carriage for the ESAB iSeries300 plasma generator with a maximum power of 300A
    • - 1 VBA WRIST bevel cutting unit
    • - Plasma torch collision protection system
    • - Torch height control with arc voltage and touch sensor for bevel cuts
    • - 1 safety system made with photocells
    • - 1 ESAB PIPE CUTTING programming software

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Maximum tube length: 8000 mm
        • - Tube diameter: 100 mm - 750 mm
        • - Tube thickness: 3 mm - 20 mm
        • - Cutting with bevel and v and y bevels
        • - Flat cutting table equipped with slats, dimensions 1,500 x 1,000 mm
        • - Manuals and ce certification
        • - Tangential control during cutting
        • - Ability to create v or y grooves
        • - Plasma gas options: air/o2/ar-h2/n
        • - Shielding gas options: air/n2/o2/h2o
      • Qualitative Machine Benefits:
        • - Iseries300i plasma generator features:rated current output: 300a
        • - Current adjustment range: 5/300a
        • - Supplied voltage: 180v
        • - Power supply: 380v 50/60hz
        • - Duty cycle at 40°c: 100%
        • - Esab vision t5 cnc with an 18. 5" color touch screen monitor (glove-friendly), including the opwizard application

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
