Bystronic - BySpeed 3015SI-CUT-BYS-2009-00001

Name: Bystronic BySpeed 3015
Brand: Bystronic
SKU: SI-CUT-BYS-2009-00001
Price: 37000 EUR
Availability: InStock

37,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Bystronic BySpeed 3015 For Sale | gindumac.com

Show in original language

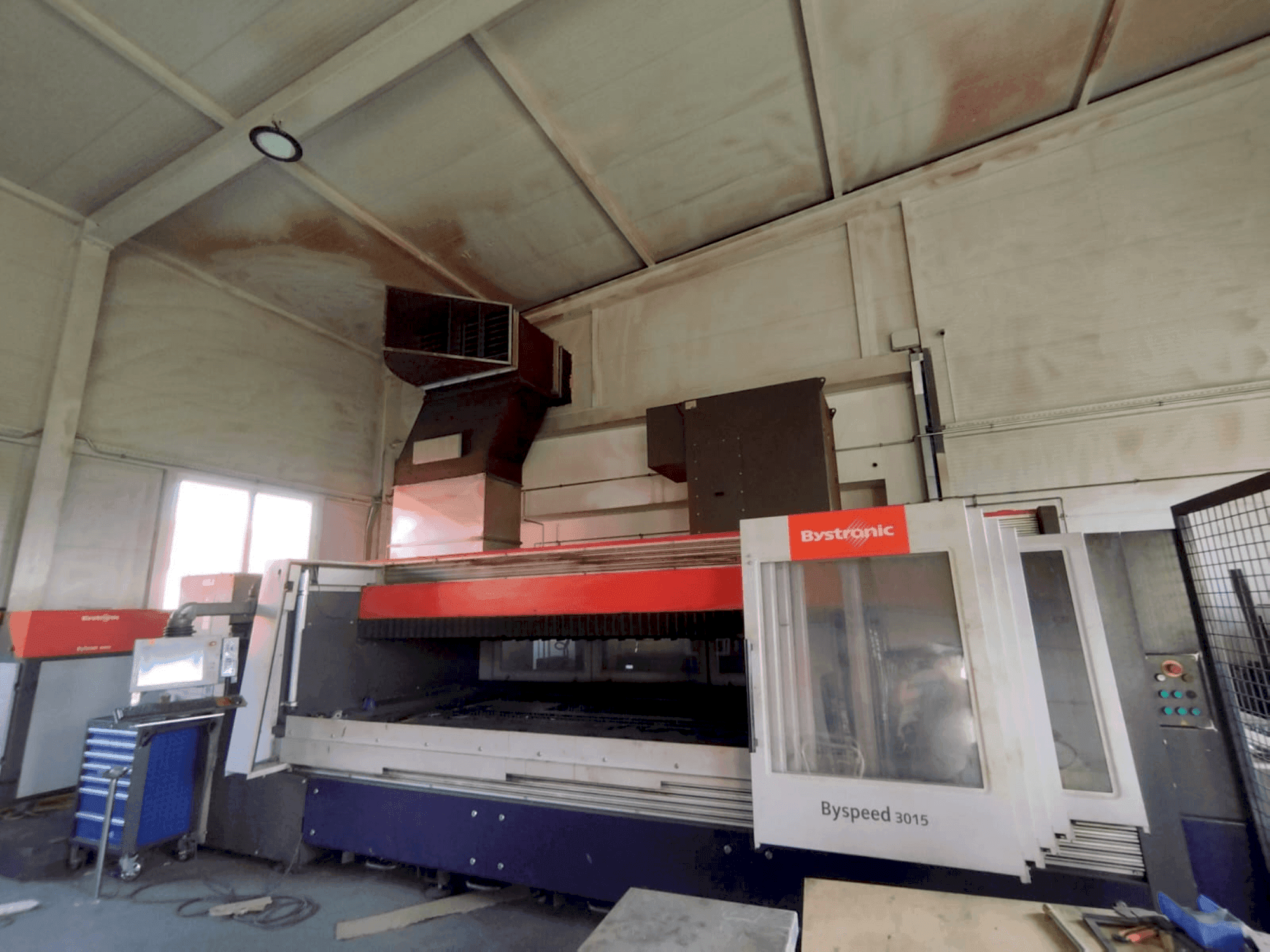

This CO2 laser cutting machine was manufactured in 2009. It features a powerful 4.4 kW CO2 laser, capable of cutting through structural steel up to 25 mm thick and a work table of 3000 x 1500 mm. Ideal for handling diverse materials, it offers high-speed cutting with a maximum speed of 50 m/min. Consider the Bystronic BySpeed 3015 machine we have for sale. For more information about this CO2 laser cutting machine, please reach out to us.

Overview

brand: Bystronic
year: 2009
MODEL: BySpeed 3015
application type: Cutting
Location: Slovenia
machine type: CO2 Laser Cutting Machine
availability: Immediately

Technical Information - Bystronic BySpeed 3015

Main drive

Laserpower: 4.4 kw
Laser type: CO2 Laser

Movement

X-AXIS Movement: 3048 mm
Y-AXIS Movement: 1524 mm
Z-AXIS Movement: 100 mm

Max Material thickness

Steel: 25 mm
Stainless steel: 20 mm
Aluminum: 12 mm

Additional Equipment

- Compressor
- Storage tank
- Ventilation

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Wavelength: 10. 6 μm
- - Laser beam diameter: 20 mm
- - Simultaneous x/y axis positioning speed: 30 m/s²
- - Maximum radial acceleration: 10 m/s²
- - Maximum cutting speed: 50 m/min
- - Maximum sheet thickness (brass): 3 mm
- - Maximum sheet thickness (copper): 3 mm
- - Maximum sheet thickness (titanium): 3 mm
- - Maximum weight of the workpiece: 890 kg
- - Capable of cutting various materials with different thicknesses
Qualitative Machine Benefits:
- - High positioning accuracy and speed
- - Comprehensive additional equipment for efficient operation
- - Total required power: 65 kw
- - Power supply: 3×400 v; 50 hz

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
