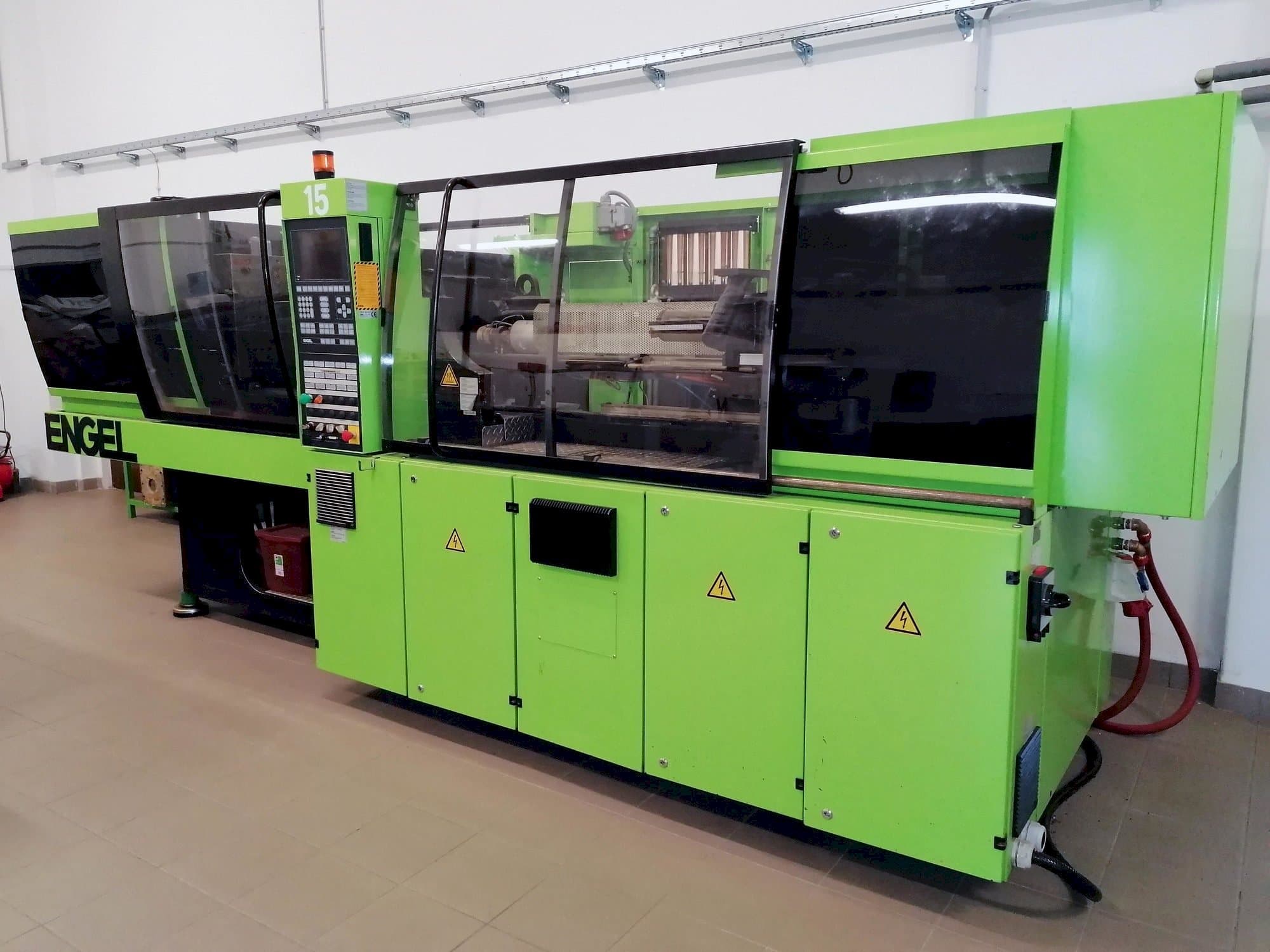

Engel Victory 500/90 Power Injection moulding machine

Show in original language

This Engel Victory 500/90 Power Injection moulding machine was manufactured in the year 2003 and has 40400 production hours. It is equipped with an Engel CC 100 color control unit. The machine has a clamping force of 900 kN, is in good condition and well maintained.

Overview

brand: Engel
year: 2003
MODEL: Victory 500/90 Power
production hours: 40400
application type: Injection Moulding
Location: Hungary
machine type: Electrical Injection Moulding Machine
availability: Sold
control unit brand: Engel

Technical Information - Engel Victory 500/90 Power

General Data

Measurements width: 1500 mm
Measurements depth: 4900 mm
Measurements height: 1900 mm
Machine weight: 6800 kg

Control Unit

Brand: Engel
Model: CC 100 color

Injection Unit

Screw diameter: 45 mm

Clamping unit

Clamping force: 900 kN
Mould height min: 300 mm
Ejector stroke: hydraulic MM

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Dosing volume: 318 ccm
- - Tie bar distance: tie bar-less machine
- - Size of clamping platens: 740 x 680 mm
- - Plate distance max. : 800 mm
- - Clamping unit: hydraulic
- - Hydraulic core pull x 1
- - Pump/motor: 18,5 kw
- - Heating power: 12,2 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
