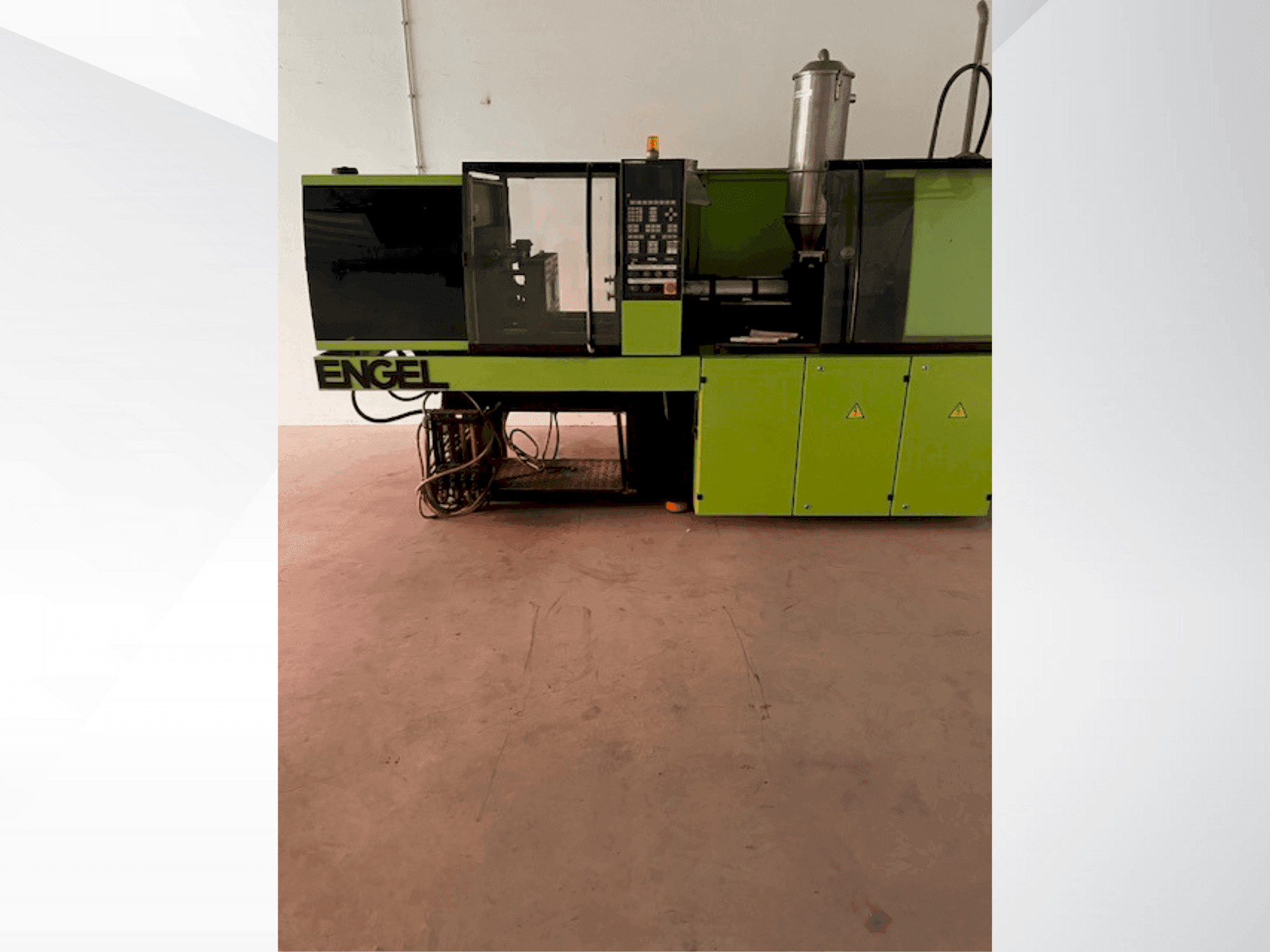

Front view of Engel ES200/40 HLS  machine

Engel - ES200/40 HLSBE-INJ-ENG-1995-00001

9,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Engel ES200/40 HLS injection moulding machine was manufactured in 1995. It features a clamping force of 400 kN, a stroke movable clamping plate of 350 mm, and a maximum distance between plates of 530 mm. With a pump drive power of 11 kW and a total weight of 3200 kg, the Engel ES200/40 HLS machine we have for sale represents a robust opportunity for efficient production. Contact us for more information.

Overview

  • brand: Engel
  • year: 1995
  • MODEL: ES200/40 HLS
  • production hours: 39904
  • application type: Injection Moulding
  • Location: Belgium
  • machine type: Hydraulic Injection Moulding Machine
  • availability: Immediately

Technical Information - Engel ES200/40 HLS

General Data

  • Machine weight: 3200 KG

Injection Unit

  • Screw speed: 20-480 rpm
  • Heating capacity: 6.8 kw
  • Adjustable heating zones: 4

Clamping unit

  • Clamping force: 400 kn
  • Mould height min: 180 mm
  • Ejector stroke: 100 mm
  • Ejector force for / back: 30 kn

Media

  • Pump drive power: 11 kw

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Stroke movable clamping plate: 350 mm
      • - Max. Distance between plates: 530 mm
      • - Clamping plates - total dimensions: 550 x 330 mm
      • - Extended clamping plate: 550 x 430 mm
      • - Dry cycle: 1. 5 sec
      • - Oil filling: 115 l
      • - Stroke nozzle: 200 kn
      • - Nozzle contact force: 28 kw
      • - Dosing length: 140 r/min

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
