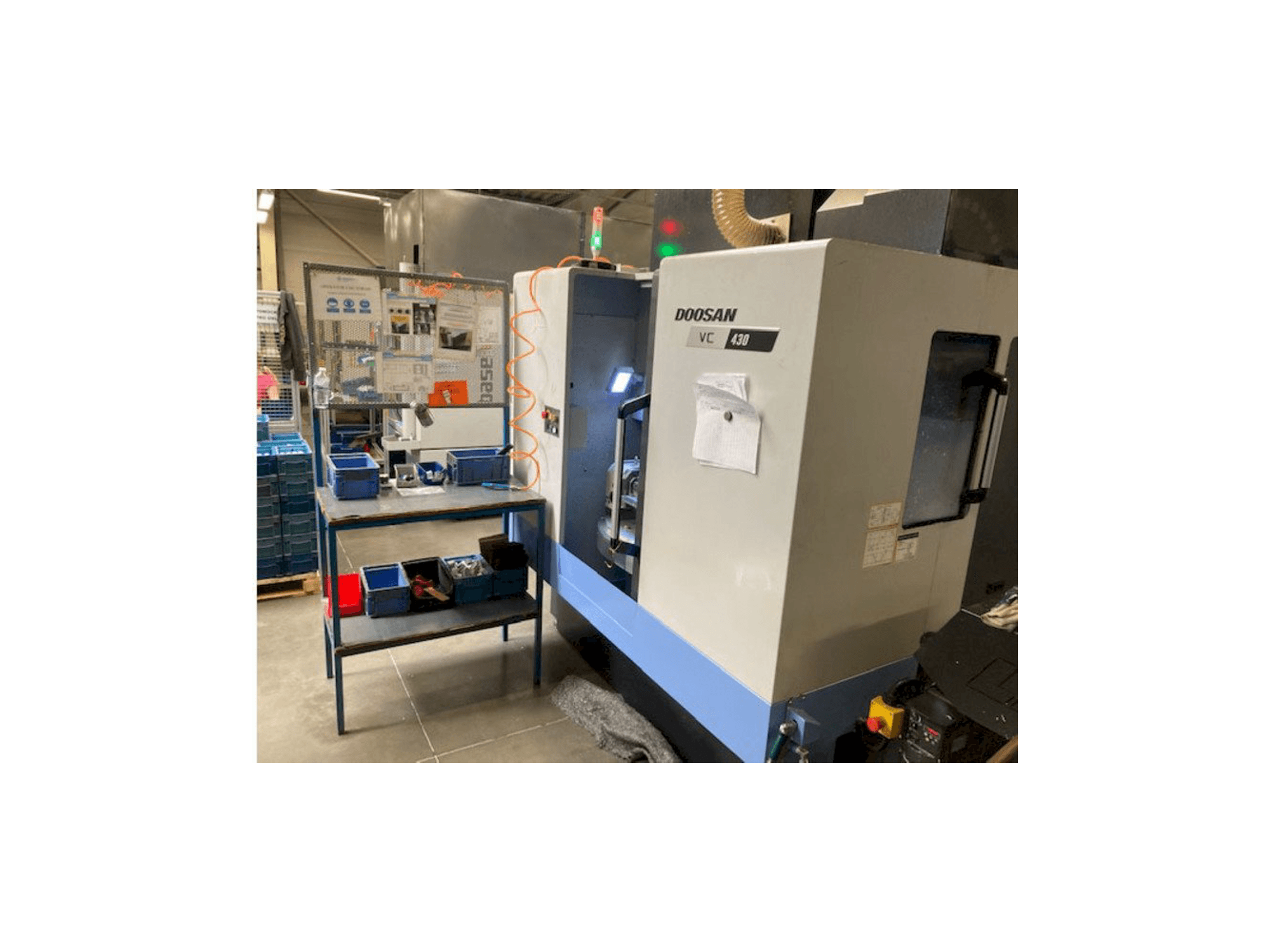

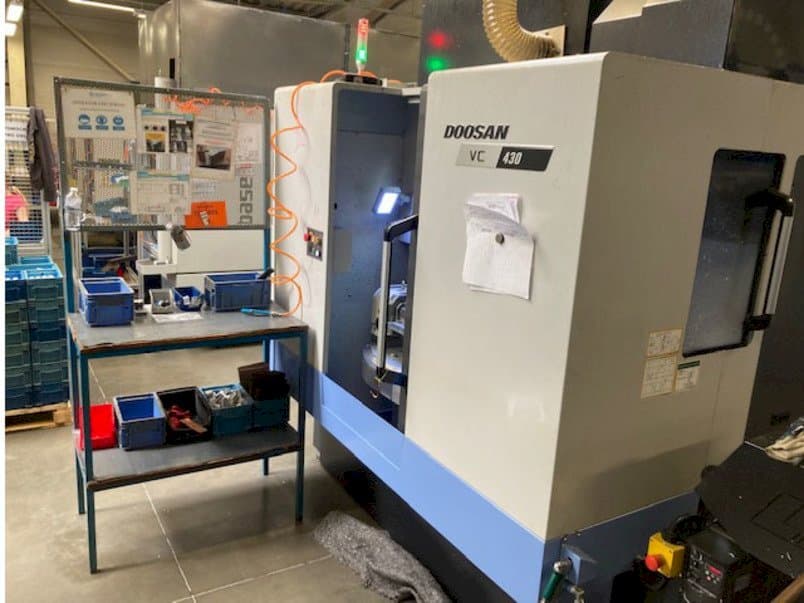

Doosan VC 430 Vertical Machining center

Show in original language

This Doosan VC 430 Vertical Machining center was manufactured in the year 2018 in Korea and has 4340 working hours, of which 980 are spindle hours. It is equipped with a Fanuc i-Series control unit and has 4 axis. The machine has a spindle speed of 10000 rpm, is in very good condition and well maintained.

Overview

brand: DOOSAN
year: 2018
MODEL: VC 430
production hours: 4340
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: Fanuc

Technical Information - DOOSAN VC 430

General Data

Machine weight: 7800 kg

Control Unit

Brand: Fanuc
Model: i-Series

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN
Spindle motor power: 18.5/15 kW
Number of axis: 4

Movement

X-AXIS Movement: 560 mm
Y-AXIS Movement: 430 mm
Z-AXIS Movement: 570 mm

Workpiece

Workpiece weight: 300 kg

Table

Outer length: 712 mm
Outer width: 490 mm

Tools

Slots in storage: 30
Max weight: 8 kg
Max tool diameter: 80 mm
Max tool length: 220 mm
Type of tool holder: ISO 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 2 pallets
- - Incl. 4th axis
- - Through spindle coolant
Qualitative Machine Benefits:
- - Very good condition, low hours!

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
