- Used DOOSAN Lynx 2100LSYA - 2020 - Lathe for sale | gindumac.com

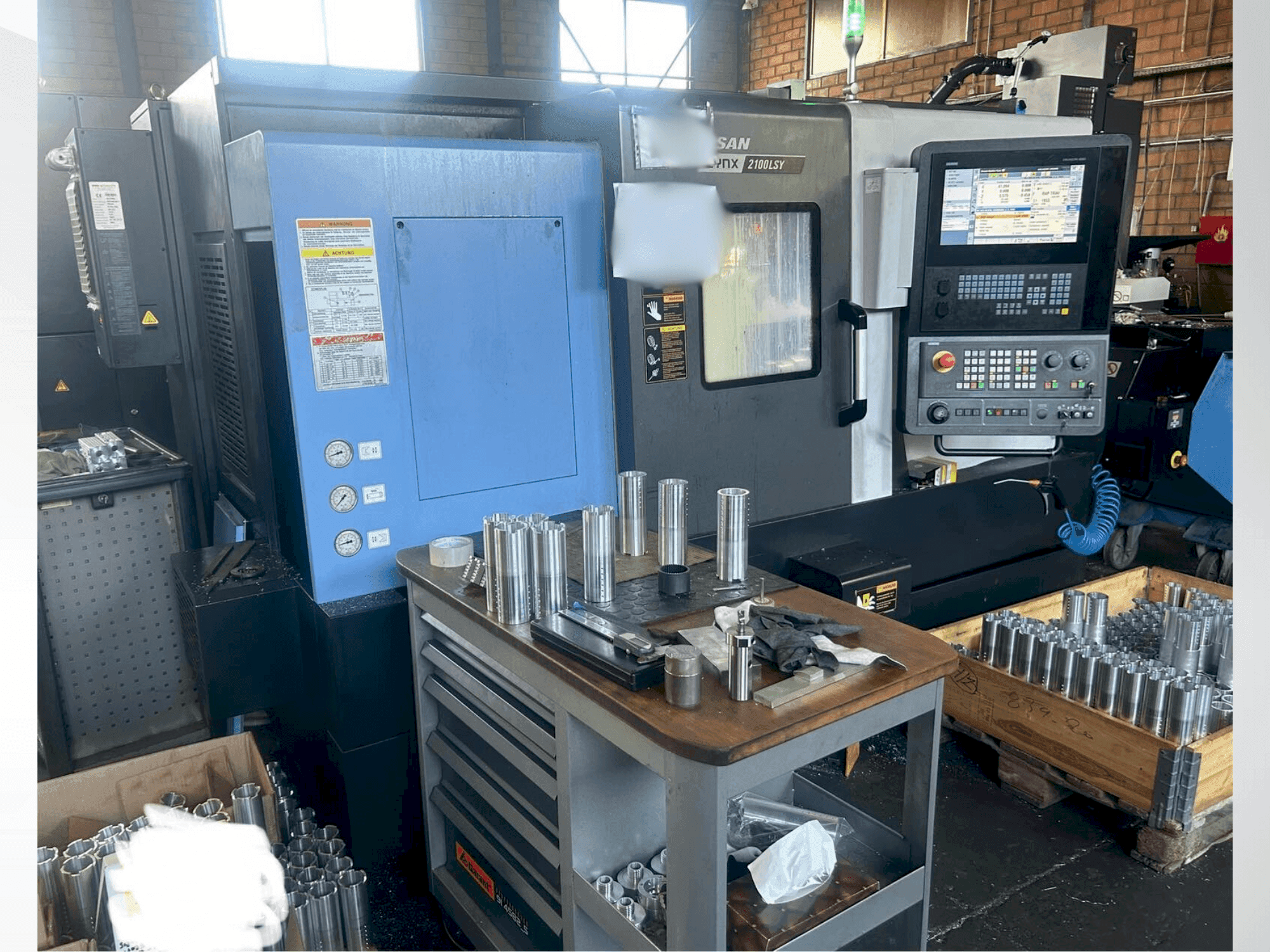

This 5-axis DOOSAN Lynx 2100LSYA lathe was manufactured in 2020. Featuring a SIEMENS SINUMERIK 828D control, it offers spindle speeds up to 6000 rpm and includes a sub-spindle for versatile operations. With a max turning diameter of 300 mm and length of 510 mm, it also has driven tools and rapid traverse rates up to 36 m/min. Consider this Doosan Lynx 2100LSYA lathe, ideal for advanced turning tasks. For more information, please reach out to us.
Overview
- brand: DOOSAN
- year: 2020
- MODEL: LYNX 2100LSYA
- application type: Turning
- Location: Greece
- machine type: Lathe
- availability: Immediately
- control unit brand: SIEMENS
Technical Information - DOOSAN LYNX 2100LSYA
Control Unit
- Brand: SIEMENS
- Model: SINUMERIK 828D
Main drive
- Number of spindles: 2
- Spindle speed range: 6000 1/MIN
Movement
- X-AXIS Movement: 205 mm
- X-AXIS Working Feed: 30 m/min
- Y-AXIS Movement: 105 mm
- Y-AXIS Working Feed: 10 m/min
- Z-AXIS Movement: 560 mm
- Z-AXIS Working Feed: 36 m/min
Turret
- Number of turrets: 1
Media
- Chip conveyor: Yes
Additional Equipment
- - OD and face tool holder of main spindle// Double OD and face tool holder of main and sub spindle
- - ID tool holder of main spindle// Double ID tool holder of sub spindle
- - Triple ID tool holder
- - U-Drill cap of Main and sub spindle
- - Straight (short) milling tool unit
- - Anglular an Anglular (offset) milling tool unit
- - Boring tool sleeves of main and sub spindle// U-drill sleeves
- - Milling adapters
- - SERVO 24ST turret (mechanism/station)
- - BMT-45P 20/32 mm Holder mounting type tool size (turning/boring)
Additional Information
- Technical Machine Benefits:
- - Maximum turning diameter: 300 mm
- - Maximum turning length: 510 mm
- - Sub-spindle
- - Driven tools
- - Counter spindle
- - High-speed operations with multiple spindle configurations.
- - Chucks of the main spindle has hard jaws and that of sub spindle has a set of soft jaws.
- - Machine is also equiped with an extra module from siemens for in process tool measuring cycles for tool breakage detection.
- Qualitative Machine Benefits:
- - Dvanced control system ensures high precision and operational efficiency.
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
