➤ Used CHEN HSONG JM200-MK6e For Sale | gindumac.com

Show in original language

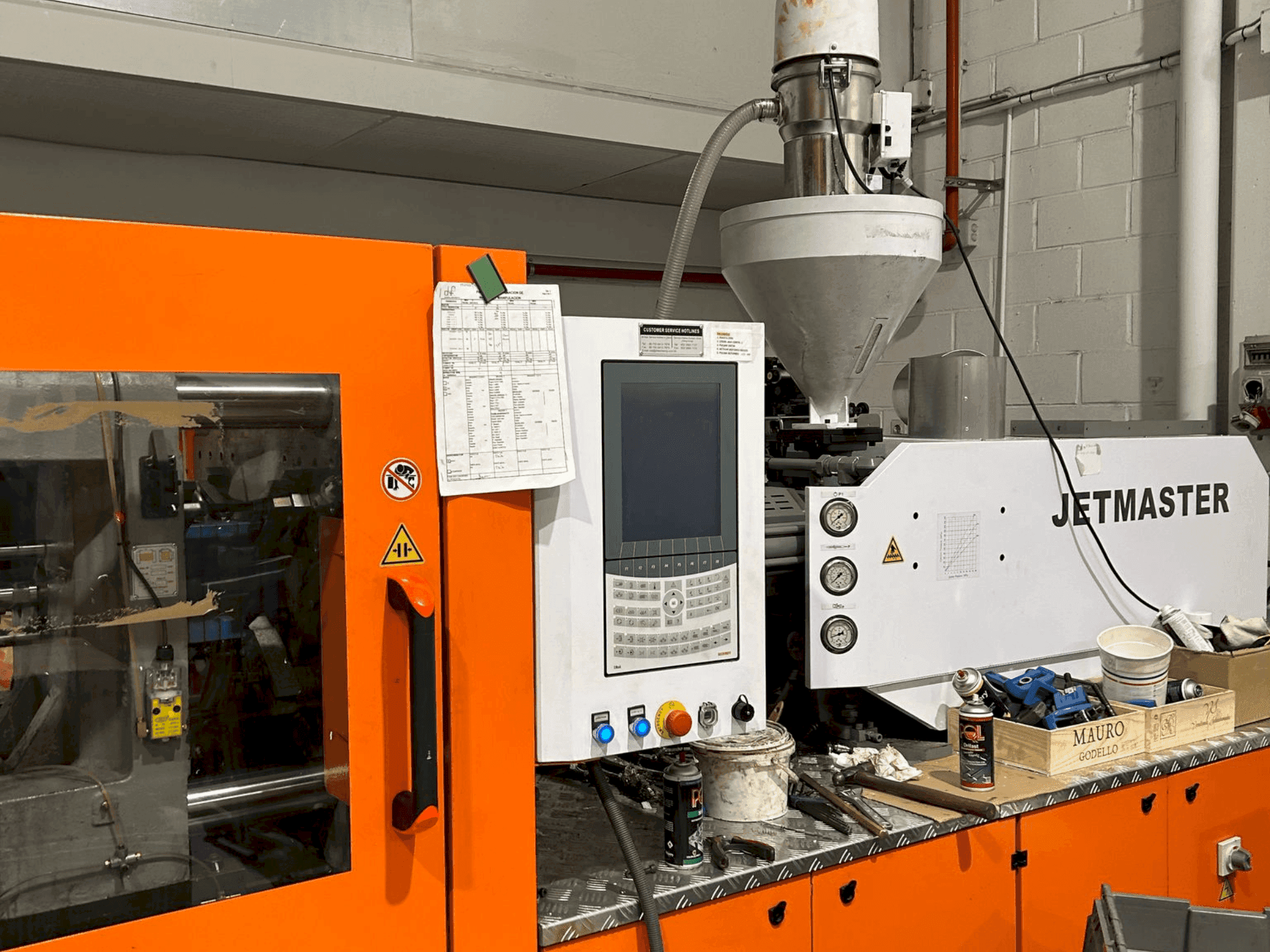

This CHEN HSONG JM200-MK6e was manufactured in 2023. It is a hydraulic injection moulding machine, ideal for precision plastic processing. Consider the opportunity to buy this CHEN HSONG JM200-MK6e hydraulic injection moulding machine. Contact us for further details regarding this machine.

Overview

brand: CHEN HSONG
year: 2023
MODEL: JM200-MK6e
application type: Injection Moulding
Location: Spain
machine type: Hydraulic Injection Moulding Machine
availability: Immediately

Technical Information - CHEN HSONG JM200-MK6e

General Data

Measurements width: 1500 mm
Measurements depth: 5800 mm
Measurements height: 2100 mm
Machine weight: 5700 kg

Injection Unit

Screw diameter: 46 / 52 / 60 mm
Injection pressure: 2295 / 1796 / 1349 kgf/cm² BAR
Screw speed: 260 rpm

Clamping unit

Clamping force: 200 tons KN
Opening stroke: 490 mm
Max open daylight: 1040 mm
Ejector stroke: 150 mm
Ejector force for / back: 6.7 tons

Media

Pump drive power: 24 kW
Oil tank: 320 L

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tie bar distance (hxv): 530 x 530 mm
- - Max. Mold thickness: 550 mm
- - Min. Mold thickness: 180 mm
- - Center ring diameter: 160 mm
- - System pressure: 17. 5 mpa
- - Heater power: 15. 5 kw
- - Temperature control zones: 3 + nozzle

Extra information

- Injection Unit Shot Volume: 431 / 551 / 734 cm³ Injected Weight (PS): 393 / 502 / 668 g Screw L/D Ratio: 23.7 / 21.0 / 18.2 Injection Rate (PS): 141 / 181 / 241 g/s Screw Stroke: 260 mm Nozzle Contact Force: 4.5 tons Nozzle Stroke: 280 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
