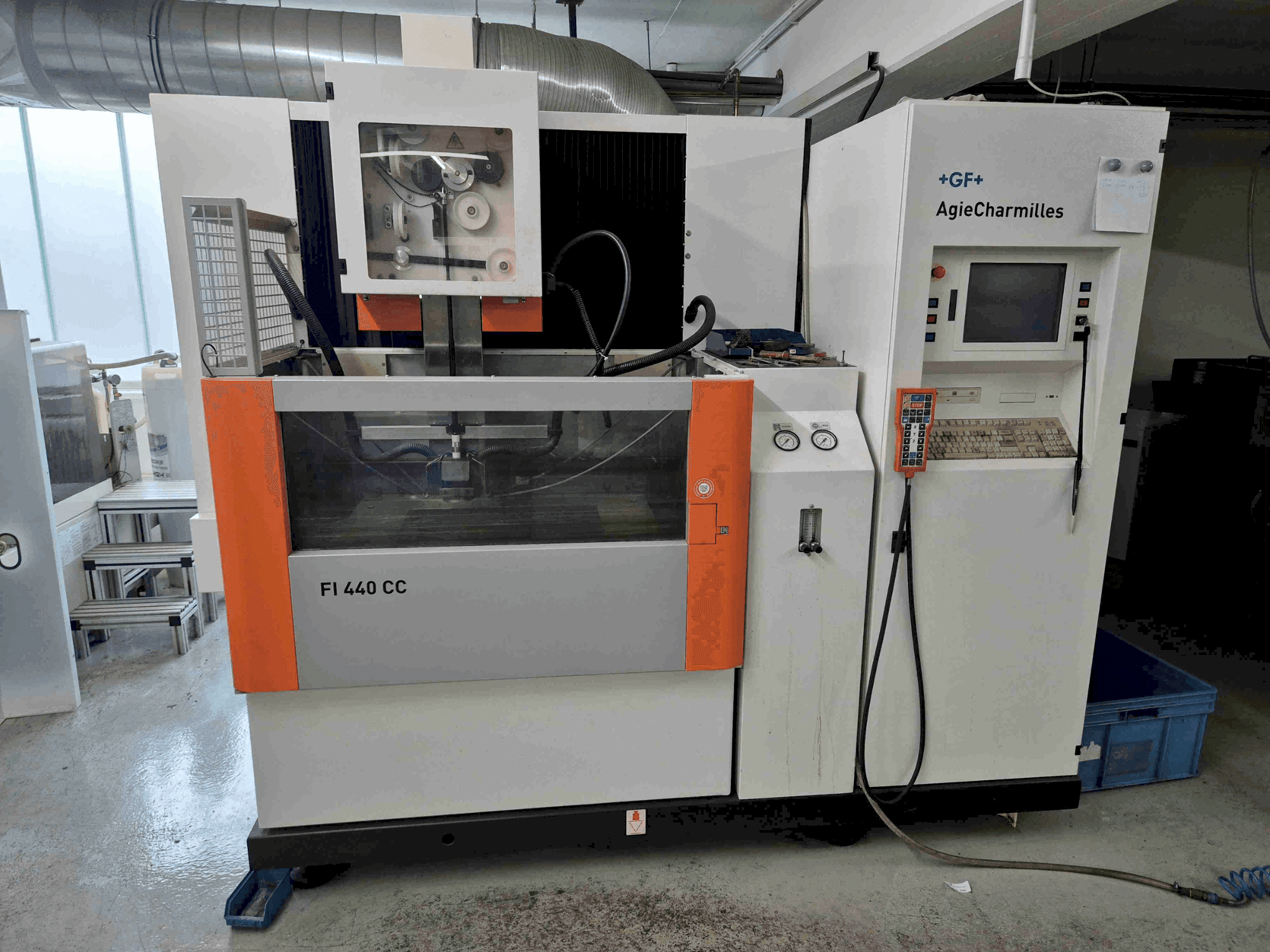

This 5-axis CHARMILLES FI 440 CC wire EDM machine was manufactured in 2008. It features a large workpiece capacity up to 1200x700x400mm and a maximum weight of 1500kg. The machine dimensions are 2600x2810x2080 mm, and it includes a CleanCut high-speed generator with a cutting speed of 400mm²/min. If you are looking to get high-quality EDM capabilities, consider the CHARMILLES FI 440 CC machine we have for sale. Contact us for more information about this machine.
Overview
- brand: CHARMILLES
- year: 2008
- MODEL: FI 440 CC
- application type: EDM
- Location: Germany
- machine type: Wire EDM Machine
- availability: Immediately
Technical Information - CHARMILLES FI 440 CC
General Data
- Measurements width: 2810 MM
- Measurements depth: 2600 MM
- Measurements height: 2080 MM
- Machine weight: 4450 KG
Main drive
- Number of axis: 5
Movement
- X-AXIS Movement: 550 mm
- Y-AXIS Movement: 350 mm
- Z-AXIS Movement: 400 mm
- V-Axis Movement: 350 mm
- U-Axis Movement: 550 mm
Workpiece
- Workpiece x: 1200 mm
- Workpiece y: 700 mm
- Workpiece z: 400 mm
- Workpiece weight: 1500 kg
Injection Unit
- Stroke volume: 1200 CM³
Additional Equipment
- - CleanCut High-Speed Generator
Additional Information
- Technical Machine Benefits:
- - Min. /max. Dielectric distance: 0/435 mm
- - Filter cartridges: 4
- - Total volume of deionising resin: 20 l
- - Cutting speed: 400 mm²/min
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
