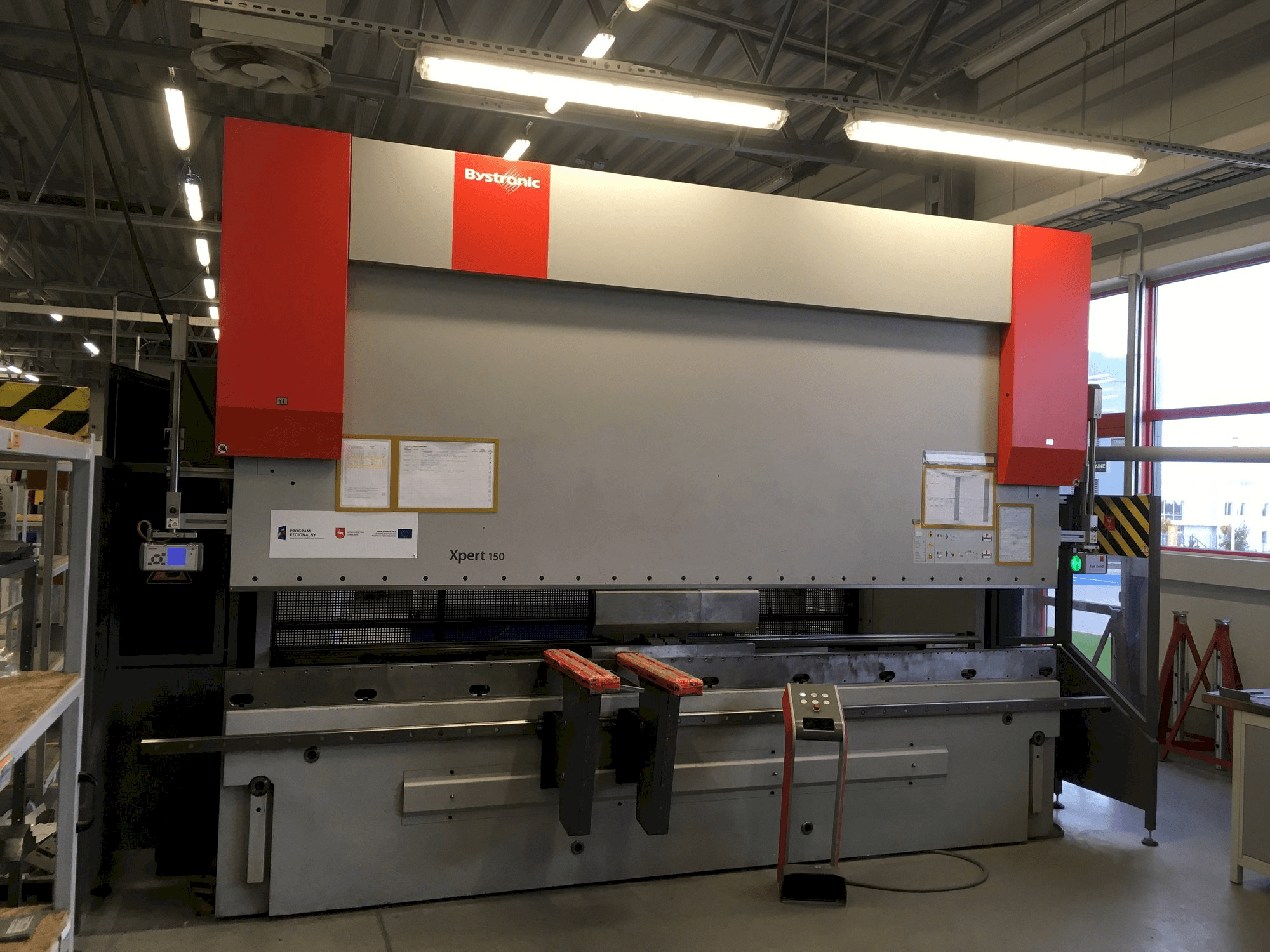

Bystronic Xpert 150/4100 Bending machine

Show in original language

This Bystronic Xpert 150/4100 Bending machine was made in 2014 in Germany. It has a production record of 8130 hours since then. It is equipped with a control unit of the same brand. This machine operates with a pressing force of 1500 kN, and a bending length of 4100 mm. It presents good conditions. One set of standard tools (punch and dies) comes with this machine.

Overview

brand: Bystronic
year: 2014
MODEL: Xpert 150/4100
production hours: 8130
application type: Bending
Location: Poland
machine type: Press Brake
availability: Sold
control unit brand: BYSTRONIC

Technical Information - Bystronic Xpert 150/4100

General Data

Measurements width: 5100 mm
Measurements depth: 2050 mm
Measurements height: 2780 mm
Machine weight: 14500 kg

Control Unit

Model: Xpert 150/4100
Brand: BYSTRONIC

Main drive

Pressing force: 1500 kN
Bending length: 4100 mm
Number of axis: 4

Media

Main electronic connection: 3 PH 400V / 50Hz
Power consumption: 15 kW

Additional Equipment

- Dies: V16 / 30 ° L = 1000mm 1pc folding, V16 / 30 ° L = 515mm 1 item, V8S / 30 ° L = 1000mm 1pc folding, V8S / 30 ° L-515 2 pcs.,
- Dies: V32 / 30 ° L = 1000mm 1pc folding, V32 / 30 ° L = 515mm 1 pc, V50 / 60 ° L = 1000mm 1 pc foldable, V900 / 10 L = 1000 H = 85mm 1pc folding, V900 / 10 L = 515 H = 85mm 1pc
- Punches: P4 R / 85 ° L = 1000 H = 250 1 piece R = 1.5 folded, P4 R / 85 ° L = 515 H = 250 1 item R = 1.5, P4 R / 85 ° L = 100 H = 250 2 pcs. R = 1.5 weaned Left + Right
- Punches: P7 R / 30 ° L = 1000 H = 250 1 piece R = 3 folded, P7 R / 30 ° L = 515 H = 250 1 item R = 3, P7 R / 30 ° L = 100 H = 250 1 item R = 3 offset Left + Right
- Punches: P12 R L = 1000 H = 110 pcs R = 8 + fixing, P900 / 10 R / 30 ° L = 1000 H = 175 1 piece R = 1
- Punches: P900 / 10 R / 30 ° L = 515 H = 175 4 pcs R = 1
- Punches: S1 / 73 L = 1000 increase for the matrix
- Punches: S1-73 L = 515 increases for matrix

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 4 axis press brake with cnc for axis: y1, y2, x, r and manual movements for z1 and z2 axis
- - Bystronic’s manual clamping system for punch and dies with hand tightening screws
- - Equipped with a compensation system
- - 2 front supports for parts,
- - System fastbend bystronic
- - Additional console with foot switch for a second operator
Qualitative Machine Benefits:
- - Perfect technical condition
- - The machine was used for small production only
- - null

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
