ZPS - MCFV 1260 NTCZ-MIL-ZPS-2001-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

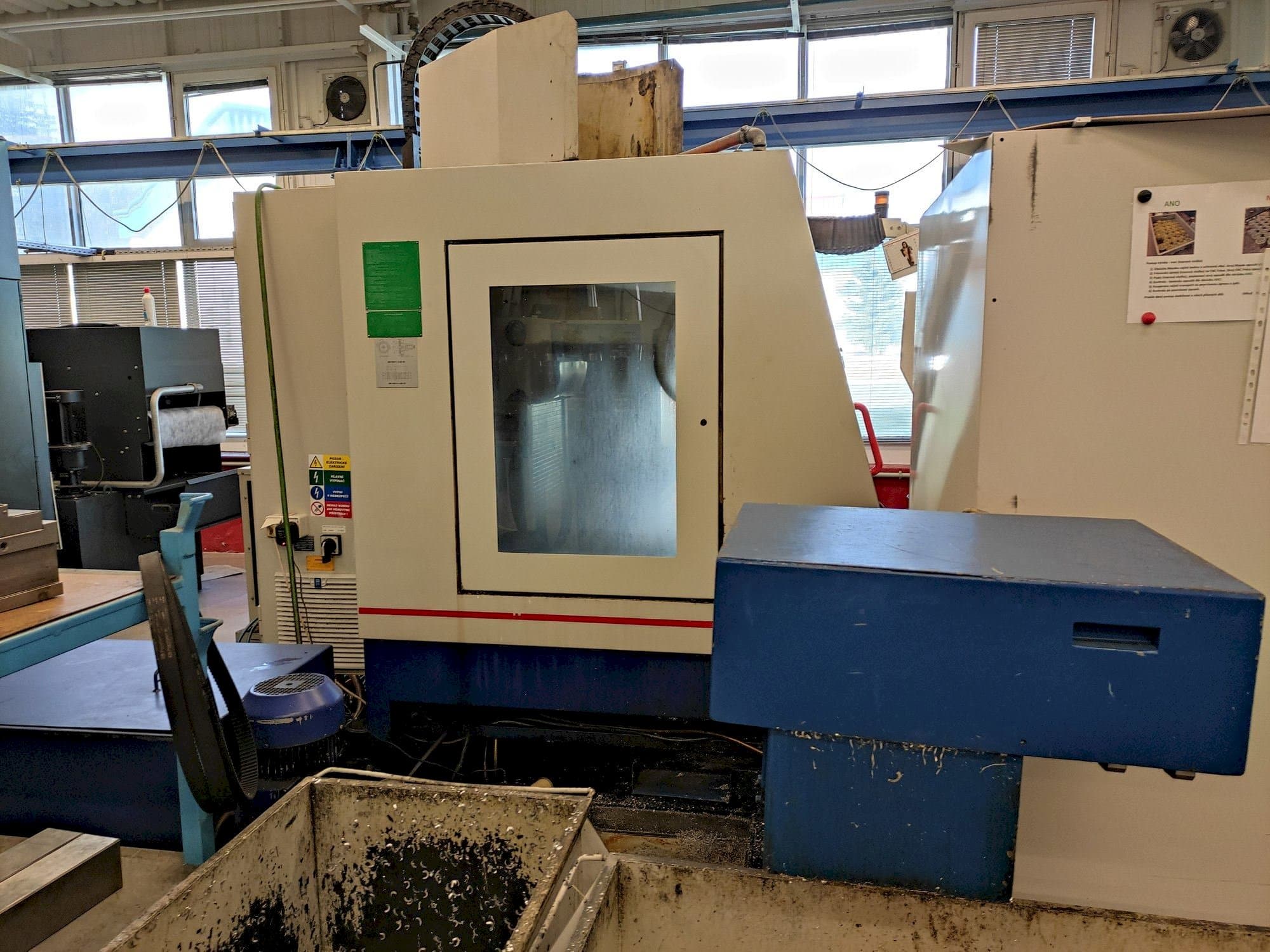

This ZPS MCFV 1260 NT Vertical Machining Center was made in the Czech Republic in the year 2001. It has been working for 72917 hours, of which 33404 are programming hours. This 3 axis machine is operated through a HEIDENHAIN TNC 426 M control unit. It can perform with a spindle speed up to 6000 rpm. This machine replaced its spindle in 2012. It has been mainly been producing moulds. This machine is in very good condition and has been regularly maintained.

Overview

brand: ZPS
year: 2001
MODEL: MCFV 1260 NT
production hours: 72917
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - ZPS MCFV 1260 NT

General Data

Measurements width: 3200 mm
Measurements depth: 2120 mm
Machine weight: 8000 kg

Control Unit

Model: TNC 426 M
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Spindle motor power: 22.5/17 kW (30/100%)
Number of axis: 3

Movement

X-AXIS Movement: 1270 MM
Y-AXIS Movement: 610 MM
Z-AXIS Movement: 760 MM

Workpiece

Workpiece weight: 1350 KG

Table

Outer length: 1450 MM
Outer width: 590 MM
Max distance between vertical spindle and table: 150 - 910 mm

Tools

Slots in storage: 32
Max weight: 12 KG
Max tool diameter: 130/220 MM
Max tool length: 300 MM
Type of tool holder: ISO 50

Media

Power consumption: 32 KVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine history

End product: Moulds
Industries: Mould&die

Machine Benefits

Technical Machine Benefits:
- - Coolant
- - Paper band filtration
Qualitative Machine Benefits:
- - Very good condition, regularly maintained.
- - New spindle installed in 2012

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
