Zhejiang Sound Machinery Manufacture FT 580 Injection moulding machine

Show in original language

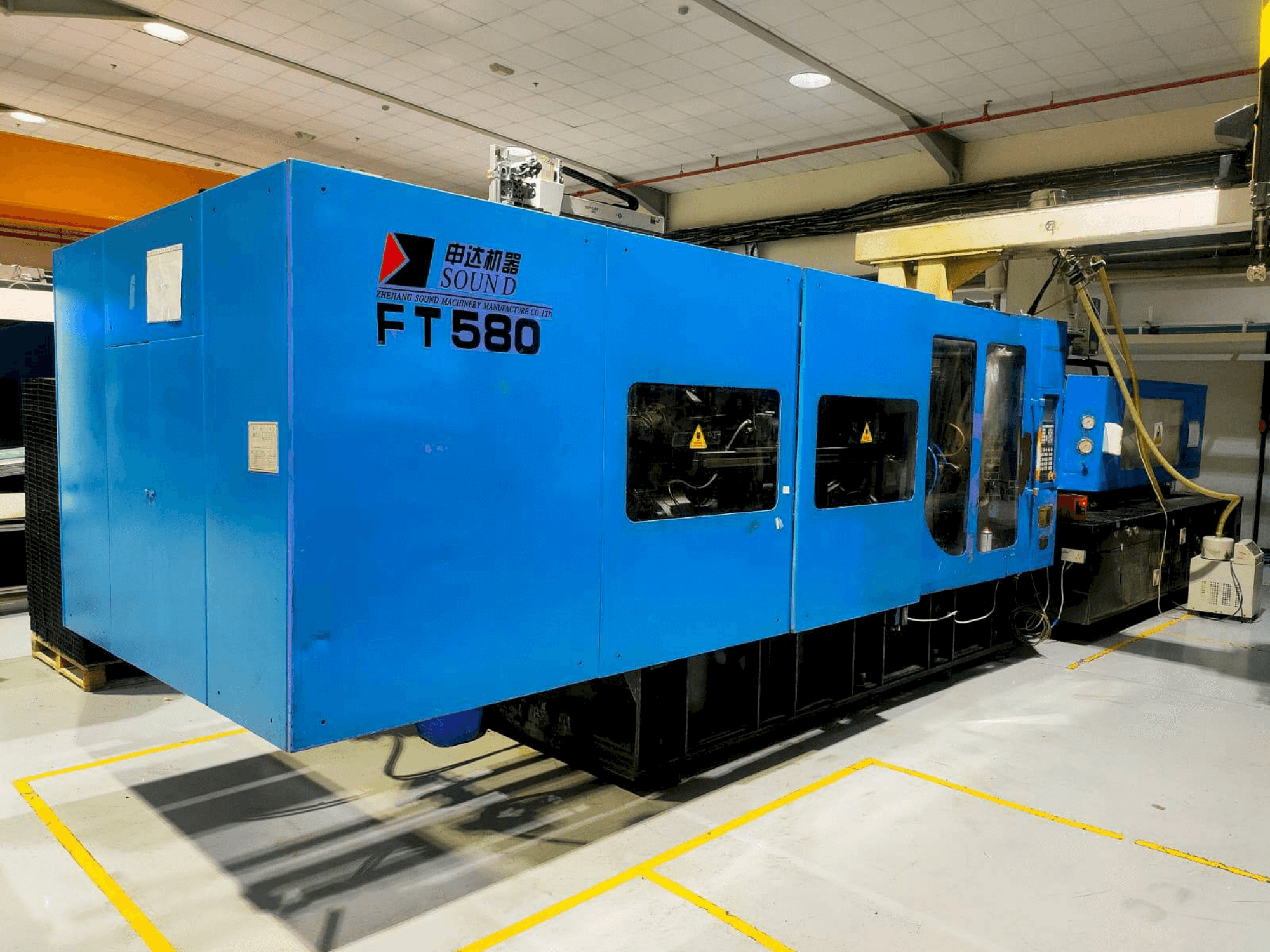

This Zhejiang Sound Machinery Manufacture FT 580 Injection moulding machine was manufactured in the year 2008. The machine has a clamping force of 5800 kN and a screw diameter of 90 mm.

Overview

brand: Zhejiang Sound Machinery Manufacture
year: 2008
MODEL: FT 580
application type: Injection Moulding
Location: United Arab Emirates
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Zhejiang Sound Machinery Manufacture FT 580

General Data

Measurements width: 4100 mm
Measurements depth: 2000 mm
Measurements height: 1700 mm
Machine weight: 3000 kg

Injection Unit

Screw diameter: 90 mm

Clamping unit

Clamping force: 5800 kN
Mould height min: 300 mm
Mould height max: 820 mm
Ejector stroke: 200 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Screw l/d ratio l/d - 20:6
- - Shot size (theoretical) cm³ - 2805
- - (ps) injection weight g - 2560 g
- - Injection pressure mpa - 156
- - Injection rate into air cm³/s - 557. 2
- - Injection stroke mm - 320
- - Injection speed mm/s - 185
- - Screw speed rpm - 180
- - Clamping stroke mm - 830
- - Space between tie bars mm - 830×830
Qualitative Machine Benefits:
- - Max. Pump pressure: 17. 5 mpa
- - Pump motor power : 55. 7 kw
- - Heater power: 32. 65 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
