YCM X 1800 Milling Machine

Show in original language

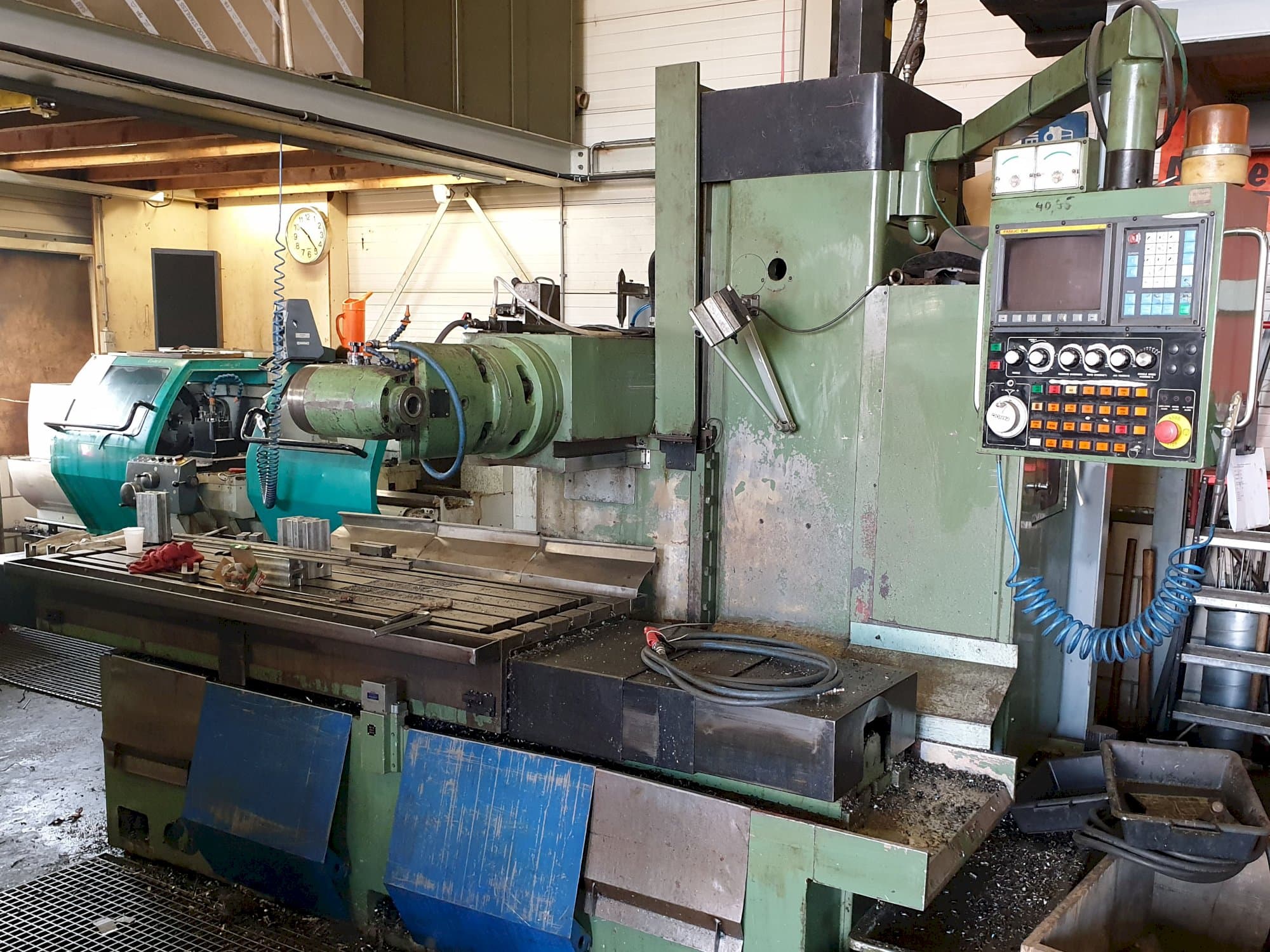

This YCM X 1800 is a Milling Machine from 1988, produced in Germany with a production time of 1680 hours. Equipped with a FANUC OM Control unit, this machine has been working with steel up to 25 mm of thickness during the past. It stands out due to its wide open table for big parts to mill and its turn head performance. It presents very good conditions, as it works fluidly and efficiently with no downtime.

Overview

brand: YCM
year: 1988
MODEL: X 1800
production hours: 1680
application type: Milling
Location: Netherlands
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - YCM X 1800

General Data

Measurements width: 2300 mm
Measurements depth: 2000 mm
Measurements height: 2400 mm
Machine weight: 15000 kg

Control Unit

Model: OM
CNC main language: English
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 2250 rpm 1/MIN

Movement

X-AXIS Movement: 1800 mm
Y-AXIS Movement: 740 mm
Z-AXIS Movement: 900 mm

Table

Outer length: 2000 mm
Outer width: 600 mm
Number of tslots: 1
Distance between: 1 mm

Tools

Slots in storage: 1
Max weight: 7 kg
Max tool diameter: 35 mm
Max tool length: 150 mm

Media

Main electronic connection: 240 V

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
