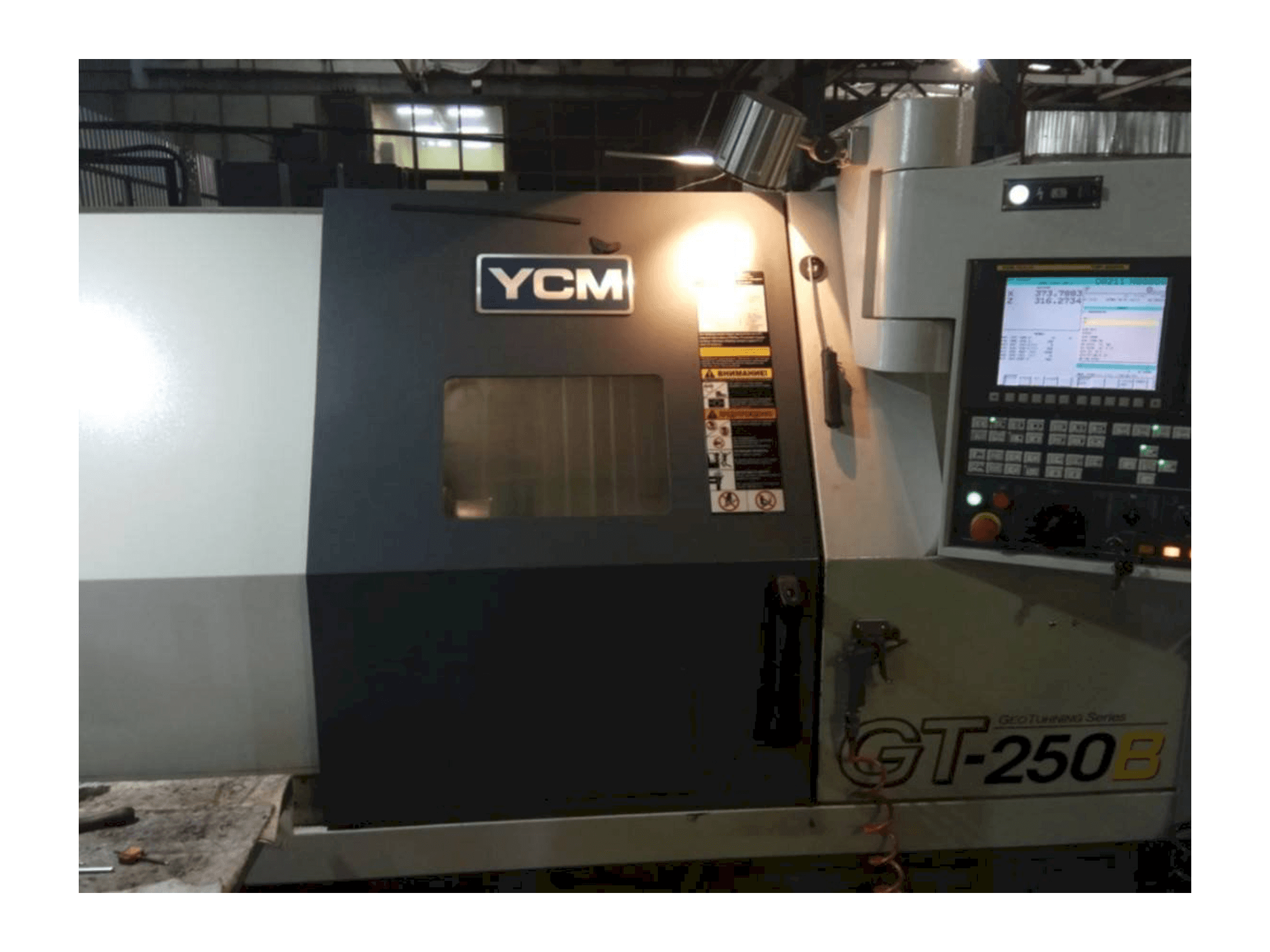

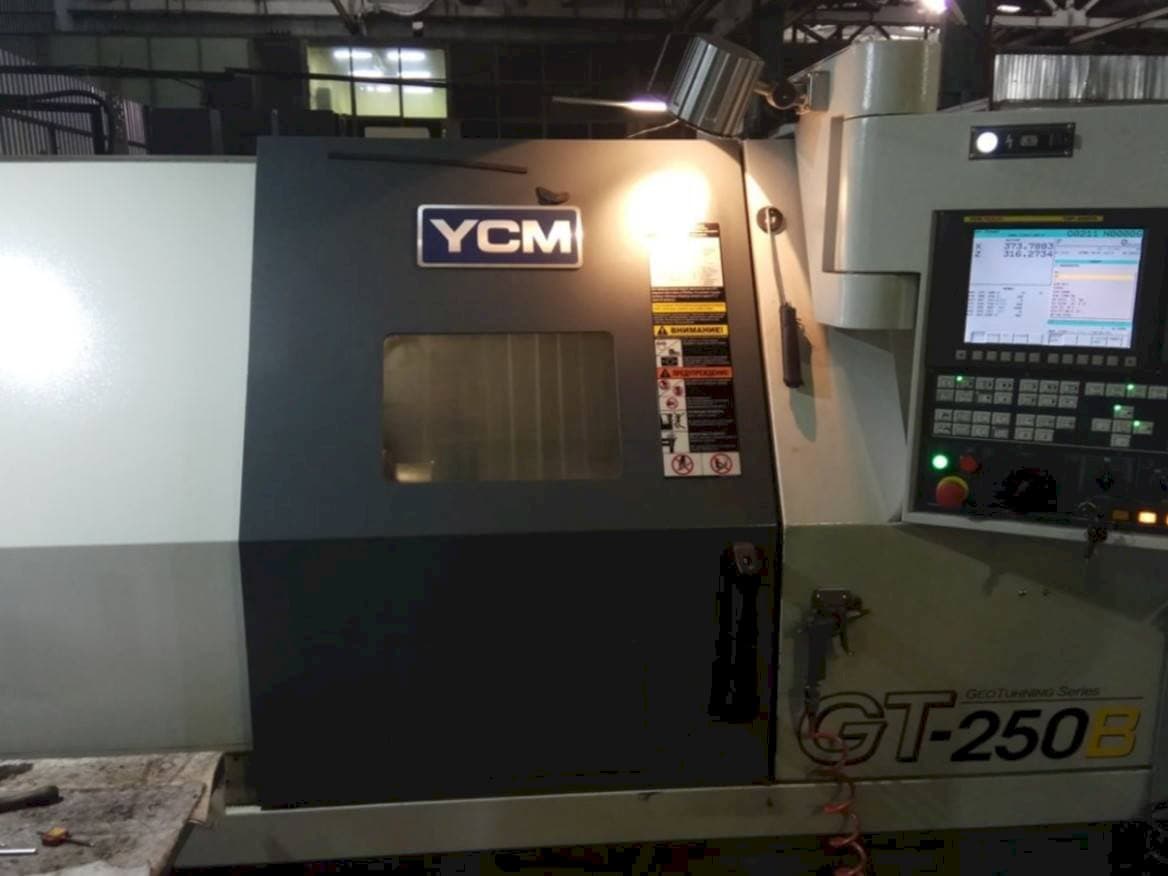

This YCM GT250B Lathe was made in the year 2017. It is equipped with a FANUC TXP-200FA Control unit. This machine can work with a maximum spindle speed of 3500 rpm.

Overview

brand: YCM
year: 2017
MODEL: GT250B
application type: Turning
Location: Russia
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - YCM GT250B

General Data

Machine weight: 6200 kg

Control Unit

Model: TXP-200FA
Brand: FANUC

Main drive

Spindle speed range: 3500 1/MIN

Movement

X-AXIS Movement: 195 mm
X-AXIS Rapid traverse: 20 / m/min
Z-AXIS Movement: 515 mm
Z-AXIS Rapid traverse: 24 / m/min

Tail Stock

Pinol tool taper: Quill Taper MT-5

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Turning diameter: Ø350 mm
- - Max. Turning length: 515 mm
- - Chuck size 10''
- - Spindle nose a2-8
- - Hole through spindle: Ø88 mm
- - Hole through draw bar: Ø75 mm
- - Swing over turret: Ø585 mm
- - Quill stroke: 415 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
