➤ Used Yang ML-300 For Sale | gindumac.com

Show in original language

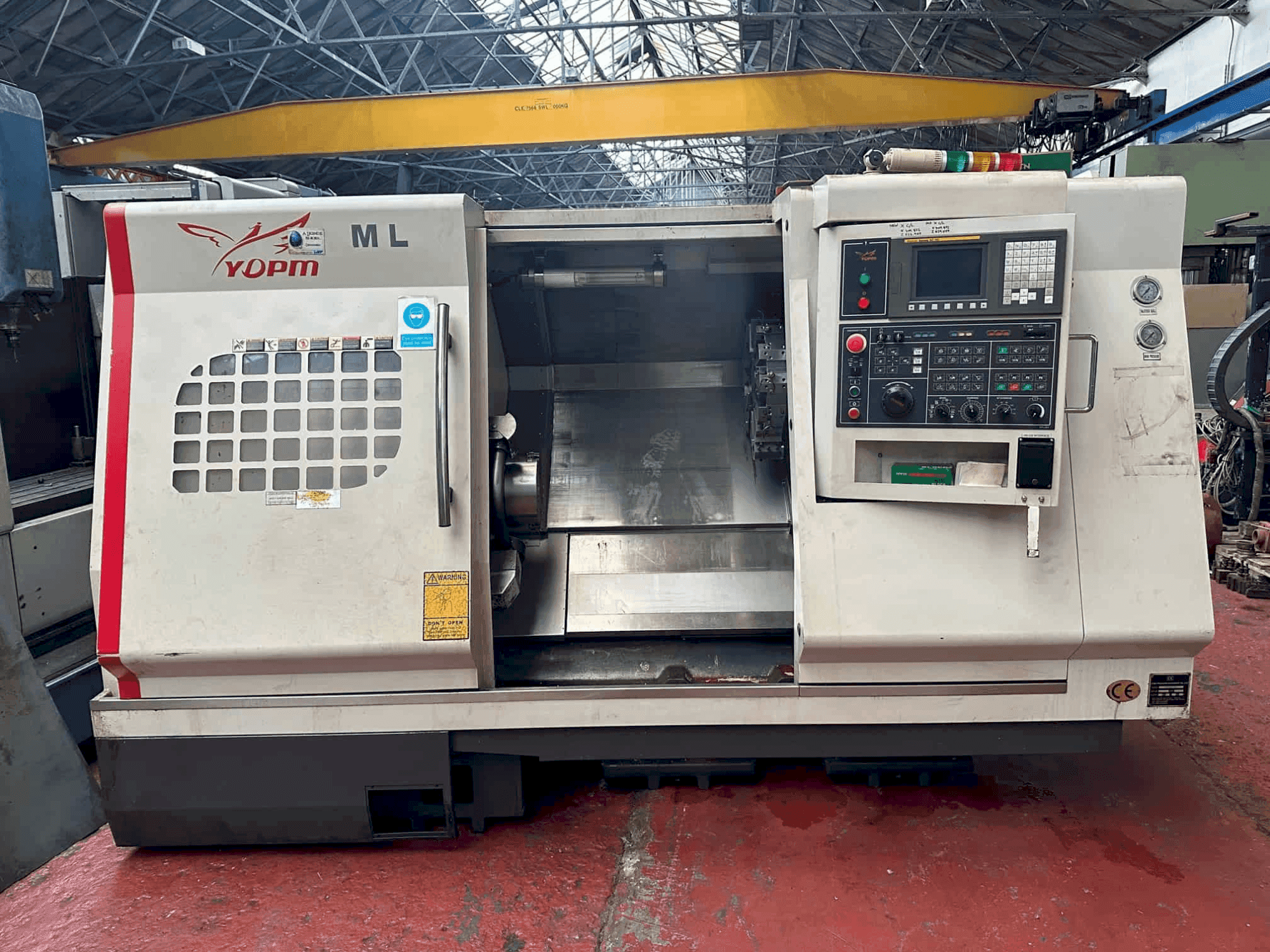

This Yang ML-300 was manufactured in 2008. A reliable horizontal turning machine, it offers solid performance for your machining needs. Consider the opportunity to buy this Yang ML-300 horizontal turning machine. Contact us for more information.

Overview

brand: Yang
year: 2008
MODEL: ML-300
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: FANUC

Technical Information - Yang ML-300

General Data

Measurements width: 1675 MM
Measurements depth: 4080 MM
Measurements height: 1842 MM
Machine weight: 5200 KG

Control Unit

Brand: FANUC

Main drive

Spindle speed range: 3000 1/MIN
Number of axis: 2

Movement

X-AXIS Movement: 240 mm
Z-AXIS Movement: 600 mm

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed: Ø 600 mm
- - Diameter × length: Ø 300 mm × 600 mm
- - Max. Diameter: Ø 380 mm
- - Hydraulic tailstock travel: 465 mm mt. No. 4
- - Vdi tool stations: opt: 8 std: 10
- - Diameter of spindle bore/draw bar bore: std: Ø 77 mm / Ø 52 mm; opt: Ø 86 mm / Ø 77 mm
- - Spindle speed: std: Ø 203 mm chuck (3500 rpm); opt: Ø 203 mm chuck (4500 rpm), Ø 254 mm chuck (3500 rpm)
- - Chuck diameter: std: Ø 203 mm; opt: Ø 254 mm
- - Power requirement: 208-220 volts / 100 amps / 3 phases / 60 cycles
Qualitative Machine Benefits:
- - Coolant

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
