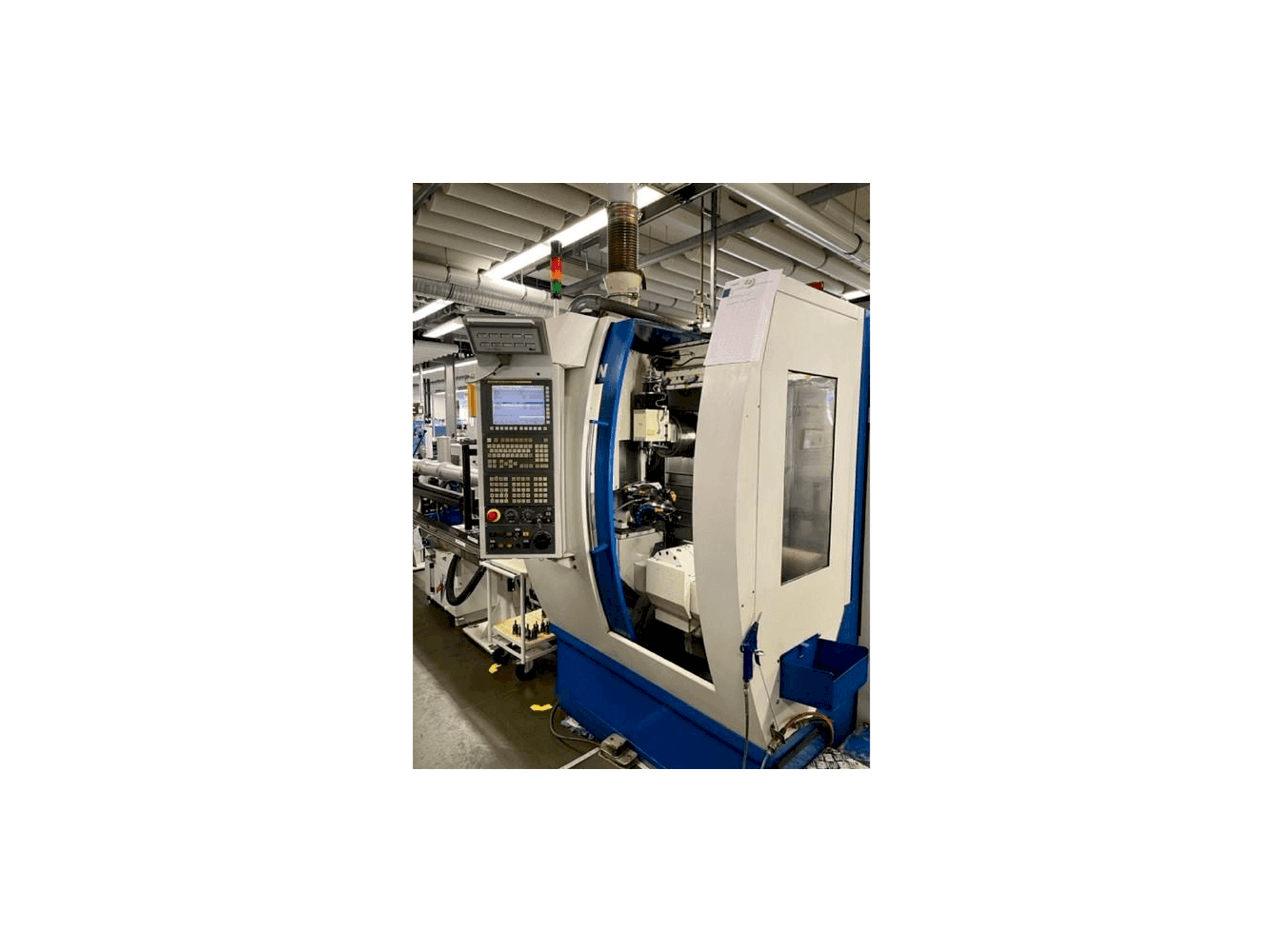

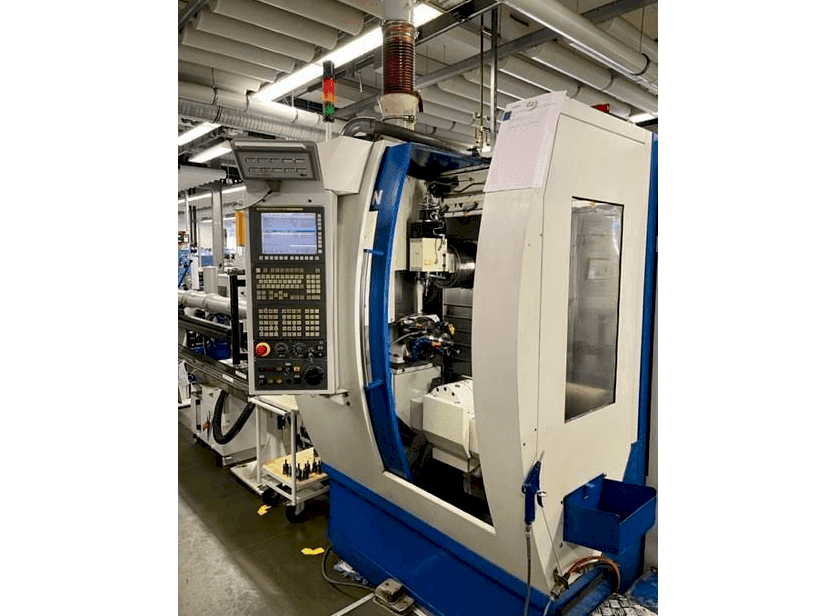

Willemin-Macodel W508MT Machining Center

Show in original language

This Willemin-Macodel W508MT Machining Center was built in 2008 and has 51607 working hours, of which 5777 are spindle hours. It is operated through a Fanuc 31i control unit and has 5 axis. The machine has a spindle speed of 30000 rpm, and continuous maintenance is made according to manufacturer recommendations.

Overview

brand: WILLEMIN-MACODEL
year: 2008
MODEL: W508MT
production hours: 51607
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - WILLEMIN-MACODEL W508MT

General Data

Machine weight: 3000 kg

Control Unit

Model: 31i
Brand: FANUC

Main drive

Spindle speed range: 30000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 450 mm
X-AXIS Feed Force: 2500 N
Y-AXIS Movement: 200 mm
Y-AXIS Feed Force: 2500 N
Z-AXIS Movement: 425 mm
Z-AXIS Feed Force: 2500 N

Tools

Type of tool holder: DIN 69693 HSK40E

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rapid traverse: 40 m/min
- - A-axis speed range: 6000
- - Clamping pressure: 40 bar
- - Bar diffuser: 42 mm
- - Swivel axis (b axis): -15° +100°
Qualitative Machine Benefits:
- - Continuous maintenance is made according to manufacturer recommendations

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
