WALDRICH COBURG Milling Machine

Show in original language

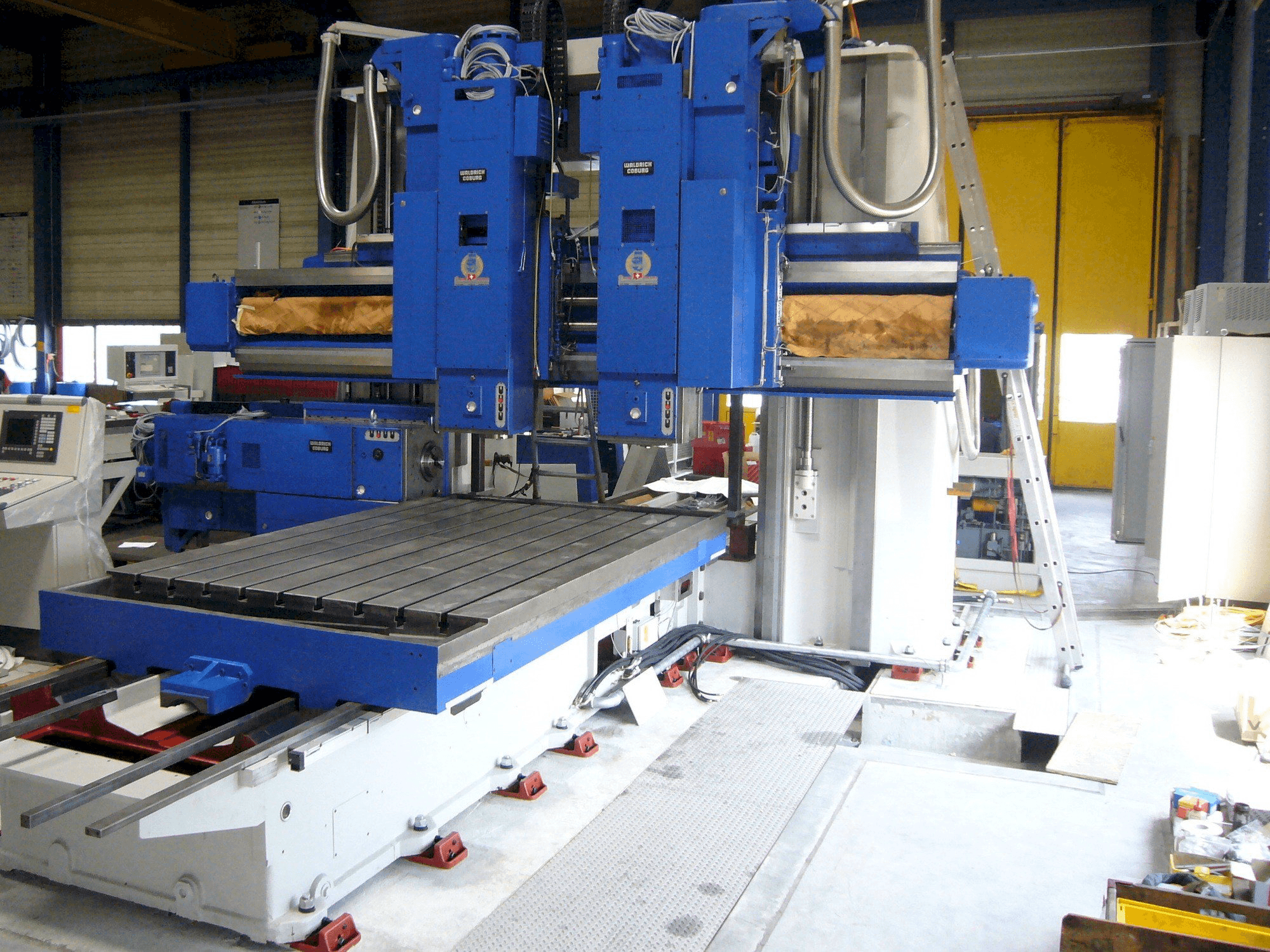

This WALDRICH COBURG Milling Machine was made in 2009. This powerful machine incorporates 3 spindles and 3 motors. It works with 3 gear stages and it also has an automatic gear stage. This Machine presents excellent conditions, as it has been running 2-shifts since installment.

Overview

brand: WALDRICH COBURG
year: 2009
MODEL: Coburg
application type: Milling
Location: Switzerland
machine type: Gantry Milling Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - WALDRICH COBURG Coburg

General Data

Measurements width: 10000 mm
Measurements depth: 65000 mm
Measurements height: 5500 mm
Machine weight: 70000 kg

Control Unit

Model: SINUMERIK 840D
Brand: SIEMENS

Main drive

Number of spindles: 3
Spindle speed range: 20-600 1/MIN
Spindle motor power: 40 kW
Distance between bars: 2150 mm

Movement

X-AXIS Working Feed: 10-2000 mm/min
X-AXIS Rapid traverse: 2000 mm/min

Table

Outer length: 3000 mm
Outer width: 2000 mm
Max distance between vertical spindle and table: 1800 mm
Table load: 20000 kg

Tools

Type of tool holder: SK50

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Knoll chip conveyor
- - 3 spindle drives and 3 motors
- - 1st stage: 10-110 rpm
- - 2nd stage: 90-250 rpm
- - 3rd stage: 200-600 rpm
- - Tool package
Qualitative Machine Benefits:
- - Automatic gear stage (with a weaker torque)
- - Spindle/gearbox overhauled
- - Machine has been retrofitted completely in 2009
- - Machine has been running in 2-shifts since installment

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
