WAGNER - WMC 1100DE-MIL-WAG-2004-00001

Name: WAGNER WMC 1100
Brand: WAGNER
SKU: DE-MIL-WAG-2004-00001
Price: 10000 EUR
Availability: InStock

10,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used WAGNER WMC 1100 For Sale | gindumac.com

Show in original language

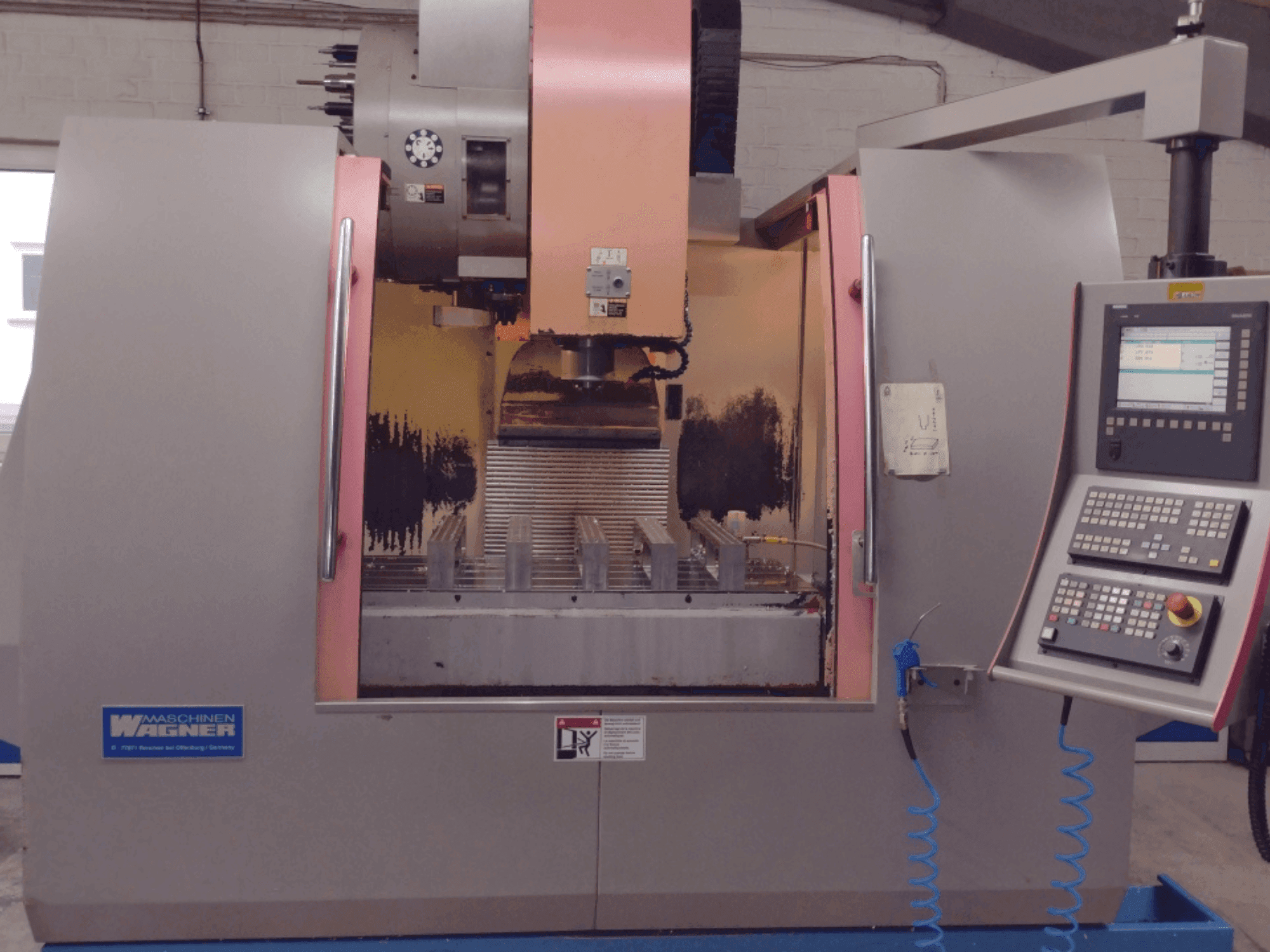

This 3-axis Wagner WMC 1100 vertical machining center was manufactured in 2004. It features a Siemens 810D control system, a spindle speed range of 1-8000 rpm, and a table load capacity of 1000 kg. Equipped with a double-arm automatic tool changer with 24 stations and preparations for a 4th axis and coolant through the spindle. Ideal for complex machining tasks. If you are looking to get high-quality machining capabilities consider the Wagner WMC 1100 machine we have for sale. Contact us for more information.

Overview

brand: WAGNER
year: 2004
MODEL: WMC 1100
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: SIEMENS

Technical Information - WAGNER WMC 1100

General Data

Measurements width: 2200 mm
Measurements depth: 3000 mm
Measurements height: 2250 mm
Machine weight: 8000 kg

Control Unit

Brand: SIEMENS
Model: 810D

Main drive

Spindle speed range: 8000 rpm 1/MIN
Tool taper: SK 40

Movement

X-AXIS Movement: 1100 mm
X-AXIS Feed Force: 20000 mm/min
X-AXIS Rapid traverse: 20 m/min
Y-AXIS Movement: 650 mm
Y-AXIS Feed Force: 20000 mm/min
Y-AXIS Rapid traverse: 20 m/min
Z-AXIS Movement: 600 mm
Z-AXIS Feed Force: 15000 mm/min
Z-AXIS Rapid traverse: 24 m/min

Turret

Number of tool slots: 24

Tools

Max weight: 8 kg
Max tool diameter: 80 mm
Max tool length: 250 mm
Type of tool holder: SK 40

Additional Equipment

- Full machine enclosure with doors
- Automatic tool changer with double arm
- Spindle cooling system
- Preparation for 4th axis / Preparation for coolant through the spindle / Preparation for chip conveyor
- Flat guides with Turcite B counteracting coating
- Complete cooling chain system
- Automatic central lubrication
- Spindle bleedout function
- Signal light
- Machine light

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table dimensions: 1300 x 600 mm
- - T-slots: 18 x 5 mm
- - Positioning accuracy: ± 0. 003 mm
- - Repeatability: ± 0. 005 mm
- - Type: double-arm design with freely selectable tool choice
- - Tool change time: 2 seconds
- - Chip-to-chip time: 4 seconds
- - Spindle nose to table: 140 - 740 mm
- - Spindle center to column: 700 mm
- - Power supply: 400v / 50 hz

Extra information

- Machine feet with leveling screws Tool box with operating tools Documentation CE norm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
