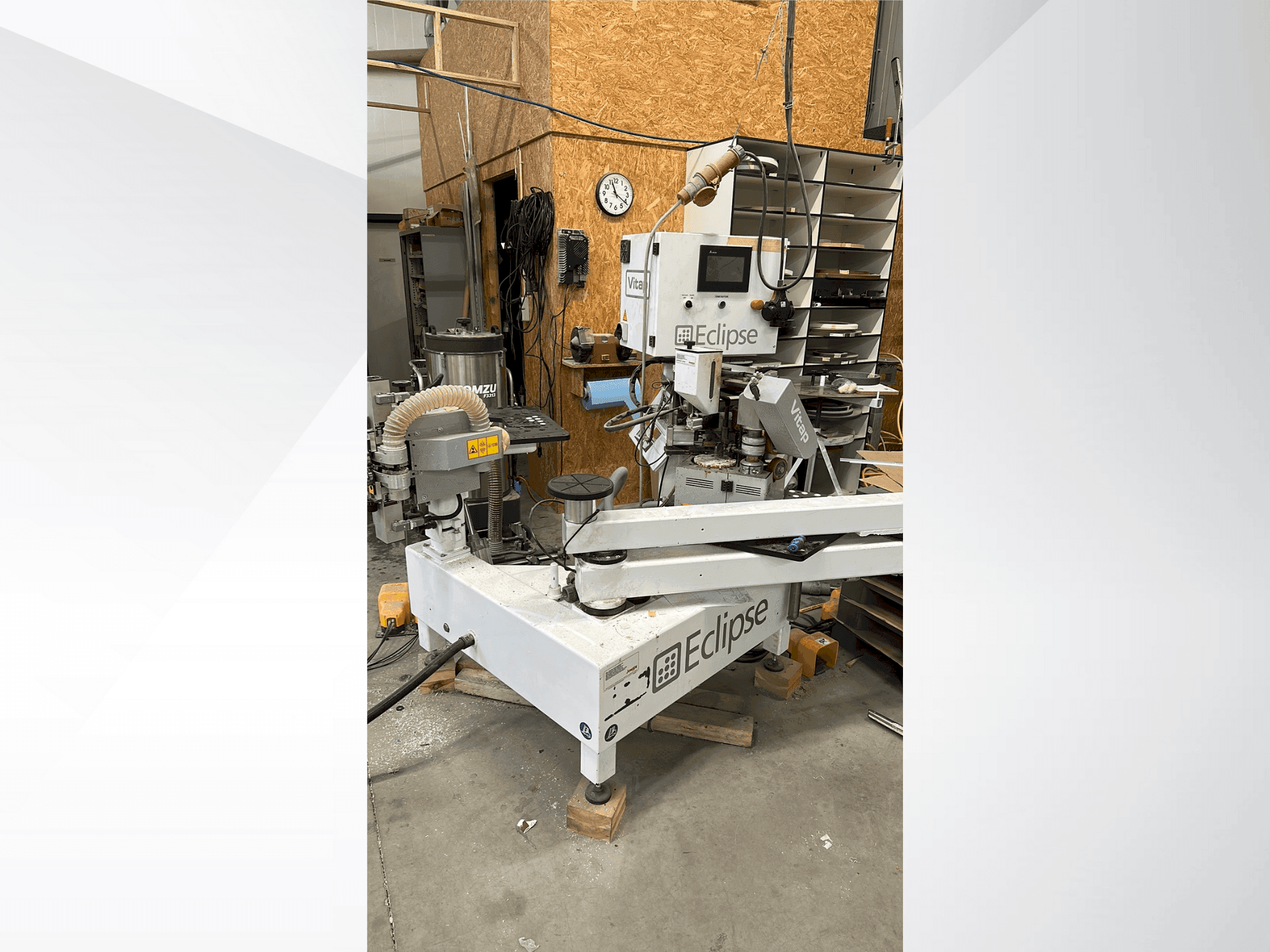

VITAP - EclipseNL-EDG-VIT-2018-00001

Additional Equipment

• - Glue Pot Capacity: Max glue pot capacity 1 Kg (with optional 2 Kg glue pot)
• - Gluing Unit:Edge gluing on open and closed curved panels of small and large dimensions/1 gluing roller/2 rollers to copy the shape of the panel/2 800 W resistors with electronic temperature control/Manual adjustment of the glue quantity/Glue temperature adjustment/Automatic edge cutting system
• - PLC System: For setting the measurement and cutting of the edge with encoder reading
• - Laser: Facilitates cutting programming for closed pieces without the need to measure the piece
• - Piece Feeder: On/Off automatic piece feeder
• - Work Surface: For edging and trimming small pieces
• - Edge Magazine: Rolled edge magazine with idle roller system
• - Trimming Group: 2 high frequency 0.5 kW motors with rotation speed of 15000 rpm /On/Off trimming unit/Pneumatic lifting of the two motors/2 brazed cutters R=3 Z=6/
• - Articulated Arm: Complete with workpiece depression table for edging and trimming large pieces

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Dimensions of machine (lxwxh): 2000 x 2000 x 1700 mm (with closed arms); 3400 x 3400 x 1700 mm (with arms open)
• Qualitative Machine Benefits:
  • - Facilitates efficient edging and trimming on both small and large pieces
  • - Compliant with ce standards
