Tube Tech Machinery - FL 400 3DNL-OTH-TUB-2006-00001
Do you have further questions? Contact us.
![sales contact](https://s3.eu-central-1.amazonaws.com/gindumac/staff/profile_pictures/borja-garcia.png)
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
![whatsapp](https://gindumac.s3.eu-central-1.amazonaws.com/images/email-icons/whatsapp.png)
- GINDUMAC
- Products
- Sheet Metal Machinery
- Tube Tech Machinery FL 400 3D Tube Cutting Machine

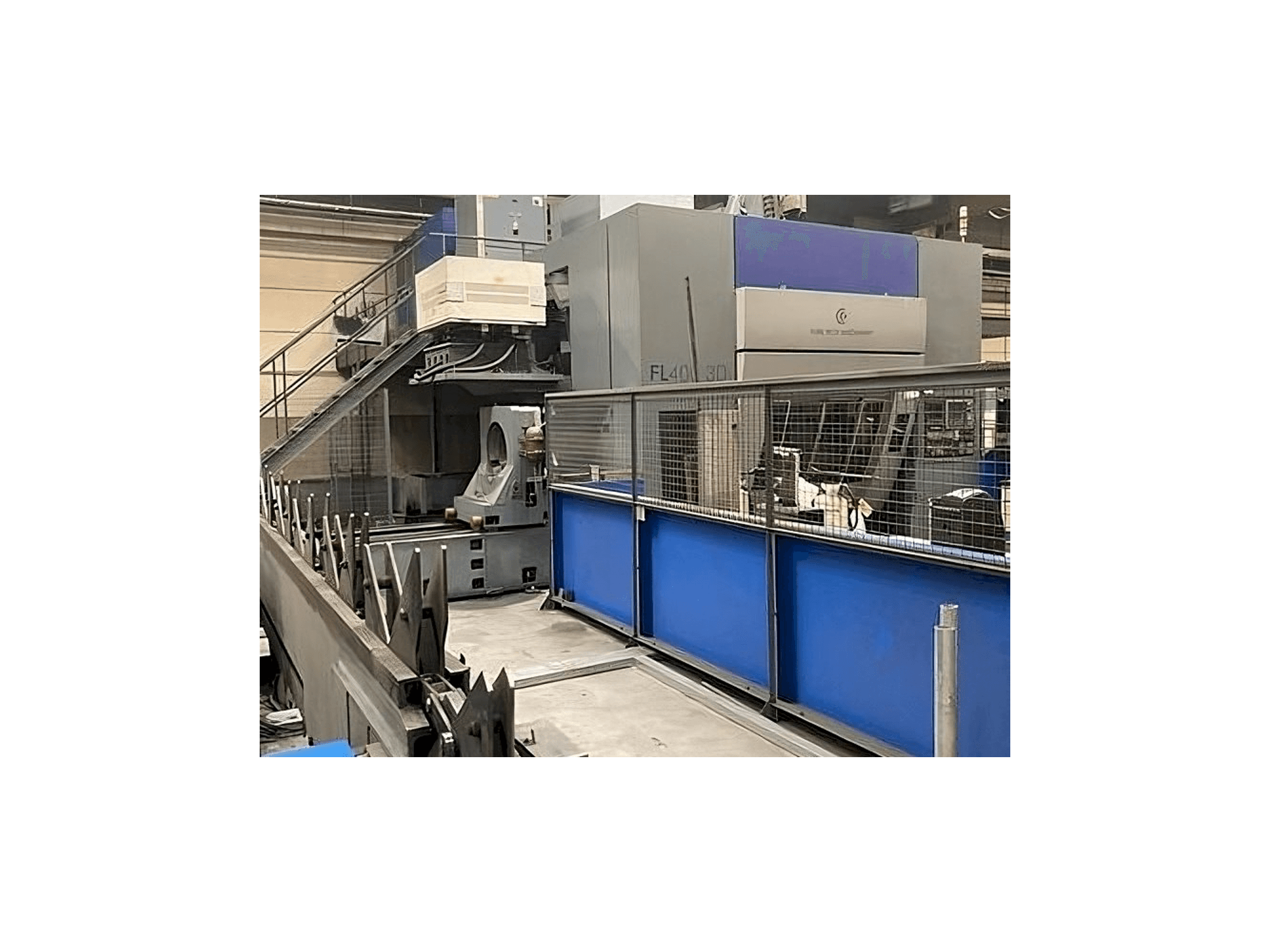

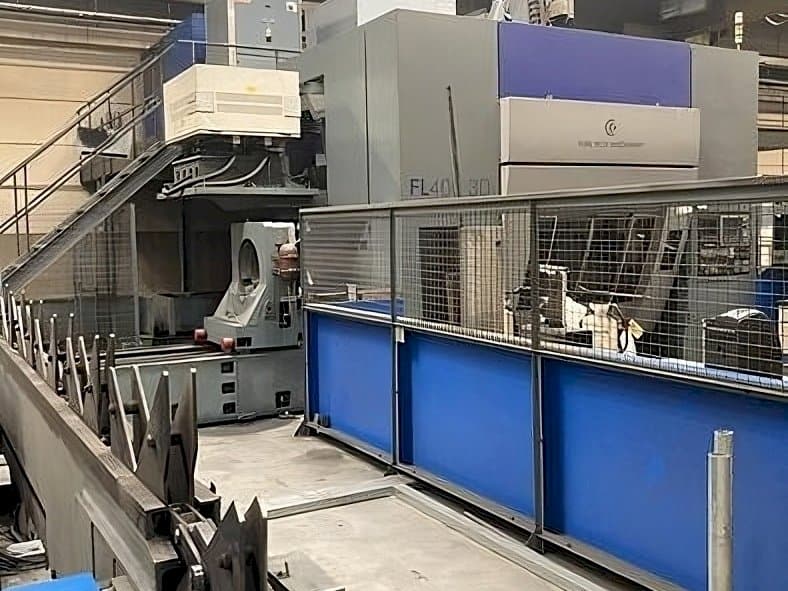

This Tube Tech Machinery FL 400 3D Tube Cutting Machine was made in the year 2006 in Italy and retrofitted in 2012. It is equipped with a Siemens 840D control unit. The machine has a laser power of 4 kW.
Overview
- brand: Tube Tech Machinery
- year: 2006
- MODEL: FL 400 3D
- application type: Other Sheet Metal Machinery
- Location: Netherlands
- machine type: Sheet Metal Machine
- availability: Sold
- control unit brand: Siemens
Technical Information - Tube Tech Machinery FL 400 3D
General Data
- Measurements width: 44000 mm
- Measurements depth: 12000 mm
- Machine weight: 95000 kg
Control Unit
- Brand: Siemens
- Model: 840D
Main drive
- Laserpower: 4 KW
- Laser type: Trumpf TLF4000 CO2
Max Material thickness
- Steel: 20 mm
- Stainless steel: 12 mm
Media
- Main electronic connection: 3x400V, 50Hz
- Air pressure: 8 bar
Additional Information
- Technical Machine Benefits:
- - Loading tube length: 4000 mm min / 14000 mm max, unloading tube length: 800 mm min / 14000 mm max
- - Tube weight: 290 kg/m max tube section: round, square, rectangular, oval
- - Round section size: ø 40 to ø 406 mm max, square section size: 40x40 to 300x300 mm max, rectangular, oval section size: 300x250 mm max
- - Diam. For loading from bundle: ø 254 mm max
- - Section unloadable on chain: 800 mm min
- - Mandrels linear speed: 70 m/min max
- - Controlled axes: 24 - 3d laser head
- Qualitative Machine Benefits:
- - Revision in 2012:
- - Replacement of main wearing parts: - all bearings of the 4 chucks on the track - cutting head itself - igus cable reel trays that run with the chucks
- - Up-to-date machine control software (by ttm)
- - Inspection of all moving parts loading/unloading (front and rear) - open everything, check, lubricate, replace, close
- - Commissioning tolerance tests on all axes: - accuracy - repeat accuracy
- - Tube transport (mandrels): the tube is carried in and out of the machining zone (cutting zone) by means of four mandrels: there it undergoes machining, also with the help of rotation and linear movement of the same mandrels. AŌer machining the tube is then transported to the rear unloading zone or unloaded in the central unloading zone
- - Loading zones (there are two types of loading):
- - Front loading, performed by five parallel chains for conveying the tube and four loading manipulators to liŌ and carry the tube into the area where it will be taken over by the mandrels
- - Rear loading, (or bundle loading), where the tubes are stored in bundles and loaded one by one (by means of the same four manipulators handling the front loading) and brought into the takeover area to the mandrels.
- - Cutting zone: the laser beam is generated inside a trumpf source (tlf 4000), with the use of c02, n2 and he. Successively it is guided by means of a number of mirrors to the of the head, where it shall machine the workpiece. Machining is obtained by a five axis (xm, ym, zm, a, c) laser system allowing for cutting in the whole space around the head nozzle. By using the auxiliary axes u, v, w and a1 the former ones can also work by interpolation between them, exploiting (also to keep machining down) rotation and linear movements of the mandrels. Distance between nozzle and workpiece is being constantly controlled by means of precitec capacitive sensor
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
