➤ Used TSUGAMI BS32S-III For sale | gindumac.com

Show in original language

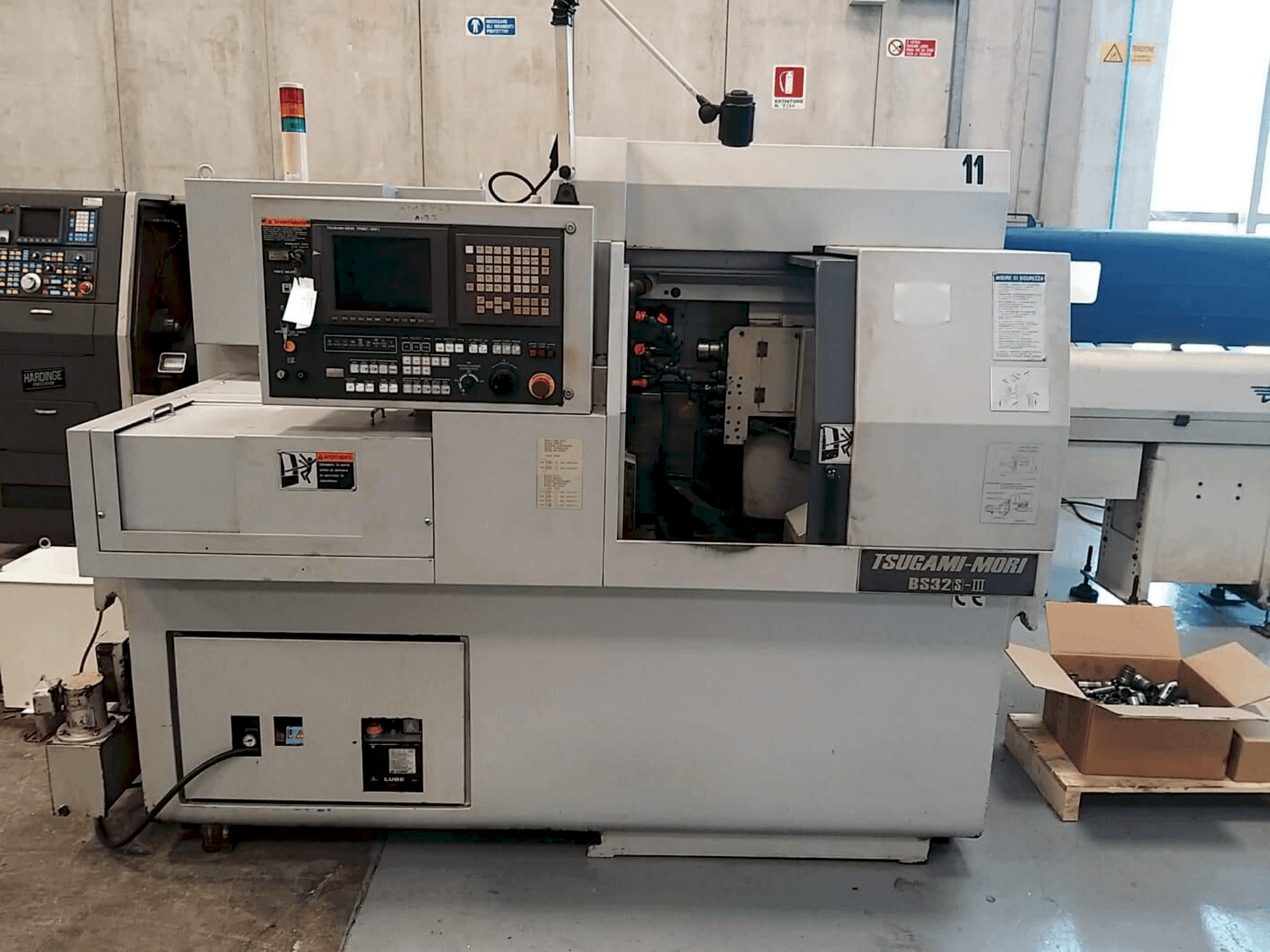

This 7-axis TSUGAMI BS32S-III swiss type turning machine was manufactured in 2002, featuring a main spindle with a maximum bar capacity of 32 mm and speeds up to 7000 RPM. It includes a subspindle with similar capabilities and rapid traverse rates of 30 m/min. Equipped with a robust tooling system and a cooling tank capacity of 230 liters, the TSUGAMI BS32S-III offers precision and efficiency. For more information about this swiss type turning machine, please reach out to us.

Overview

brand: TSUGAMI
year: 2002
MODEL: BS32S-III
application type: Turning
Location: Italy
machine type: Swiss Type Turning Machine
availability: Immediately

Technical Information - TSUGAMI BS32S-III

General Data

Measurements width: 1450 MM
Measurements depth: 2500 MM
Measurements height: 2800 MM
Machine weight: 2800 KG

Main drive

Spindle speed range: 0 - 7000 (Main) / 200 - 6000 (Sub) 1/MIN
Spindle motor power: 2.7 - 4.0 kW (Main) / 3.7 - 5.5 kW (Sub)
Number of axis: 7

Workpiece

Workpiece drm over bed: 32 mm
Workpiece weight: 300 mm KG

Additional Equipment

- IEMCA 332 Miniboss: Diameter: 3-32 mm Bar length: 3200 mm Loading system: Side slide Loading capacity: 270 mm Loading side: Front / Rear Fixed and mobile headstock type Guide bush: Manual Bar selection: Manual Motor: Servo motor Drive: Chain Guiding system: Hydrodynamic "U" channel

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Main spindle: longitudinal stroke z1 axis (reload): 250 mm
- - Subspindle: transversal stroke y1: 145 mm
- - Full "c" axis for both main and sub-spindle
- - Rapid traverse at 30 m/min
- - Large number of axes (7) for complex operations
- - Cooling tank capacity: 230 liters
- - Max cooling power pump: 80 l/min
- - Toolholders: slide #1 max tool no. Static + live: 5+3, square shank and max length: 16 x 16 x 130 mm back operation gang tooling max tool no. Static: 3 square shank and max length: 16 x 16 x 90 mm
- - Partial changeover: 2 min (without guide channel change)
- - Complete changeover: 10 min (for all guide elements)
Qualitative Machine Benefits:
- - High precision due to "c" axis and hydrodynamic guiding system
- - Efficient bar loading and guiding for continuous operations

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
