- Trumpf TruPunch 3000 Punching Machine

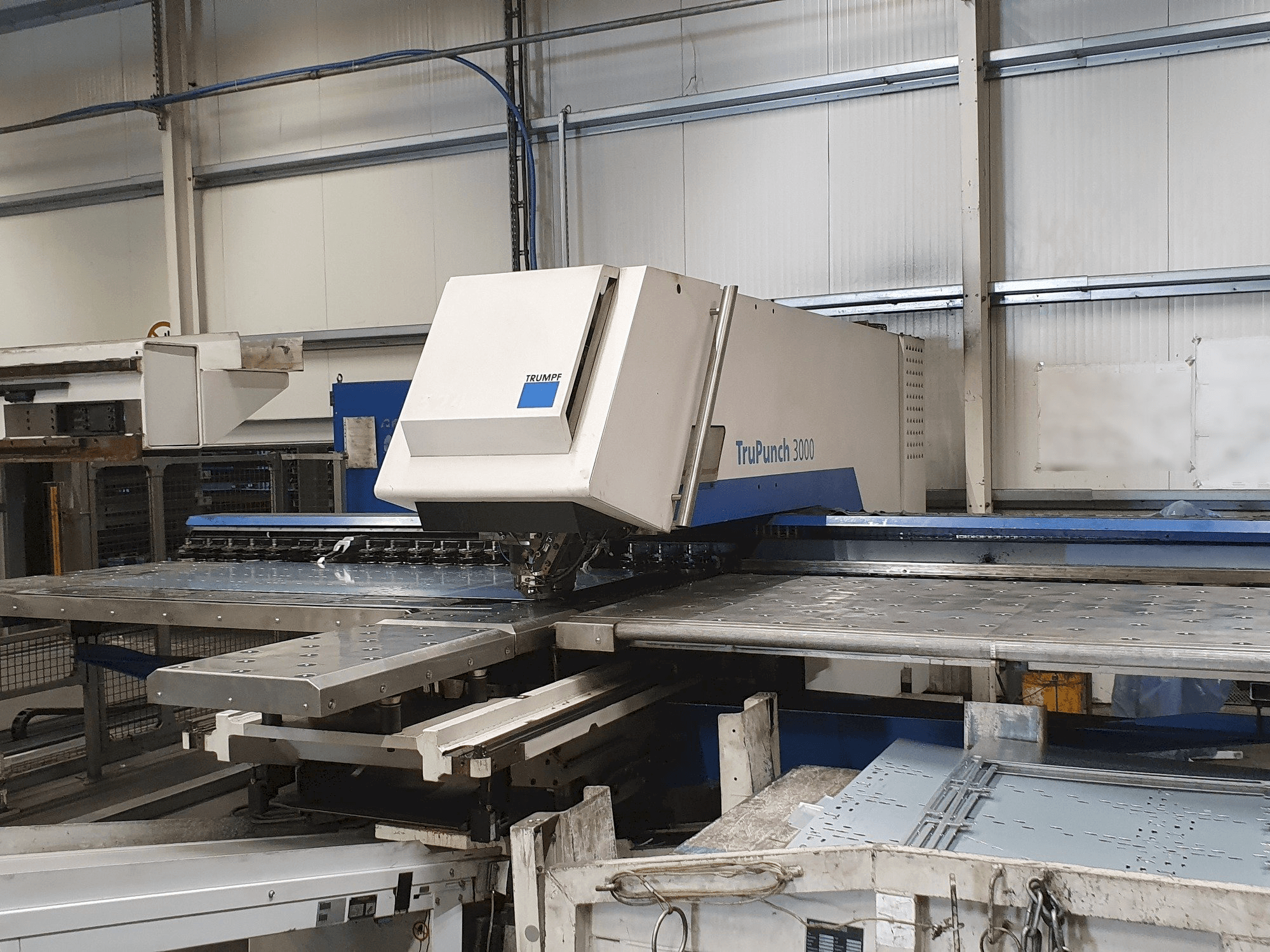

This Trumpf TruPunch 3000 Punching Machine was built in Germany in the year 2007. It has been working for 60951 hours. It is equipped with a control unit of the same brand. This machine work with a punching force of 180 kN. It can work with a maximum thickness of processed sheet metal 6.4 mm.
Overview
- brand: TRUMPF
- year: 2007
- MODEL: TruPunch 3000
- production hours: 60951
- application type: Punching
- Location: Poland
- machine type: CNC Punch Press
- availability: Sold
- control unit brand: TRUMPF
Technical Information - TRUMPF TruPunch 3000
General Data
- Measurements width: 5800 mm
- Measurements depth: 6500 mm
- Measurements height: 2230 mm
Control Unit
- Brand: TRUMPF
Main drive
- Punching force: 180 kn
Table
- Outer length: 2500 mm
- Outer width: 1250 mm
- Table load: 150 kg
Additional Information
- Technical Machine Benefits:
- - Max. Number of strokes per min 900 1/min.
- - Max. Marking speed 2200 1/min.
- - Number of tool seats 19 pcs.
- - Tool change time 0. 5 sec.
- - Max thickness of processed sheet metal 6. 4 mm.
- - Active functions: sheet deformation sensor, tapping, marking, multibend, multishear
- - Tank heating with hydraulic oil
- - Softpunch functions
- - Stripline-programmable manually
- - Foundation are on damping elements
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
