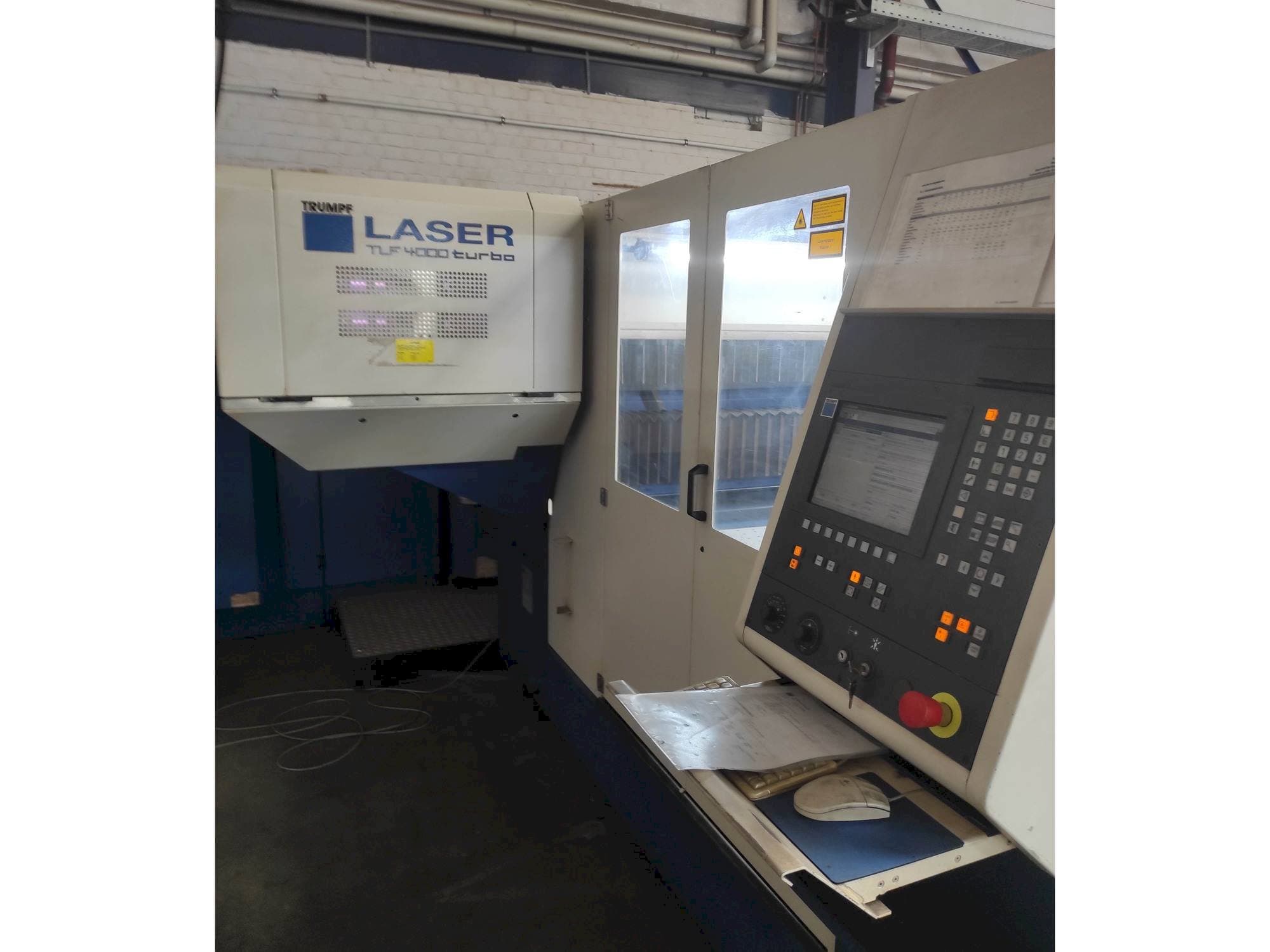

Trumpf TRUMATIC L 3030 Laser cutting machine

Show in original language

This Trumpf TRUMATIC L 3030 Laser cutting machine was made in 2001 in Switzerland. It is equipped with a Siemens Sinumerik 840D control unit. The machine has a laser power of 4,0 kW.

Overview

brand: TRUMPF
year: 2001
MODEL: TRUMATIC L 3030
application type: Cutting
Location: Germany
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF TRUMATIC L 3030

Control Unit

Model: Sinumerik 840D
Brand: SIEMENS

Main drive

Laserpower: 4,0 kW

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1500 mm
Z-AXIS Movement: 115 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Sheet thickness st. Max. : 20 mm
- - Sheet thickness va. Max. : 12 mm
- - Sheet thickness al. Max. : 8 mm
- - Hi-las high pressure cutting
- - Laser cutting head with 5'' lens, laser cutting head with 7. 5'' lens
- - Cutting head quick-change device, autom. Sheet outer edge detection, position laser diode
- - Progr. Cutting gas selection/pressure adjustment, microweld, sprintlas, contourlas
- - Autolas plus, autom. Pallet changer, work area lighting
- - Conveyor for small parts/waste, multi-chamber extraction systemautomatic switch-off, compact dust extractor
- - Rj 45 network connection, safety devices, 3. 5'' floppy disk drive, software included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
