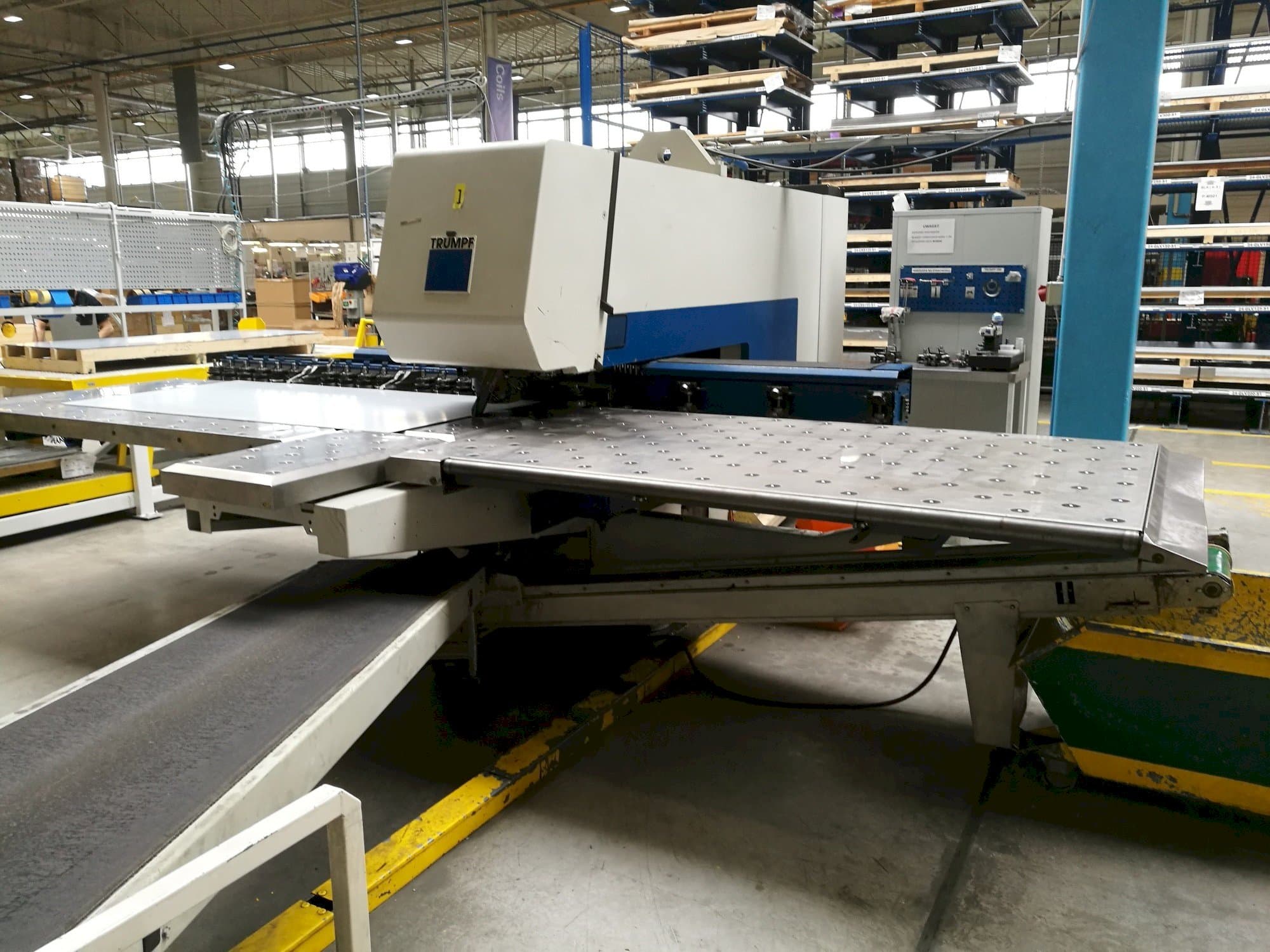

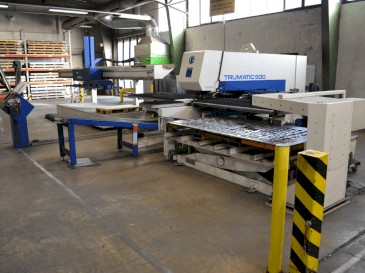

Trumpf Trumatic 500 Punching Machine

Show in original language

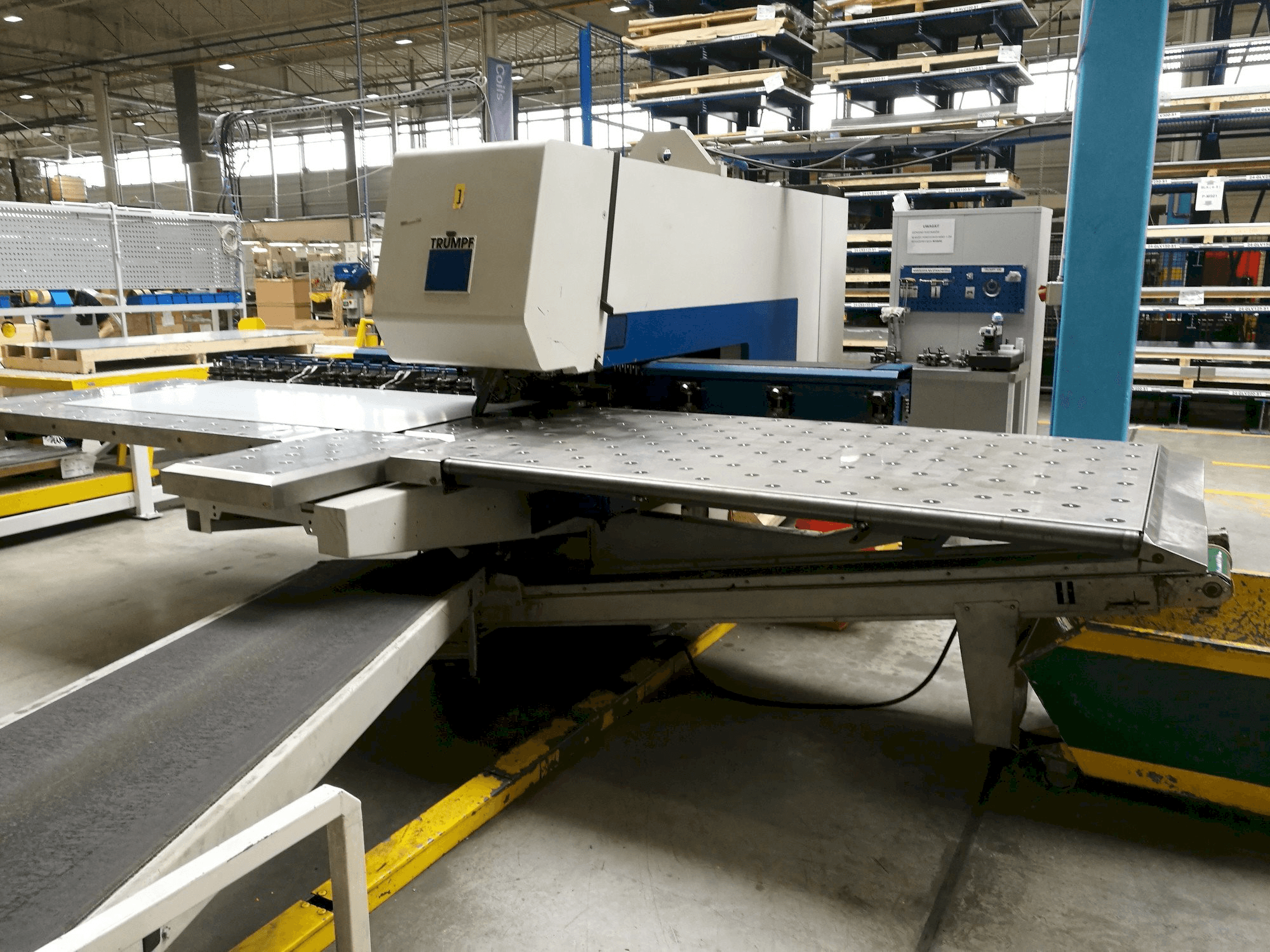

This Trumpf Trumatic 500 Punching Machine was built in 1999 in Germany and has been working for 49900 hours since then. Operated through a Bosch TRUMAGRAPH Control unit, this machine incorporates a punching force of 220 kN.

Overview

brand: TRUMPF
year: 1999
MODEL: Trumatic 500
production hours: 49900
application type: Punching
Location: Poland
machine type: CNC Punch Press
availability: Sold
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 500

General Data

Measurements width: 5200 mm
Measurements depth: 5200 mm
Measurements height: 2200 mm
Machine weight: 11050 kg

Control Unit

Model: TRUMAGRAPH
Brand: BOSCH

Main drive

Punching force: 220 kN

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1250 mm

Workpiece

Workpiece x: 2500 mm
Workpiece y: 1250 mm
Workpiece weight: 150 kg

Tools

Number of index: 18

Max Material thickness

Steel: 8 mm
Stainless steel: 3 mm

Media

Main electronic connection: 400V / 50Hz
Power consumption: 17 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine history

Material type: Galvanized ms
material thickness: 2 mm
End product: Hvac

Machine Benefits

Technical Machine Benefits:
- - Very good technical conditions
Qualitative Machine Benefits:
- - Machine was always inspected by trumpf service

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
