Trumpf Trumatic 500 Punching Machine

Show in original language

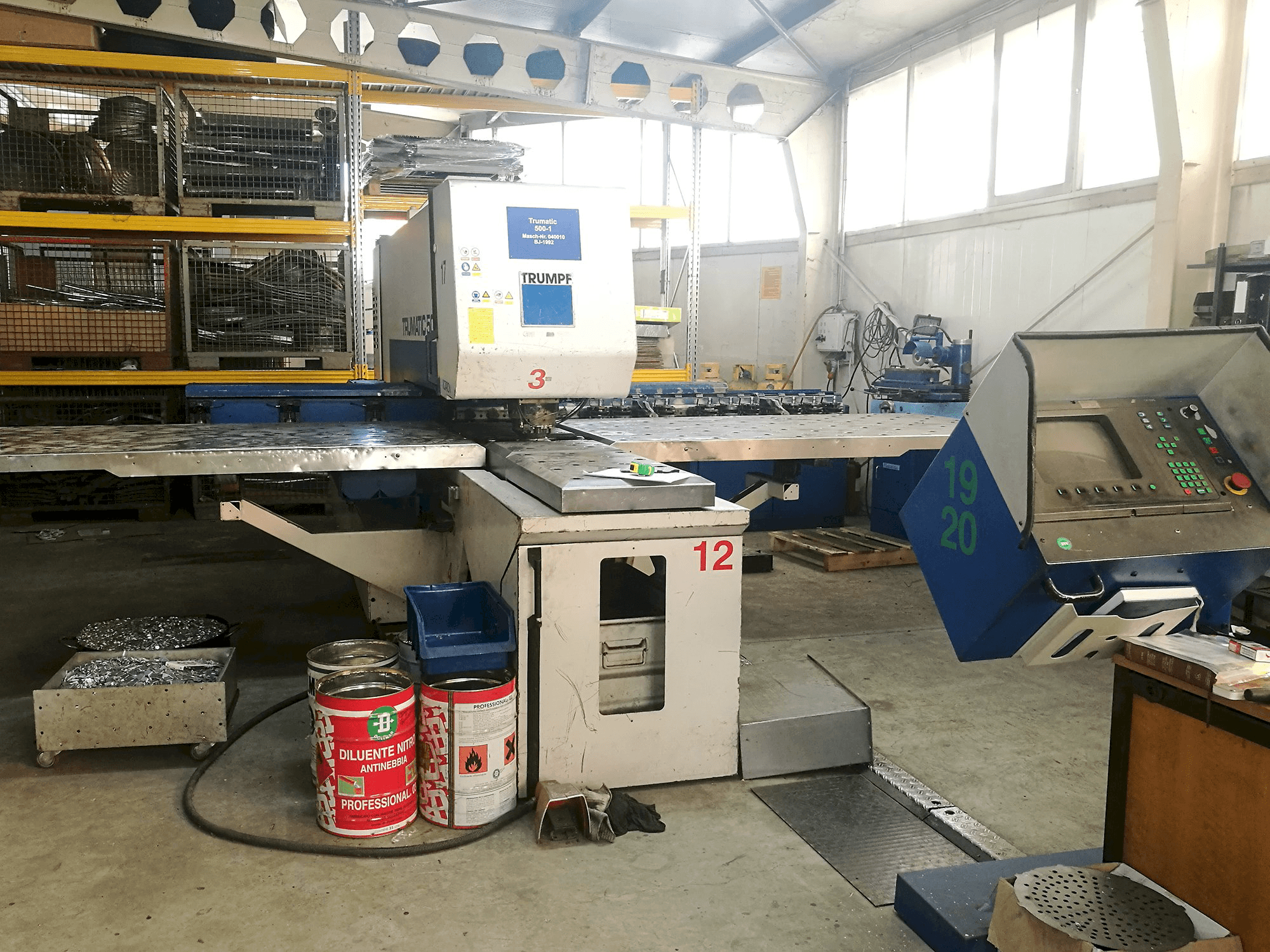

This Trumpf Trumatic 500 Punching Machine from 1992 was made in Germany and counts with 31000 production hours since then. Equipped with a BOSCH CC 220 Control unit, this model has mainly worked with brass and steel up to 8 mm of thickness during the past. This machine incorporates a punching force of 220 kN.

Overview

brand: TRUMPF
year: 1992
MODEL: Trumatic 500
production hours: 31000
application type: Punching
Location: Croatia
machine type: CNC Punch Press
availability: Sold
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 500

General Data

Measurements width: 5000 mm
Measurements depth: 6000 mm
Measurements height: 2100 mm
Machine weight: 11050 kg

Control Unit

Brand: BOSCH
Model: CC 220
CNC main language: English
CNC language customizable: Yes

Main drive

Punching force: 220 kN

Movement

X-AXIS Movement: 2535 mm
Y-AXIS Movement: 1280 mm

Tools

Number of index: 1
Number of stations: 1
Slots in storage: 17

Max Material thickness

Steel: 8 mm

Media

Main electronic connection: 380 V
Power consumption: 17 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
