Trumpf Trumatic 260 Punching machine

Show in original language

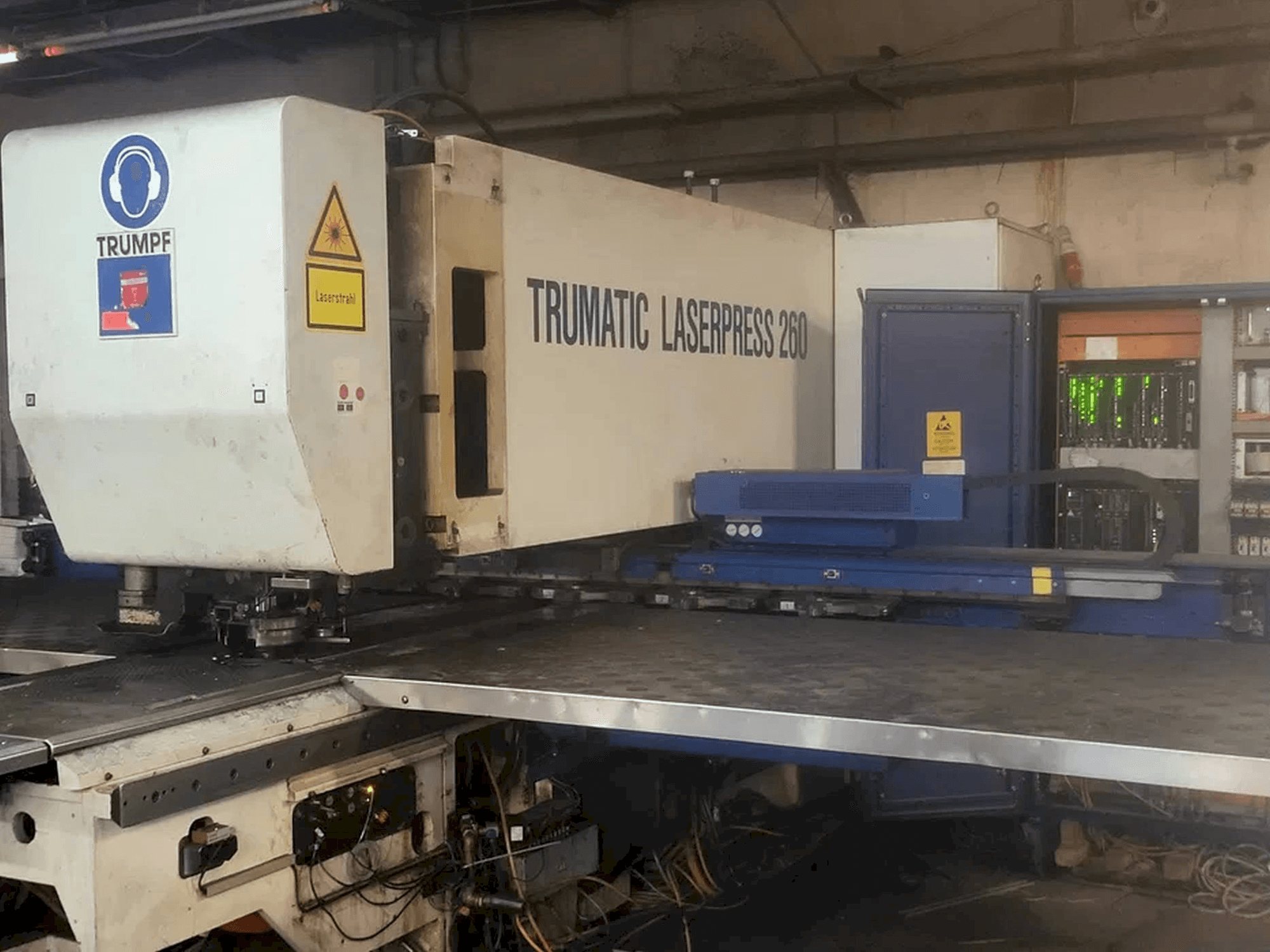

This Trumpf Trumatic 260 Punching machine was manufactured in the year 1991. It is equipped with a BOSCH TRUMAGRAPH CC300 control unit. The machine has a punching force of 250 kN.

Overview

brand: TRUMPF
year: 1991
MODEL: Trumatic 260
application type: Punching
Location: Poland
machine type: CNC Punch Press
availability: Sold
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 260

Control Unit

Model: TRUMAGRAPH CC300
Brand: BOSCH

Main drive

Punching force: 250 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Working area range : 1300 x 2500 mm + repositioning
- - Maximum thickness of sheet : 6,4 mm
- - Maximum weight of processed sheet : 150 kg
- - Maximum tool diameter : 76. 2 mm
- - Maximum traverse speed, x and y axes simultaneously : 108 m/min
- - Maximum traverse speed, x axis : 90 m/min.
- - Maximum traverse speed, y axis : 60 m/min.
- - Number of tools in the magazine : 10 pcs.
- - Tool change time : 6. 5 sec.
- - Maximum tool rotation speed, c axis : 3600/sec.
Qualitative Machine Benefits:
- - Maximum number of strokes : 500/min.
- - Software accuracy : 0. 01 mm
- - Ramp for small workpieces
- - Retractable sheet holders (no repositioning required with standard sheets)
- - 7 sheet holders
- - Multitool operation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
