TRUMPF - Trumatic 200ES-PUN-TRU-2001-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- Trumpf Trumatic 200 Turret Punching Machine

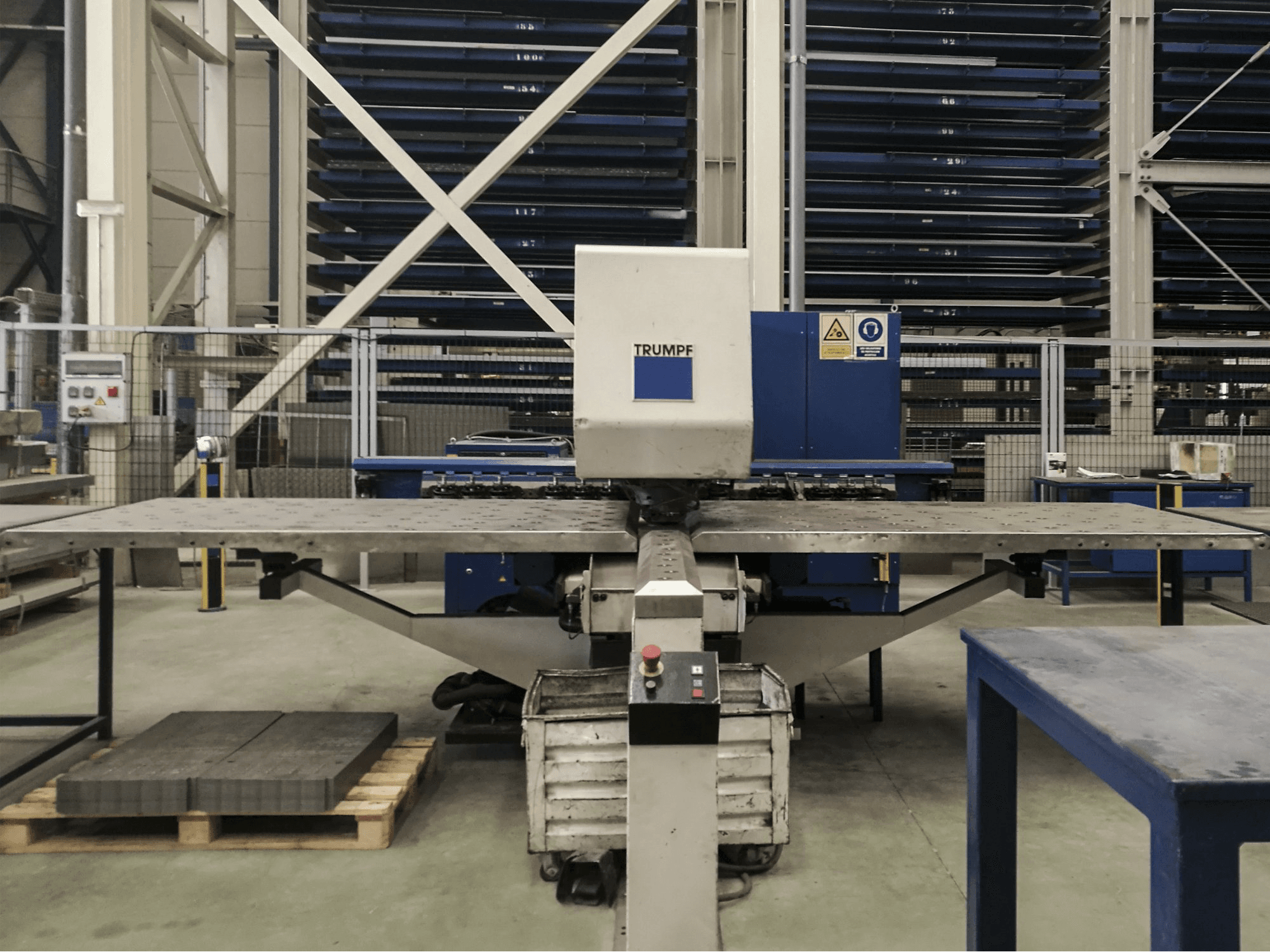

This Trumpf Trumatic 200 Turret Punching Machine was manufactured in the year 2001 in Germany and has a working record of 24998 production hours. Equipped with a Bosch Trumagraph CC220 Control unit, this machine stands out due to its versatility and agility and comes with a wide selection of additional tools. In the past, this unit has mainly processed metal sheets up to 4 mm of thickness.
Overview
- brand: TRUMPF
- year: 2001
- MODEL: Trumatic 200
- production hours: 24998
- application type: Punching
- Location: Spain
- machine type: CNC Punch Press
- control unit brand: BOSCH
Technical Information - TRUMPF Trumatic 200
Control Unit
- Control Brand: BOSCH
- Control Model: Trumagraph CC220
Dimensions
- Machine Depth: 2670 mm
- Machine Height: 2080 mm
- Machine Weight: 8000 kg
Movement
- X-axis Travel: 2070 mm
- Y-axis Travel: 1280 mm
Technical Specification
- Max. Sheet Thickness: 6.4 mm
- Punching Force: 165 Kn
Additional Information
Additional equipment
- Tools
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
