Products
Sheet Metal Machinery

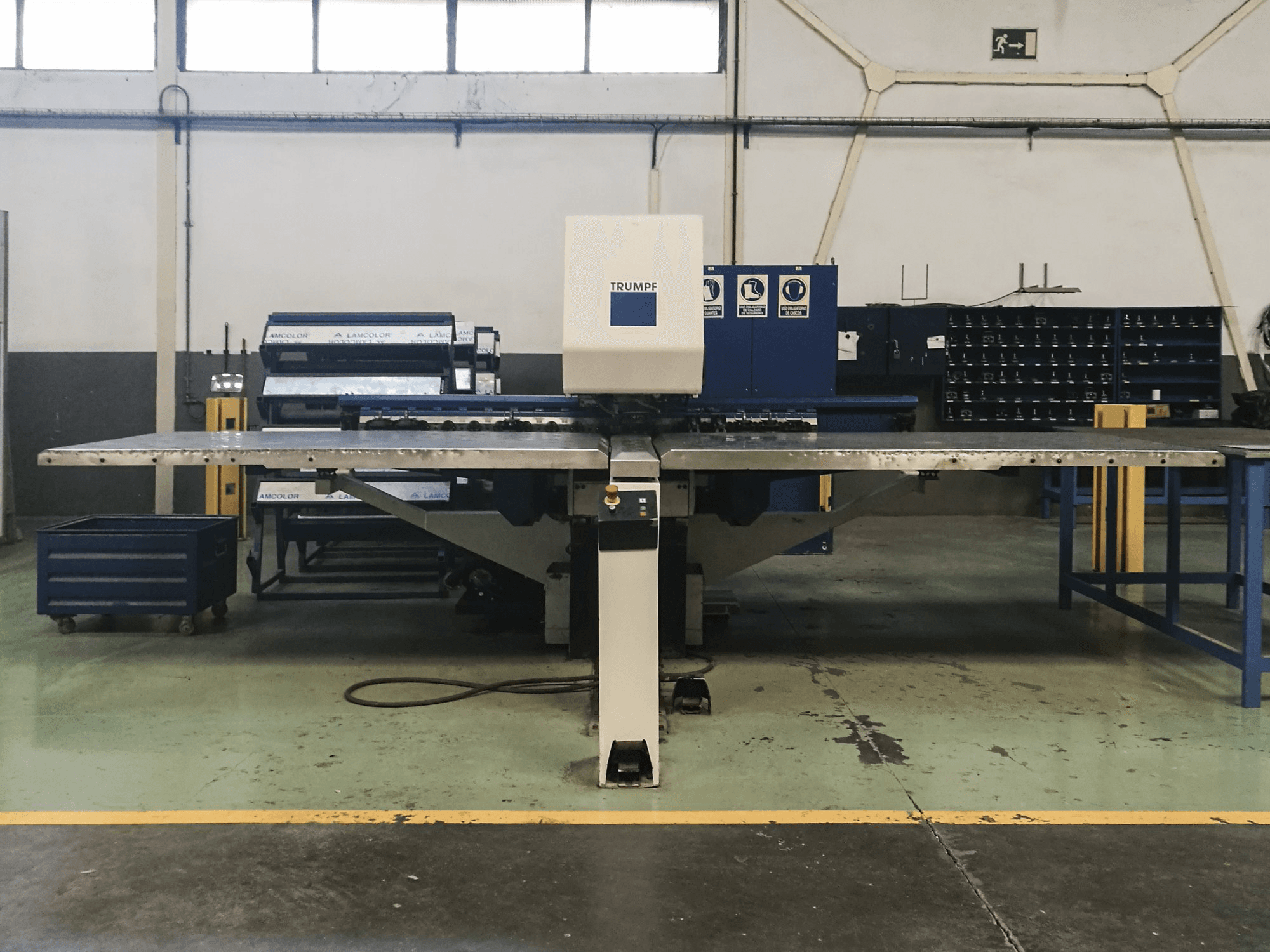

Trumpf Trumatic 200 Turret Punching Machine

Show in original language

This Trumpf Trumatic 200 Turret Punching Machine was manufactured in the year 1999 in Germany and has a working record of 38551 production hours. Equipped with a Bosch Trumagraph CC220 Control unit, this machine stands out due to its versatility and agility and comes with a selection of additional tools.

Overview

brand: TRUMPF
year: 1999
MODEL: Trumatic 200
production hours: 38551
application type: Bending & Punching
Location: Spain
machine type: CNC Punch Press
availability: Sold
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 200

General Data

Measurements width: 2440 mm
Measurements depth: 2670 mm
Measurements height: 2080 mm
Machine weight: 8000 kg

Control Unit

Model: Trumagraph CC220
Brand: BOSCH

Main drive

Punching force: 165 kN
Maximum sheet thickness: 6.4 mm

Movement

X-AXIS Movement: 2070 mm
Y-AXIS Movement: 1280 mm

Workpiece

Workpiece weight: 150 kg

Table

Max punching diameter: 76.2 mm

Tools

Number of stations: 15+2

Media

Power consumption: 14 kVA
Air pressure: 6 bar

Additional Equipment

- Tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
