TRUMPF - TruLaser Cell 7040HU-CUT-TRU-2015-00001

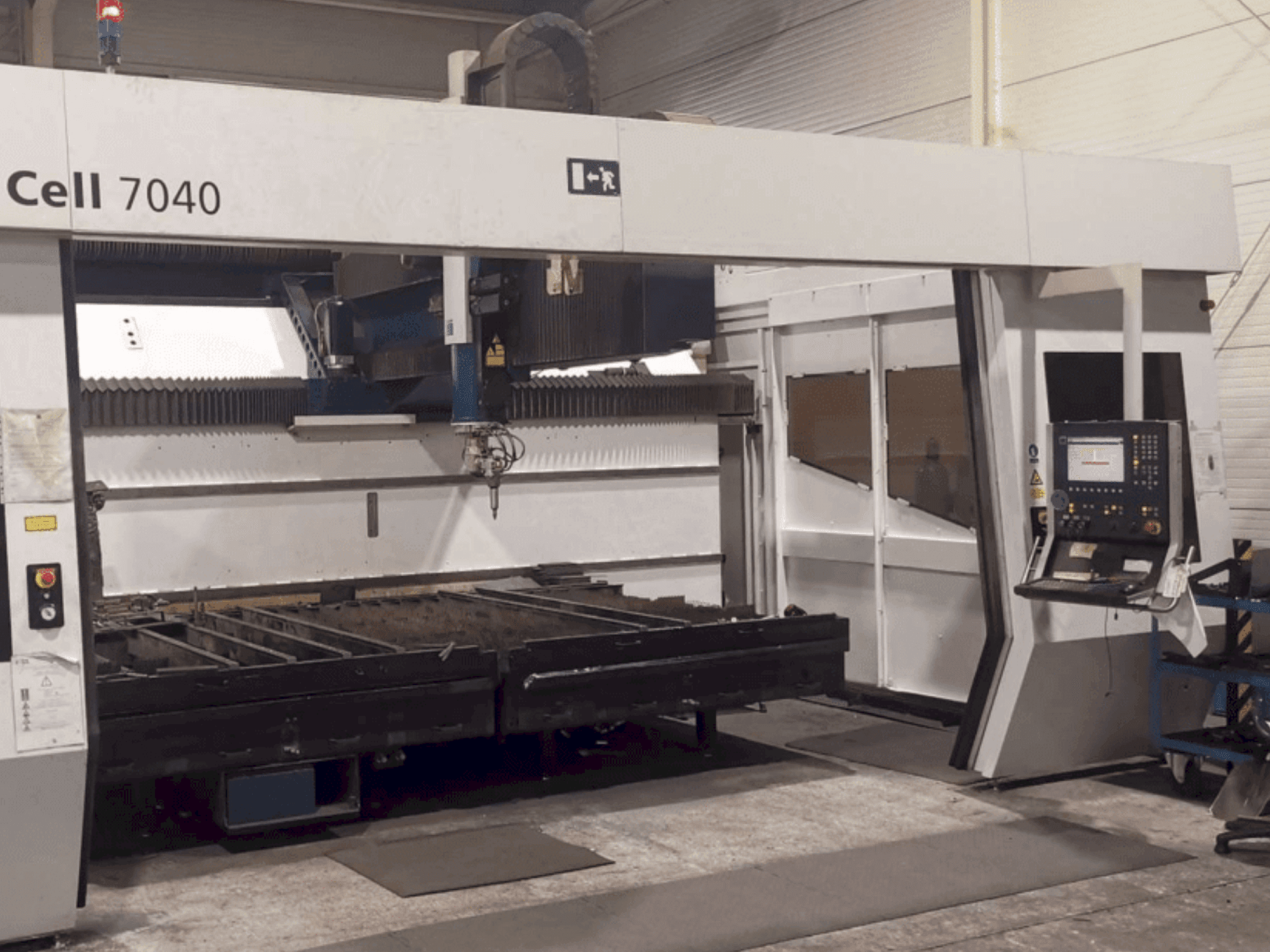

Name: TRUMPF TruLaser Cell 7040
Brand: TRUMPF
SKU: HU-CUT-TRU-2015-00001
Price: 170000 EUR
Availability: InStock

170,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used TRUMPF TruLaser Cell 7040 For Sale | gindumac.com

Show in original language

This TRUMPF TruLaser Cell 7040 was manufactured in 2015. It features a large working range with dimensions of 4000x2000 mm and a Z-axis height of 750 mm. Equipped with a powerful TruFlow 4000 Watt CO2 laser, it excels in both thin and thick material cutting. Additional features include CNC automatic scanning, height detection, and a Siemens 840D control system. Consider the opportunity to buy this TRUMPF TruLaser Cell 7040 CO2 laser cutting machine. Contact us for more information.

Overview

brand: TRUMPF
year: 2015
MODEL: TruLaser Cell 7040
application type: Cutting
Location: Hungary
machine type: CO2 Laser Cutting Machine
availability: Immediately
control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser Cell 7040

Control Unit

Brand: SIEMENS
Model: 840D

Additional Equipment

- HERDING Fume extraction in working area: 2000 Nm3/h
- Cooling unit
- Automatic sliding door "CE"
- Automatic two-level redundant working range protection "CE"

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Cnc automatic workpiece scanning
- - Cnc automatic height detection
- - Table for laser cutting: 4000x2000 mm
- - Laser source: truflow 4000 watt (co2)
- - Dynamic optics for thin materials focus distance: 155 mm
- - Dynamic optics for thick materials focus distance: 240 mm
- - Optics calibration device

Extra information

- Working range X: 4000 mm Working range Y: 2000 mm Working range Z: 750 mm 3D cutting head B = 135°, C = n x 360° Partition wall for 2 side operation CE certification 3D Programming Module TruTops Cell Automatic Laser status indicator light

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
