➤ Used Trumpf Trulaser 3030 - 2007 - Laser Cutting Machine for sale | gindumac.com

Show in original language

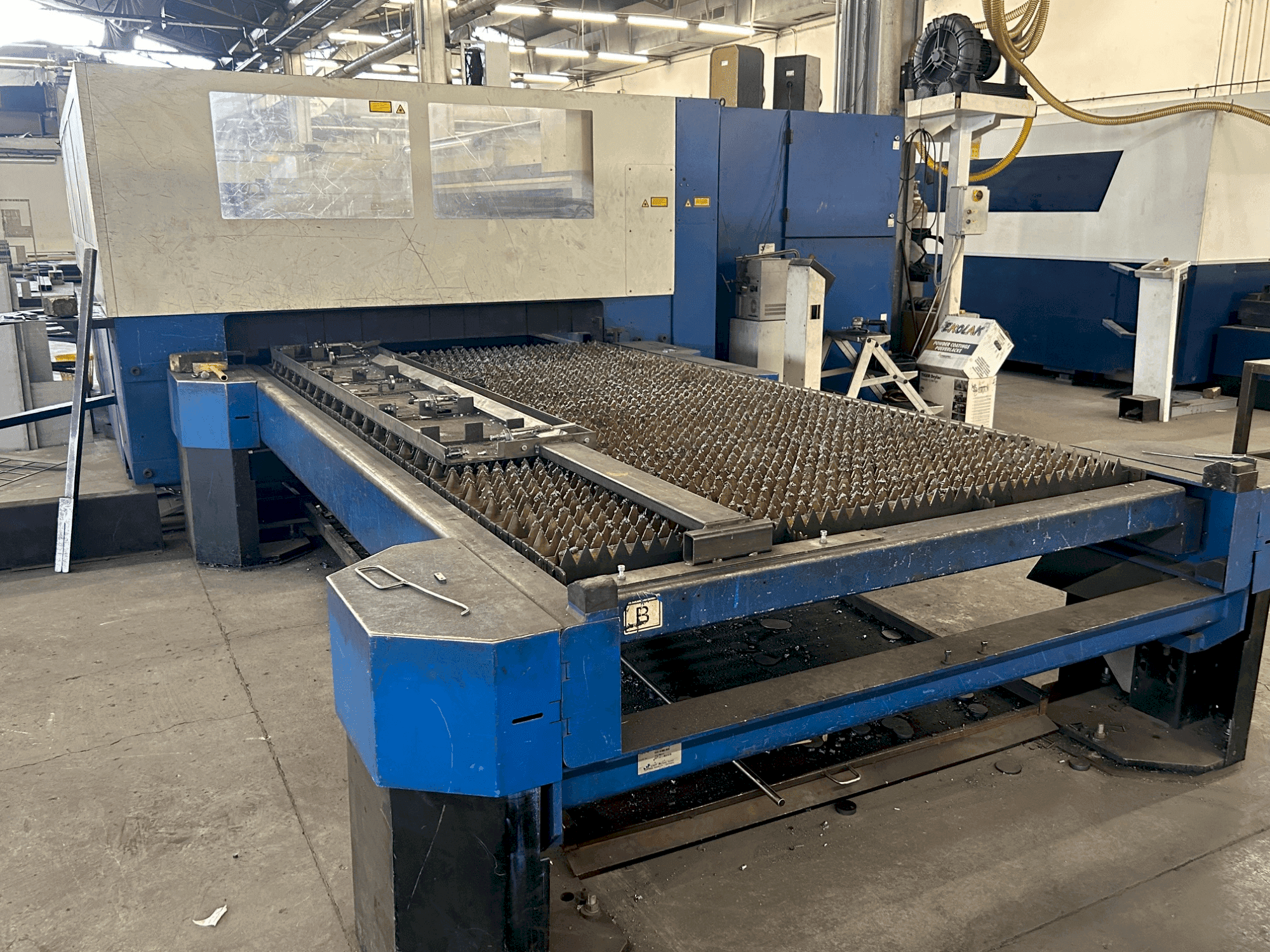

This TRUMPF trulaser 3030 laser cutting machine was manufactured in 2007. It offers a consistent laser power of 3200 W with the ability to handle cutting thicknesses up to 20 mm for steel, and includes efficient waste transportation. The working area spans dimensions of 3000 mm in the X-axis, 1500 mm in the Y-axis, and 115 mm in the Z-axis. The machine also features two interchangeable tables and an additional rotary head for tubes and profiles. For more information about this TRUMPF Trulaser 3030, please reach out to us.

Overview

brand: TRUMPF
year: 2007
MODEL: trulaser 3030
application type: Cutting
Location: Slovenia
machine type: CO2 Laser Cutting Machine
availability: Sold

Technical Information - TRUMPF trulaser 3030

General Data

Machine weight: 11500 kg

Controller

Brand: Siemens
Model: Sinumerik 840D

Main drive

Laserpower: 3200 W KW
Number of axis: 3

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1500 mm
Z-AXIS Movement: 115 mm

Max Material thickness

Steel: 20 mm
Stainless steel: 12mm
Aluminum: 8mm

Additional Equipment

- Two interchangeable tables
- Waste transporter
- Regularly serviced by Mastro
- Additional rotary head for cutting tubes and profiles

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max cutting thickness: 20 mm
- - Laser power during continuous operation: 3200 w
- - Electrical connection: 74 kva
- - Max. Cutting dimension - sheet dimension 3000x1500 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
