TRUMPF - TruLaser 3030 L20PL-LAS-TRU-2012-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery

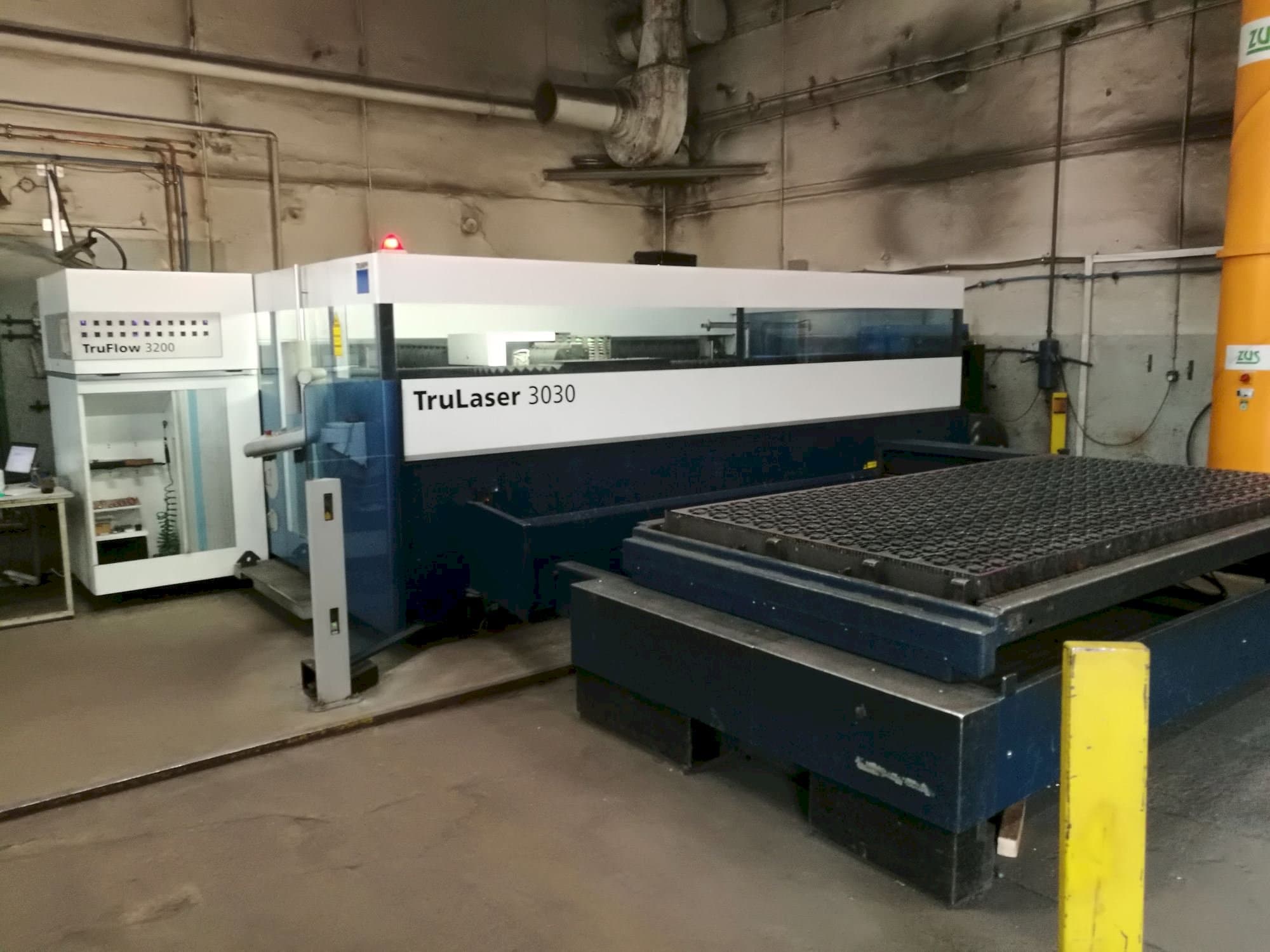

Trumpf TruLaser 3030 L20 Laser Cutting Machine

Show in original language

This Trumpf TruLaser 3030 L20 Laser Cutting Machine was built in the year 2012 and has been working for 20650 hours. Equipped with a SIEMENS Sinumerik 840 FL Control unit, this machine can cut up to 20 mm of steel sheets.

Overview

brand: TRUMPF
year: 2012
MODEL: TruLaser 3030 L20
production hours: 20650
application type: Cutting
Location: Poland
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser 3030 L20

General Data

Measurements width: 7600 mm
Measurements depth: 6500 mm
Measurements height: 2200 mm
Machine weight: 12000 kg

Control Unit

Model: Sinumerik 840 FL
Brand: SIEMENS

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1500 mm
Z-AXIS Movement: 115 mm

Max Material thickness

Steel: 20 mm
Stainless steel: 12 mm

Media

Main electronic connection: 3x400V / 50Hz
Power consumption: 53 kW
Internal cooling: Yes

Additional Equipment

- Pallet changer
- Rotolas system for tubes
- Automatic clamping system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
